Functional Features
- With 3 CAN ports;
- 7-way switch/analog / 4-20MA input, 1 way frequency input, 1 way wake up input, 2 ways camera input (optional, default);
- 5 channels 2A power drive output, 1 excitation output, 1 audio output;

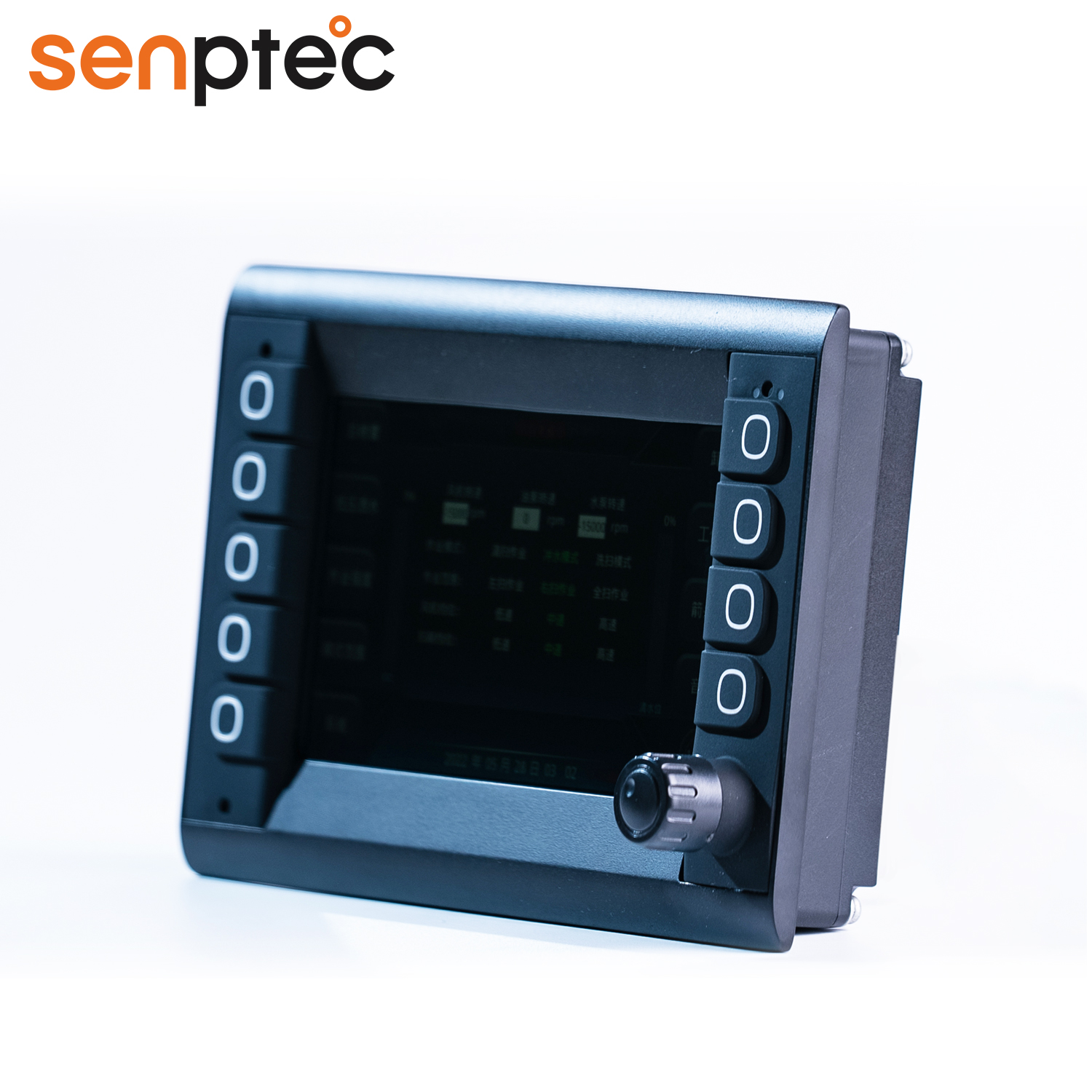

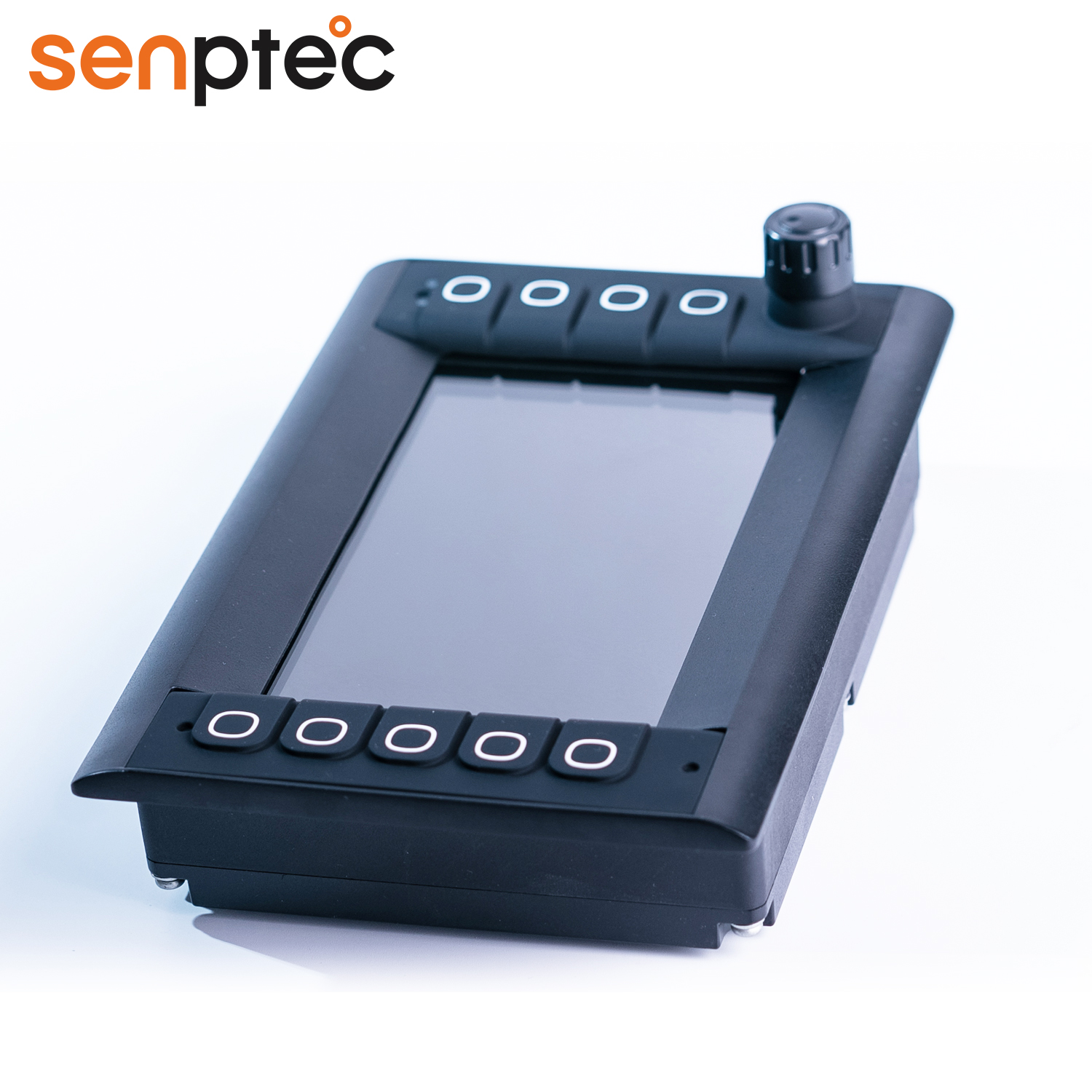

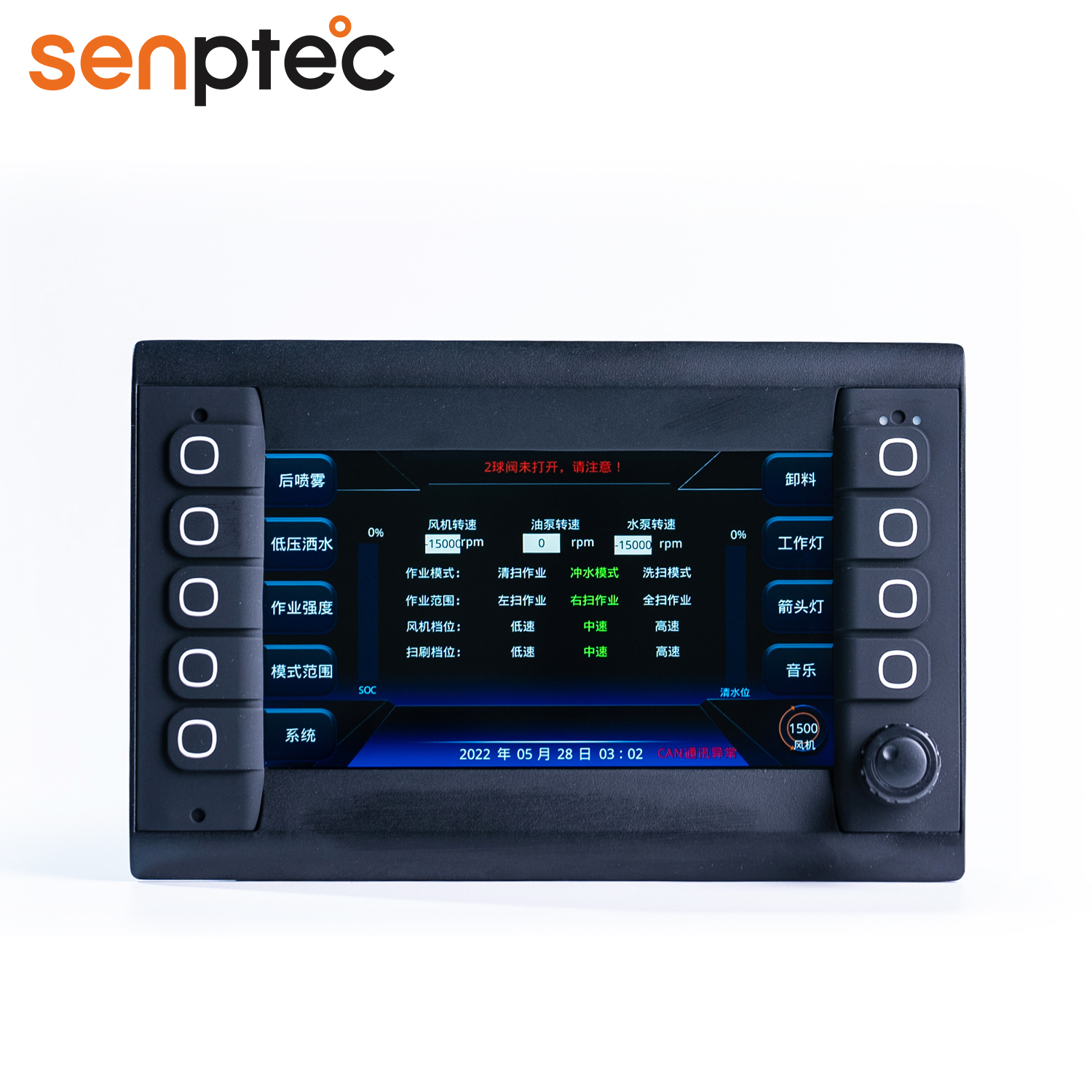

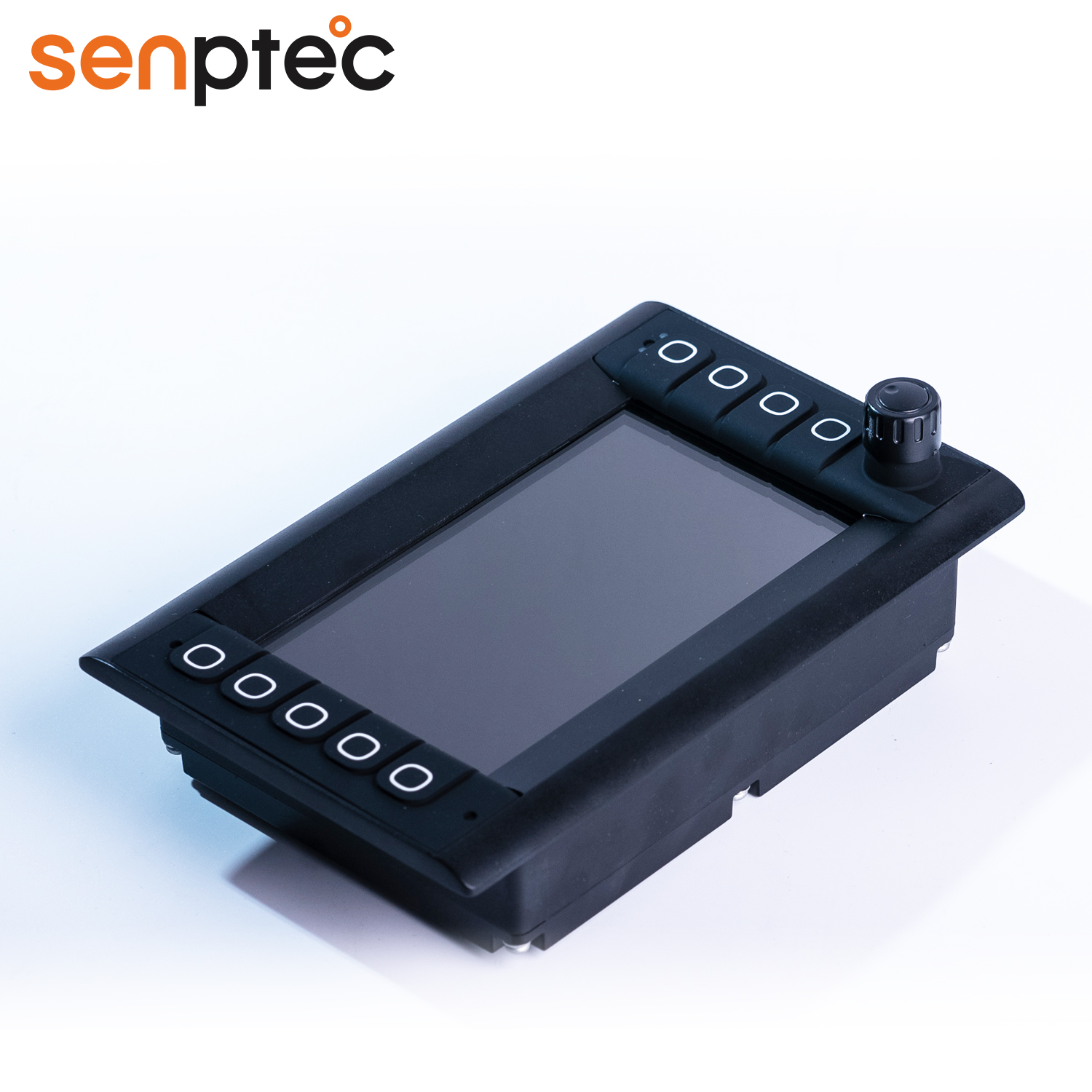

- 7-inch LCD, 154.1*85.9mm, 1024*600 resolution;
- 9 function programmable buttons, 1 function programmable knob, according to the requirements of the software to customize, sensor parameters programmable;
- Conform to the J1939，and the display content can be customized. By default, engine information is displayed.
Typical Applications
- Engineering Machinery, Special Vehicles, Sanitation Equipment, Generator Set, ETC.
- Road and Bridge, Ship, Petroleum(oil), Mining Equipment Industry and Fire Industry, ETC.
