Senptec KP1201 LCD Touchscreen Dashboard

Functionality Overview:

Senptec KP1201 is a 12.3-inch LCD touchscreen that integrates multiple functions, including radio control, vehicle switches, 360-degree display (reverse monitoring), A/C control, vehicle information display, and vehicle diagnostic output. The customizable interface allows for personalized designs.

The dashboard is designed on CANbus communication basis for functional integration. Drivers can interact with the vehicle through the touchscreen, enhancing the overall vehicle experience. It breaks through the traditional instrument panel design, providing strong support for the planning of intelligent driving cabins.

By integrating vehicle diagnostic and operational information, this central control panel also includes diagnostic functions for existing instrument clusters, reducing the workload of instrument display, making them more secure and reliable. It also makes the maintenance of the vehicles much more easier.

Product Advantages:

The Senptec KP1201 touchscreen control panel has made significant improvements in integration, identifiability, and reliability compared to other in-vehicle systems. It’s specific advantages include:

  • Thin design for embedded or suspended installation, simplifying structural design.
  • High-definition LCD screen with independent 2D graphics acceleration engine + independent 3D graphics acceleration engine, meeting top European and American standards in overall display performance (resolution, color gamut, color depth, brightness, refresh rate, layers, etc.), adaptable to various working conditions.
  • High-precision capacitive touchscreen for more sensitive operation perception.
  • Operating system compliant with functional safety standards, with a functional safety level of up to IEC 61508 SIL4, ISO 26262 ASIL D.
  • Integrated video input and output interfaces for easy video monitoring integration and storage.
  • Fully independent forward research and development, with deep understanding of resources, performance, hardware, operating systems, code, user interfaces, and structures, resulting in fast response, short update cycles.

Product Specifications:


Dimensions: 330x150x35 mm

Resolution: 1920*720

Maximum Brightness: 1000 cd/m²

Contrast Ratio: 1000:1

Operating Voltage: 16~36V

Operating Temperature: -30~85℃

Operating System: Compliant with functional safety standards:

IEC 61508 SIL4

ISO 26262 ASIL D

Installation Method: Both embedded and suspended installations are available.

Video Interface: 4 inputs, 1 output

Detailed Functions:


Vehicle Switches: Switch functions can be adjusted according to actual vehicle design.

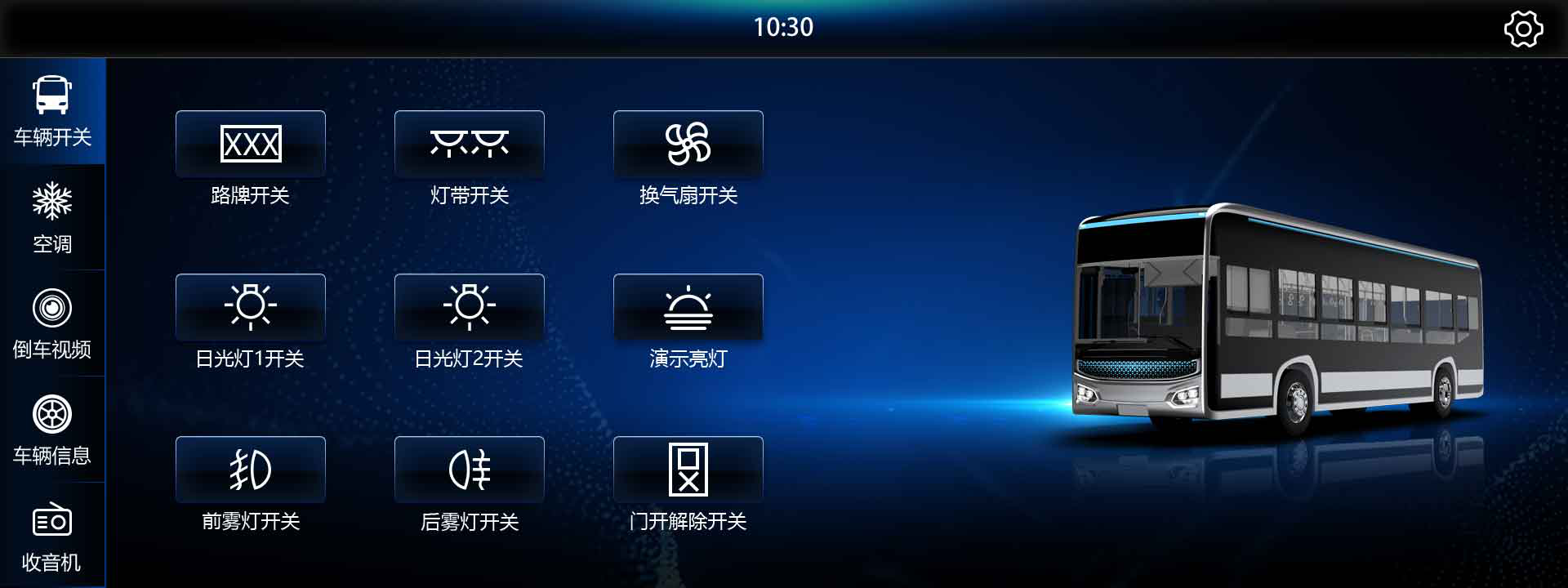

Senptec 12 inch dashboard panel - menu list
Senptec 12 inch dashboard panel – menu list

Air Conditioning Interface: Planned functions include air conditioning switch, fan speed adjustment, temperature adjustment, mode selection, fresh air, defrosting, etc. Common air conditioning functions on coaches can be realized.

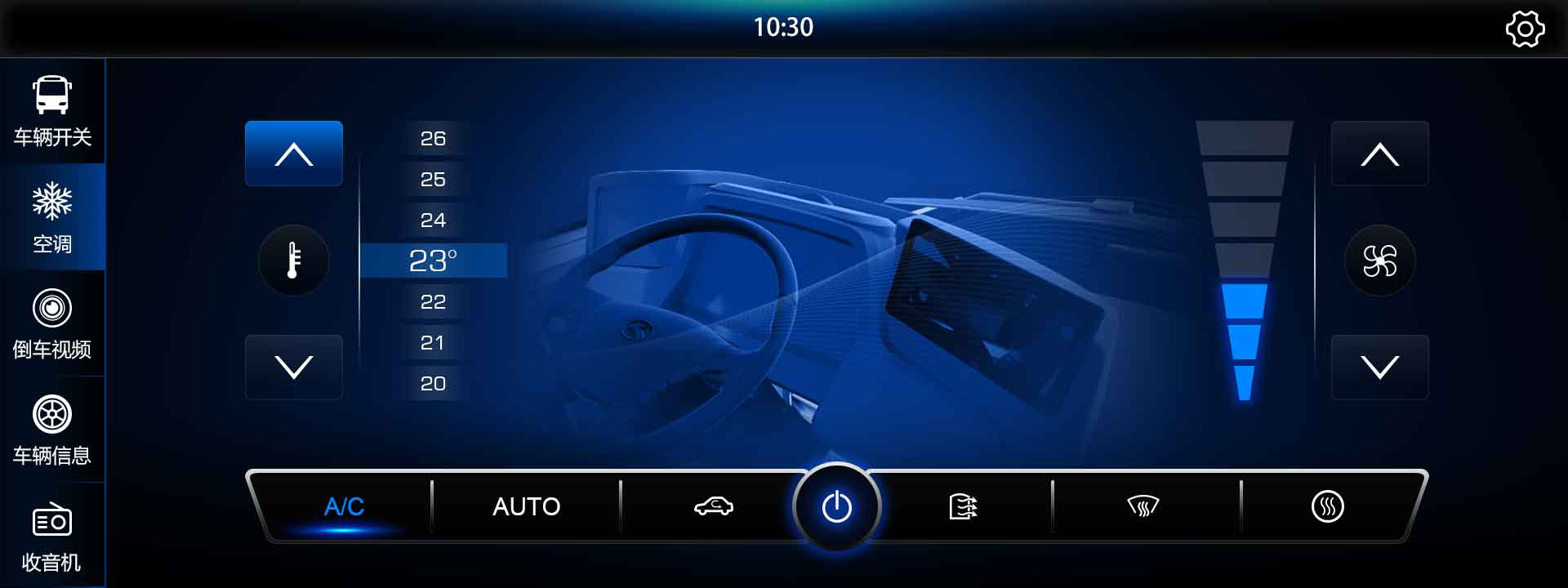

Senptec KP1201 Dashboard AC setting
Senptec KP1201 Dashboard AC setting

Reverse Monitoring: During actual vehicle design, the left video can be connected to the reverse and center door video composite signal, and the right video can be connected to the ADAS front collision warning video signal. Video Trigger: When the reverse or center door signal is received, the host will automatically switch to this screen. After the signal disappears, it will switch back to the original page.

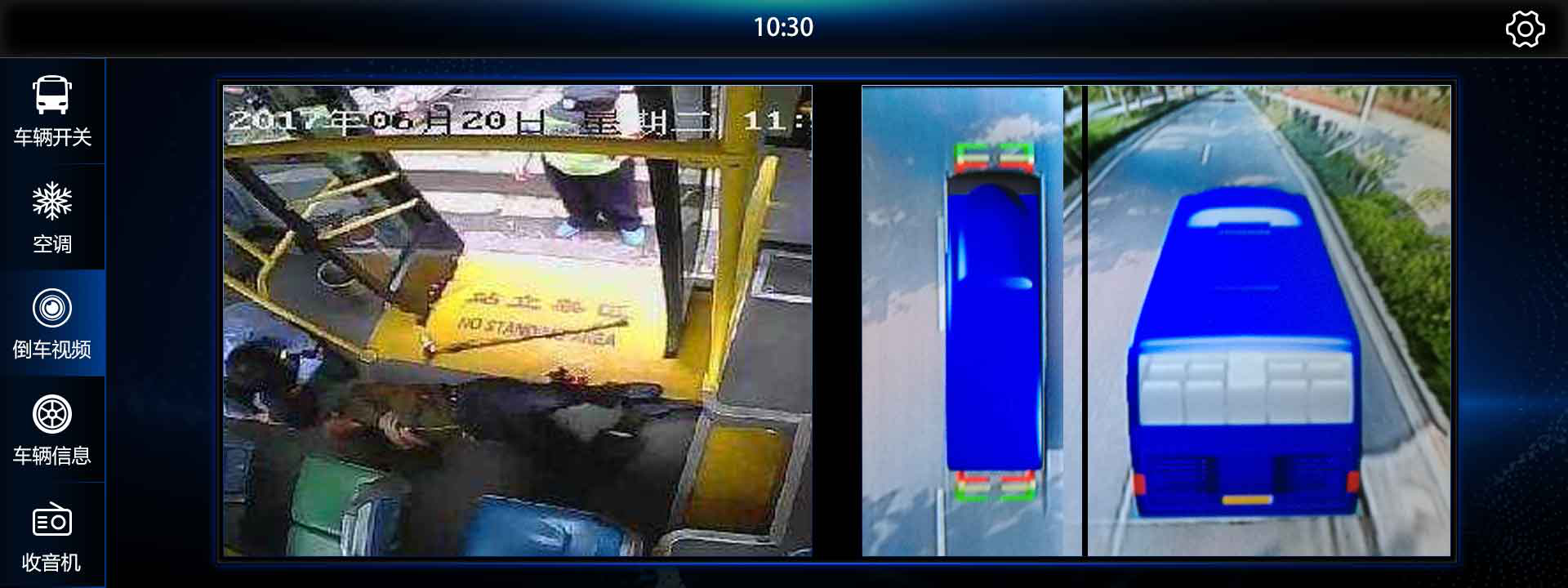

Senptec KP1201 Dashboard reversing monitoring
Senptec KP1201 Dashboard reversing monitoring

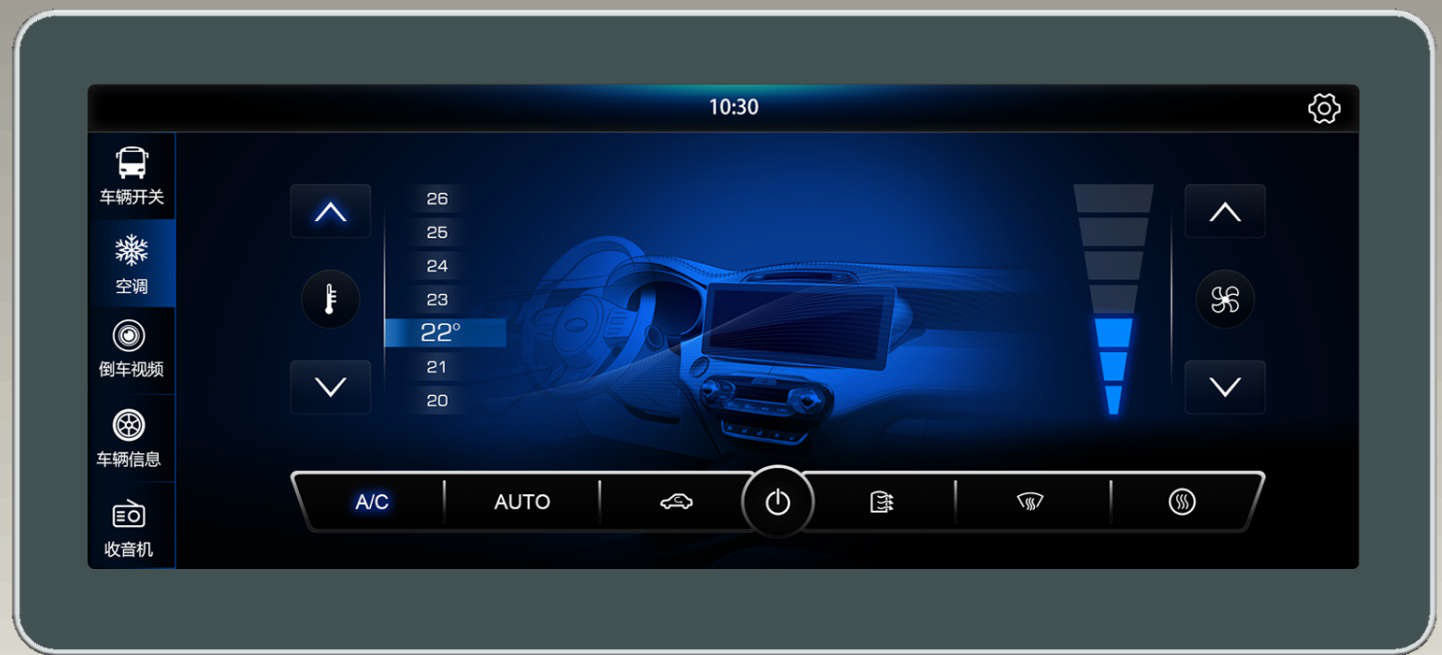

Senptec KP1201 Dashboard panel
Senptec KP1201 Dashboard panel

Vehicle Information: After the driver discovers the vehicle alarm information, the page can be switched to the vehicle information page to view the specific content of the vehicle information. During routine vehicle maintenance, the vehicle’s operating status can also be queried through this page.

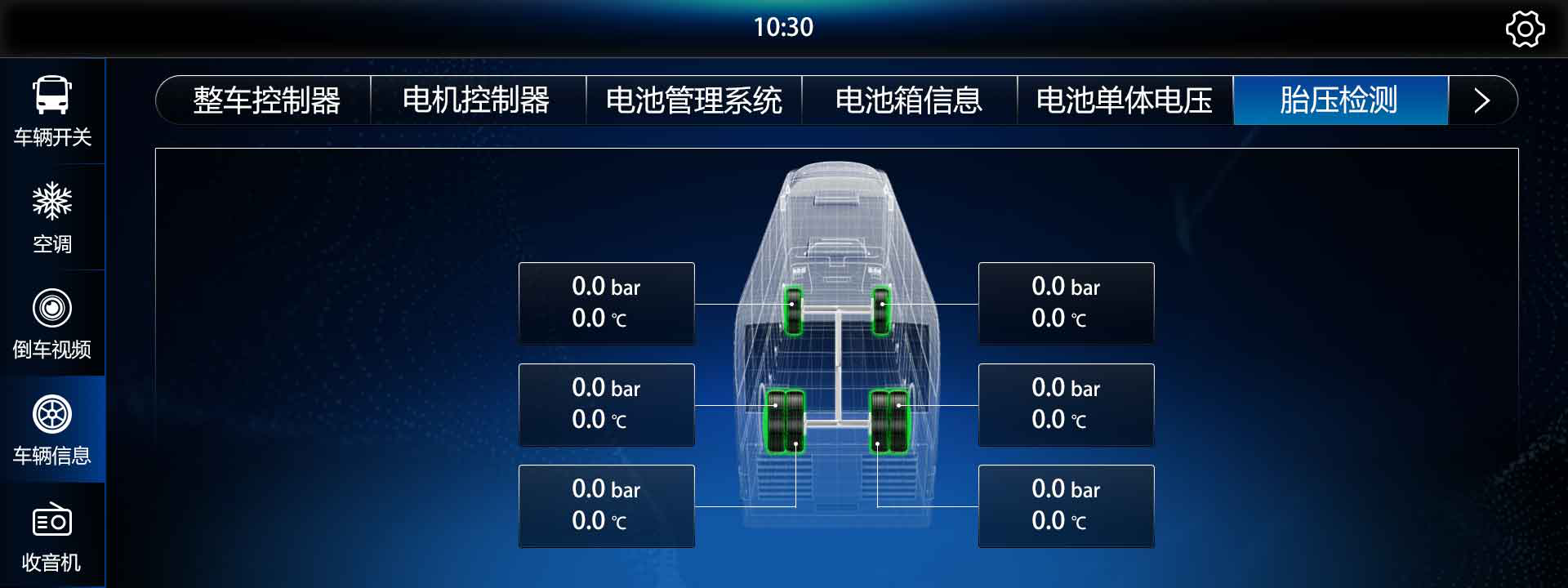

Senptec KP1201 intrument dash panel
Senptec KP1201 intrument dash panel

Senptec KP1201 Dashboard Control Panel is a groundbreaking solution that redefines the standard for commercial vehicle control systems. With its advanced features, customizable interface, and robust performance, it is set to revolutionize the driving experience for both drivers and passengers, which has been widely loaded by Yutong, BYD, ANKAI, King Long, CRRC and many other brand OEMs for bus and coach, public transportation, urban and intercity mobility.
