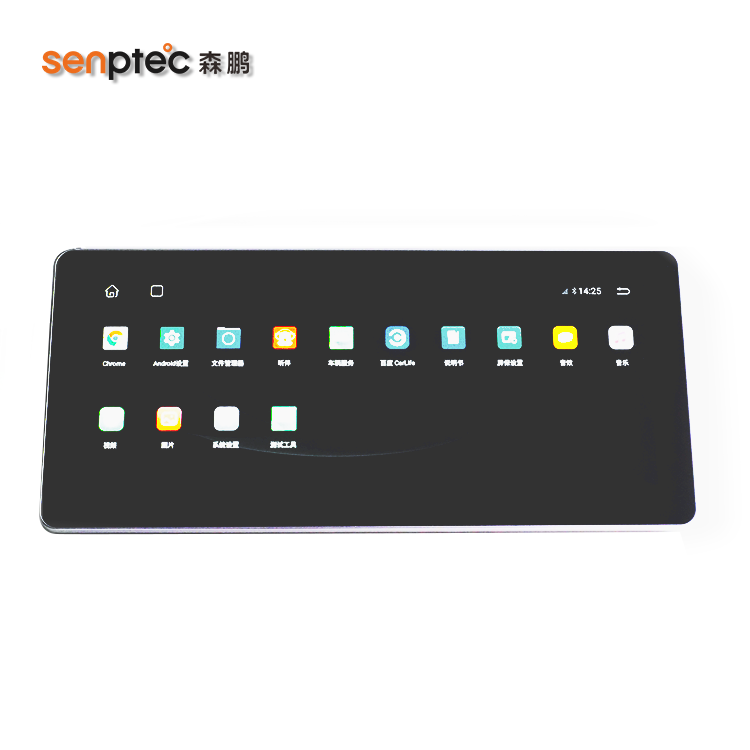

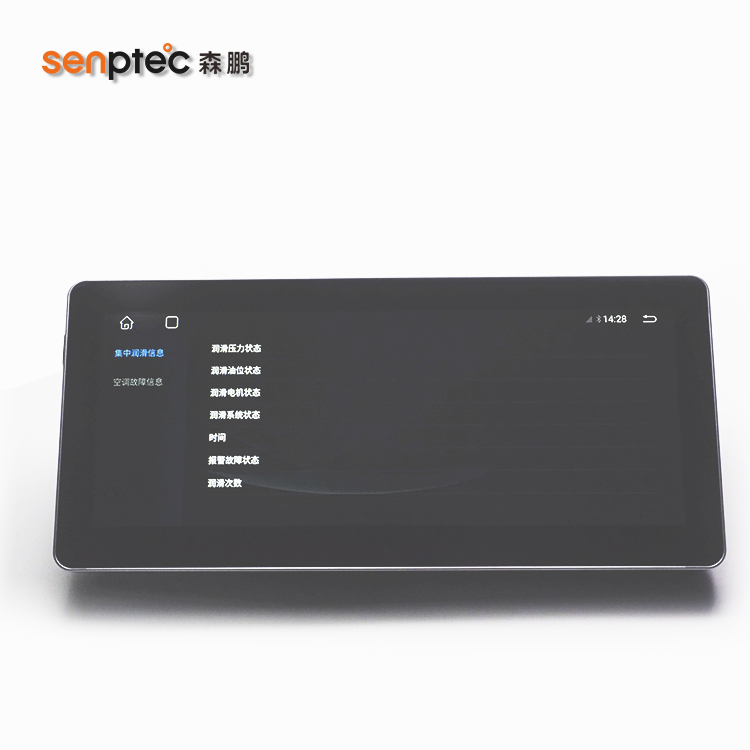

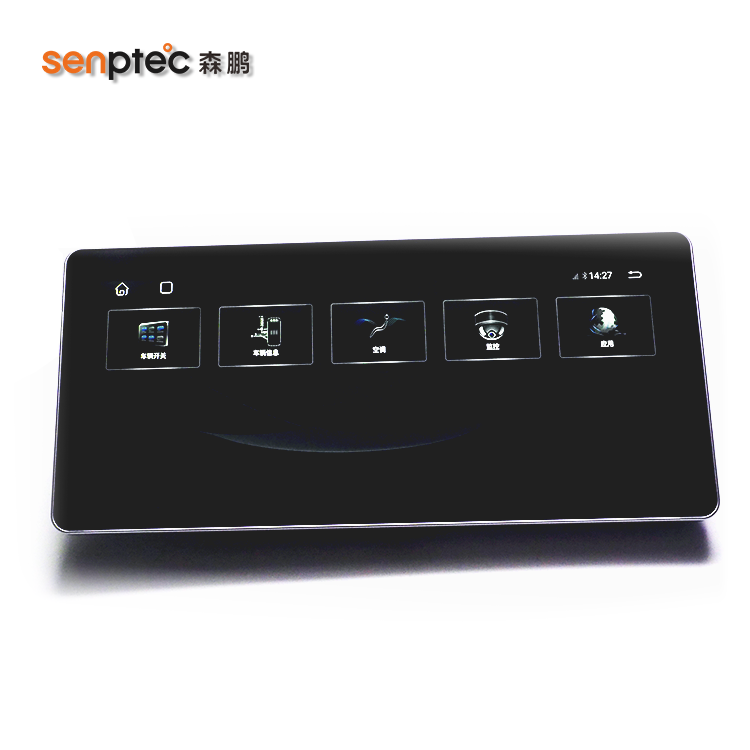

Senptec Android Control Panel KP1203

KP1203 is an android control screen



KP1203 Control Panel adopts a 12.3 inch android control screen with entertainment function, it consists of high resolution 12.3 inch LCD touchscreen and centre control console, which integrates function of 360-view, mobile communication, navigation, Bluetooth, WIFI, radio, and CAN communication.

Application senarios: bus and coaches, public transportation, road and off-highway vehicles, etc.

Get A Quote
Contact Us

Advantages

12.3 inch TFT

Android 9.0

Dedicated graphics/video processor allowing 8 channel real time video display

Navigation, Video

Integrated 360 Around View Mainframe

Compliant with SAE J1939

CAN protocol conmmunication

Parameters

Supply Voltage DC24V(18~32V)
Operating temperature -30℃~75℃
Resolution ratio 1920*720
Storage LPDDR3+FLASH
OS Android 9.0
Communication USB  ESim, WIFI, BT2.1, USB2.0
Video Input 8 channel(Video format:CVBS/AHD)
Audio Output 4*25W
CAN interface 1 channel

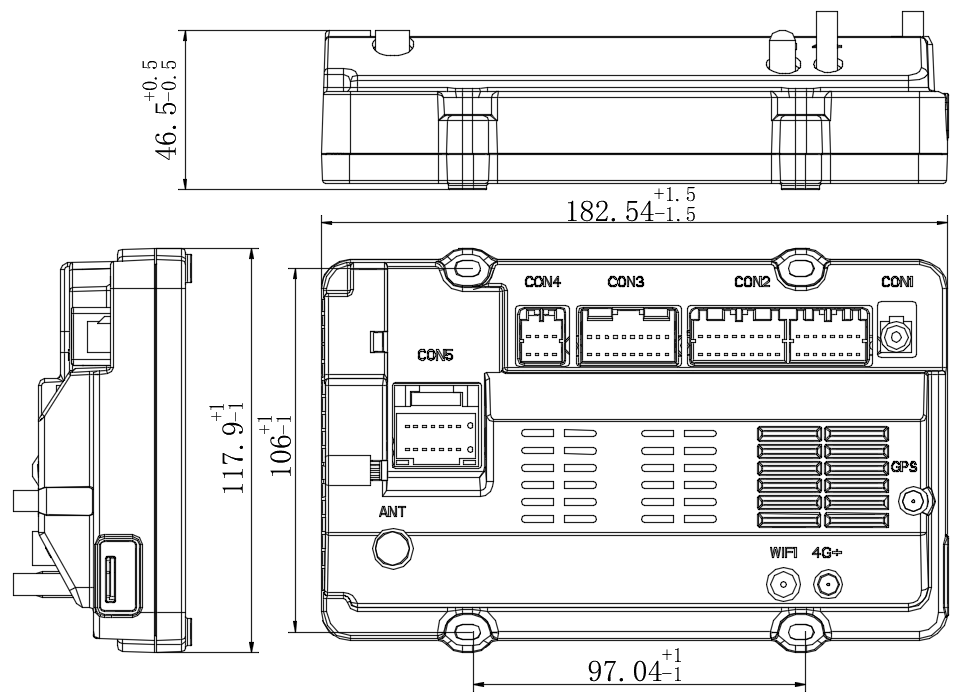

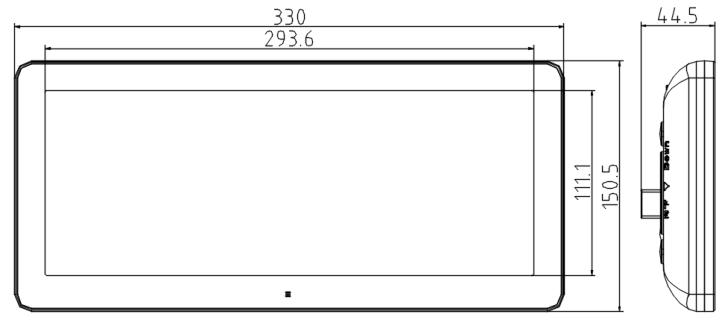

Dimensions

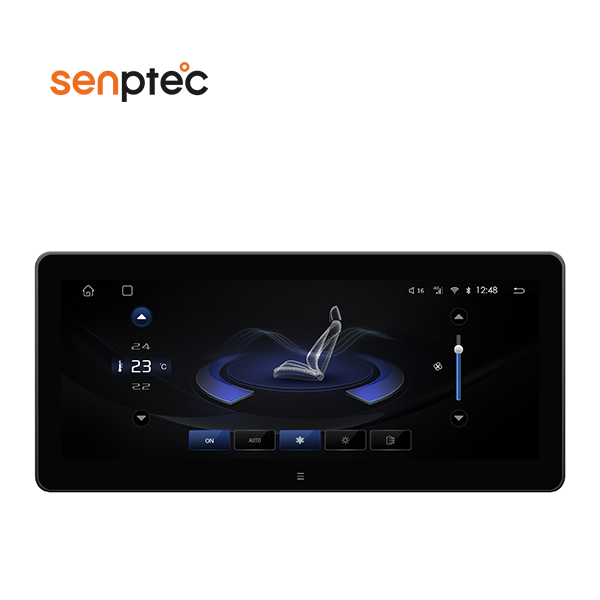

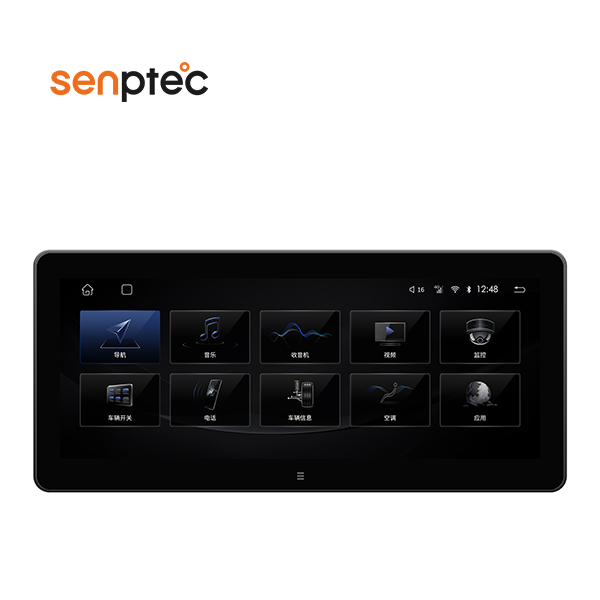

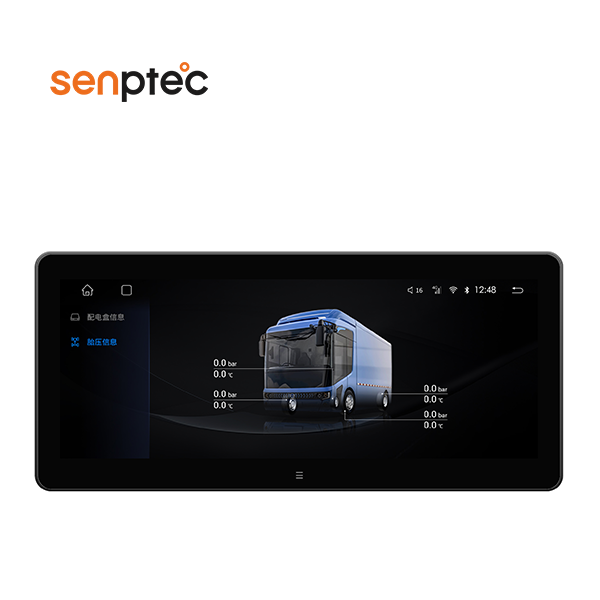

12.3’inch Android Control Panel KP1203
12.3’inch Android Control Panel KP1203
12.3’inch Android Control PanelKP1203
12.3’inch Android Control PanelKP1203
