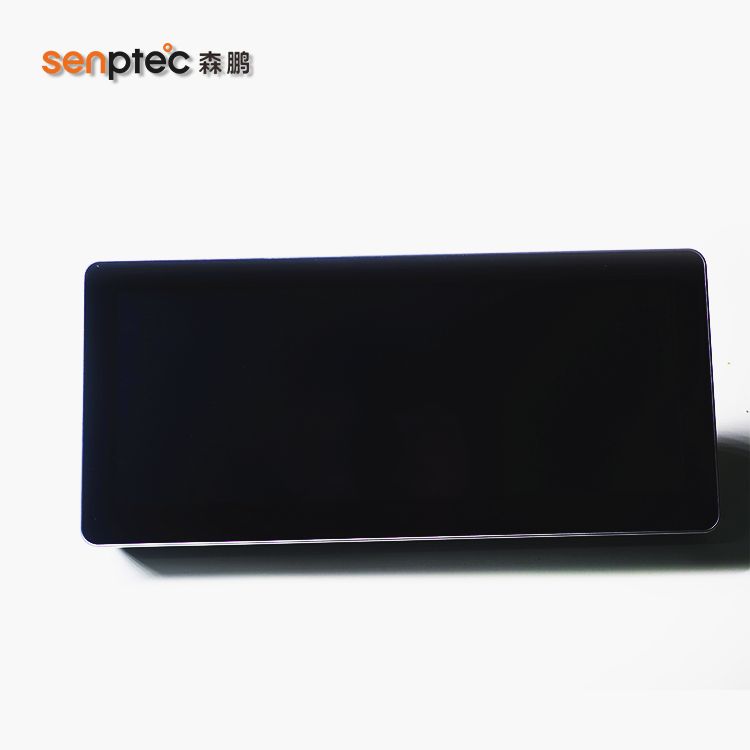

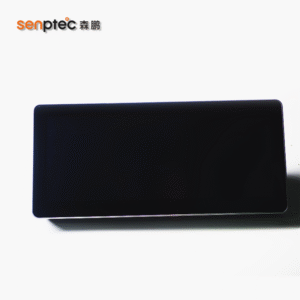

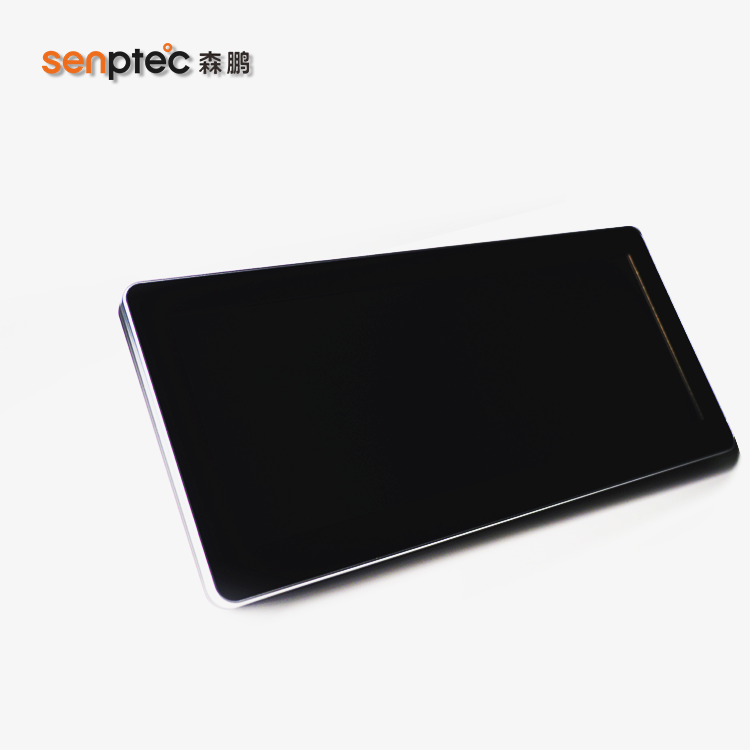

Senptec Center Console Dashboard KP1201

KP1201 greatly optimized the dashboard panel

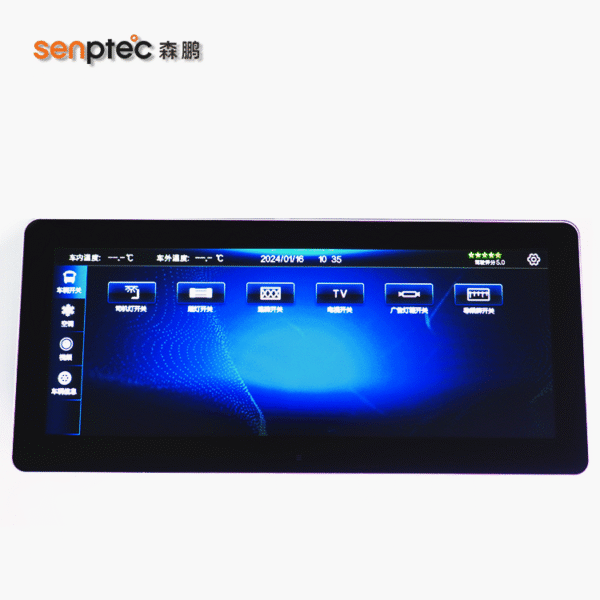

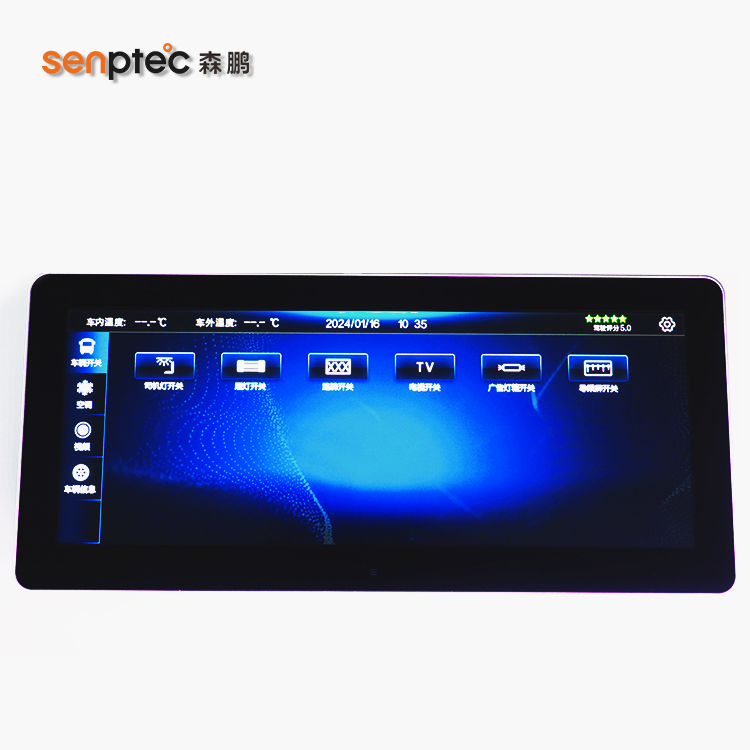

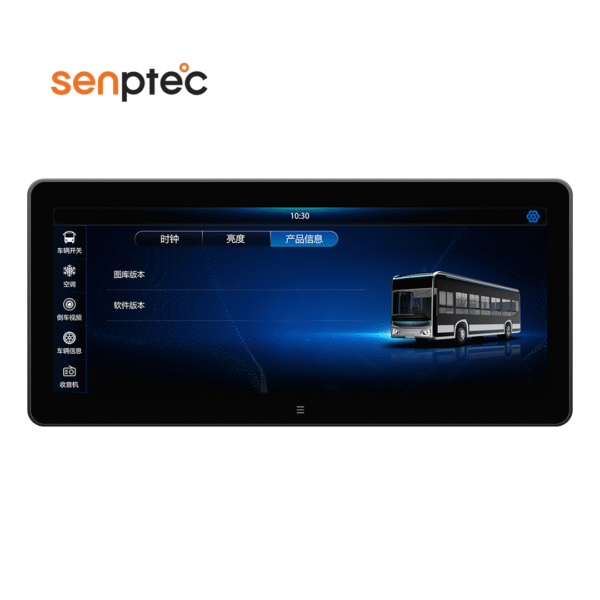

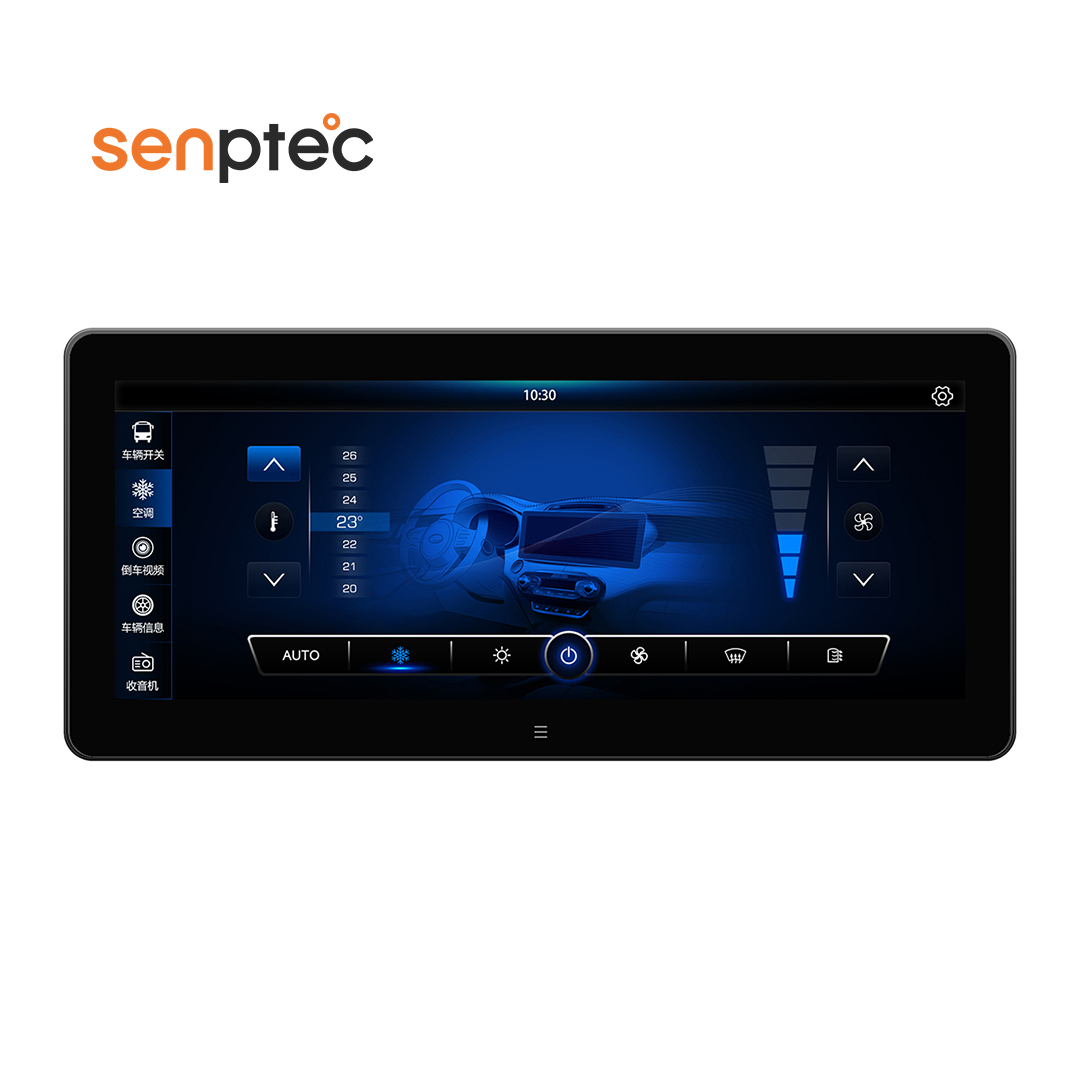

By adopting 12.3-inch display and touchscreen design (such as air conditioning, Tyre pressure monitoring, door camera, reversing camera, etc.), and it effectively integrating the information that drivers are concerned about, guiding drivers to focus on safe driving.

Application senarios: bus and coaches, public transportation, road and off-highway vehicles, etc.

Get A Quote
Contact Us

Advantages

12.3 inch TFT

Dedicated graphics/video processor allowing 4 channel real time video display

Highly customized platform

Compliant with SAE J1939

CAN protocol conmmunication

E-MARK R10 approved

Parameters

Dimensions 330L*150W*33H mm
Supply Voltage DC18~32V
Operating temperature -30℃~75℃
resolution ratio 1920*720
Static Current <2mA
OS ET-kernel
Video Input CVBS/AHD/LVDS
4 channel(Video format:CVBS/AHD/LVDS)
Video Output 1 channel(CVBS)
CAN interface 2 channel

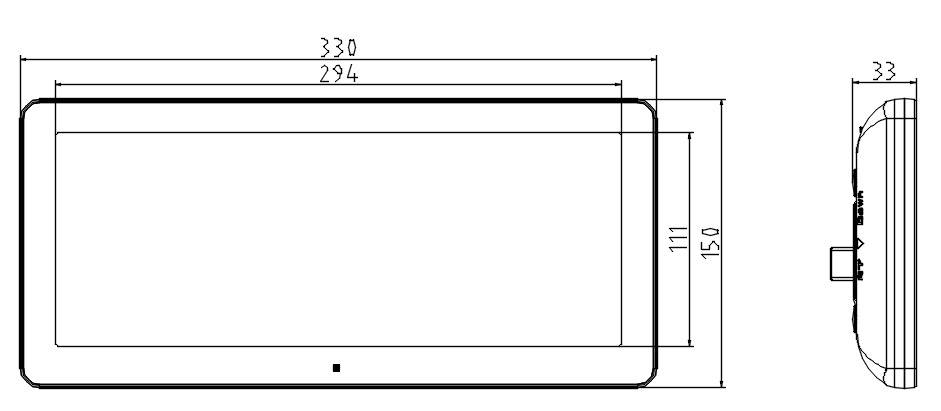

Dimensions

12.3’inch Control Panel KP1201
12.3’inch Control Panel KP1201
