Senptec Touchscreen display KP1202

KP1202 is an 12.3 inch touchscreen control panel



It greatly optimized the dashboard panel by adopting 12.3-inch display and touchscreen design, integrated 360 degree surrounding view (such as air conditioning, Tyre pressure monitoring, door camera, reversing camera, etc.), and meanwhile, it effectively integrating the information that drivers are concerned about, guiding drivers to focus on safe driving.

Application senarios: bus and coaches, public transportation, road and off-highway vehicles, etc.

Get A Quote
Contact Us

Advantages

12.3 inch TFT

Dedicated graphics/video processor allowing 4 channel real time video display

Integrated 360 Around View Mainframe

Highly customized and open source platform

Compliant with SAE J1939

CAN protocol conmmunication

E-MARK R10 approved

Parameters

Dimensions 340L*148W*46.2H mm
Supply Voltage DC18~32V
Operating temperature -30℃~75℃
Resolution ratio 1920*720
Static Current <2mA
OS Miranda
 Video Input 4 channel 1280x720P and 2 channel AHD/CVBS
Video Output 1 channel(CVBS)
CAN interface 2 channel

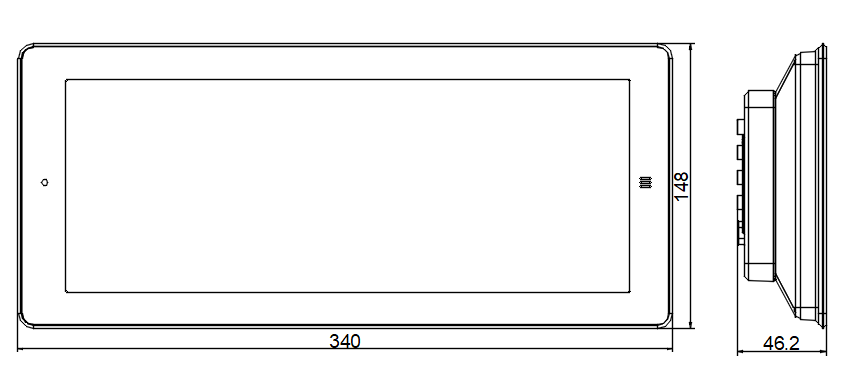

Dimensions

12.3’inch Control Panel KP1202
12.3’inch Control Panel KP1202
