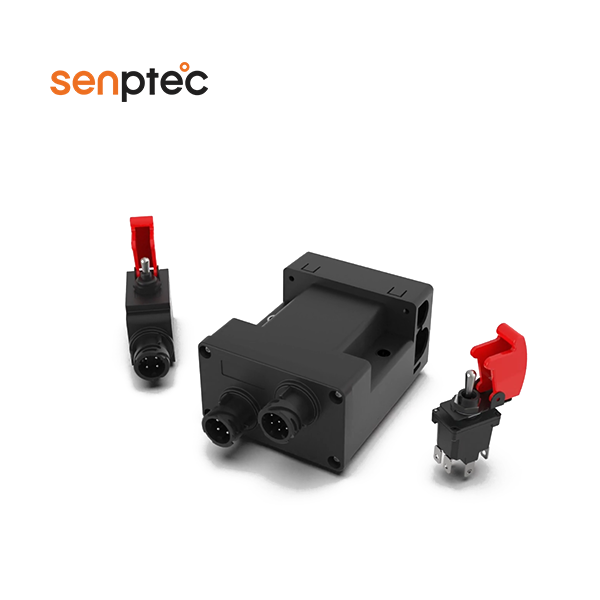

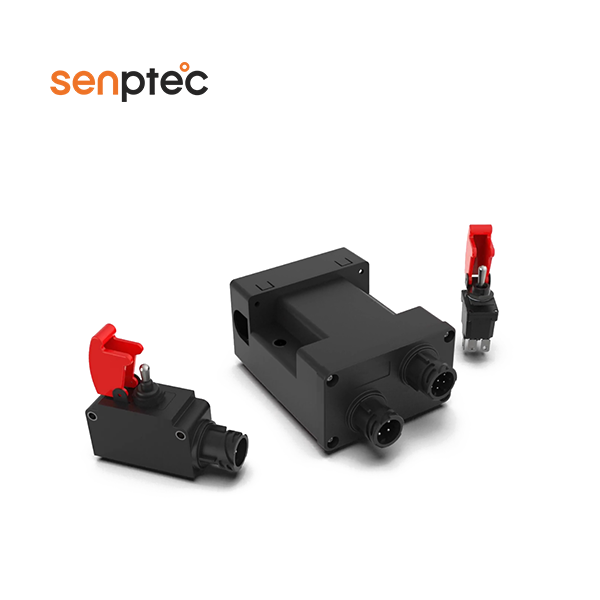

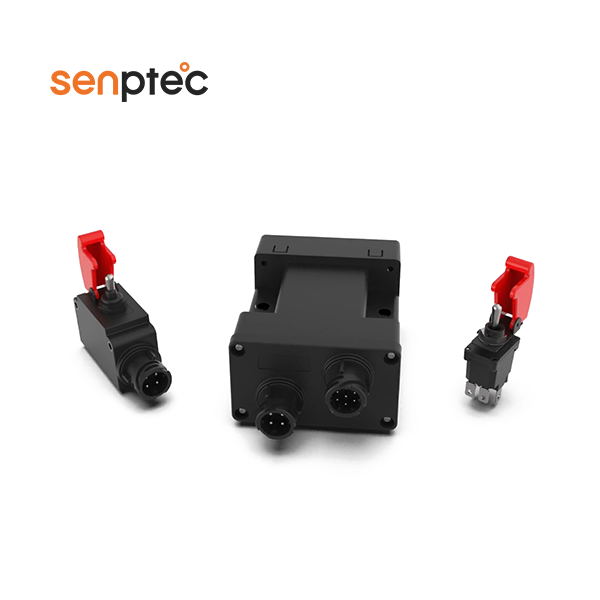

Senptec ADR Switch KM0301

The KM0301 is an ADR emergency power switch that conform to EU ADR2015, con-fig double-stable relays, does not require any additional relays, and provides 2 emergency switches that meet ADR requirements for additional power output.

Application scenario: Public transportation, coaches and buses, construction vehicles, varies road and off-road vehicles.

Get A Quote
Contact Us

Advantages

Comply with European ADR2015 requirements

Internally integrated bistable relay,don’t need additional relay

Provide two emergency switches that meet ADR requirements

Provides additional power output

Parameters

Dimensions151*91*60mm
Voltage RangeDC1832V
Operating temperature-40~+85
Static Current3mA
Contact duty rating300A
Contact load2400A 1s / 600A 20s
Terminal materialCu Sn
Contact life at nominal voltageohmic50 000 cycles
Mechanical life100 000 cycles
Protection degreeIP69K

Dimensions

KP0301 ADR Switch
KP0301 ADR Switch
