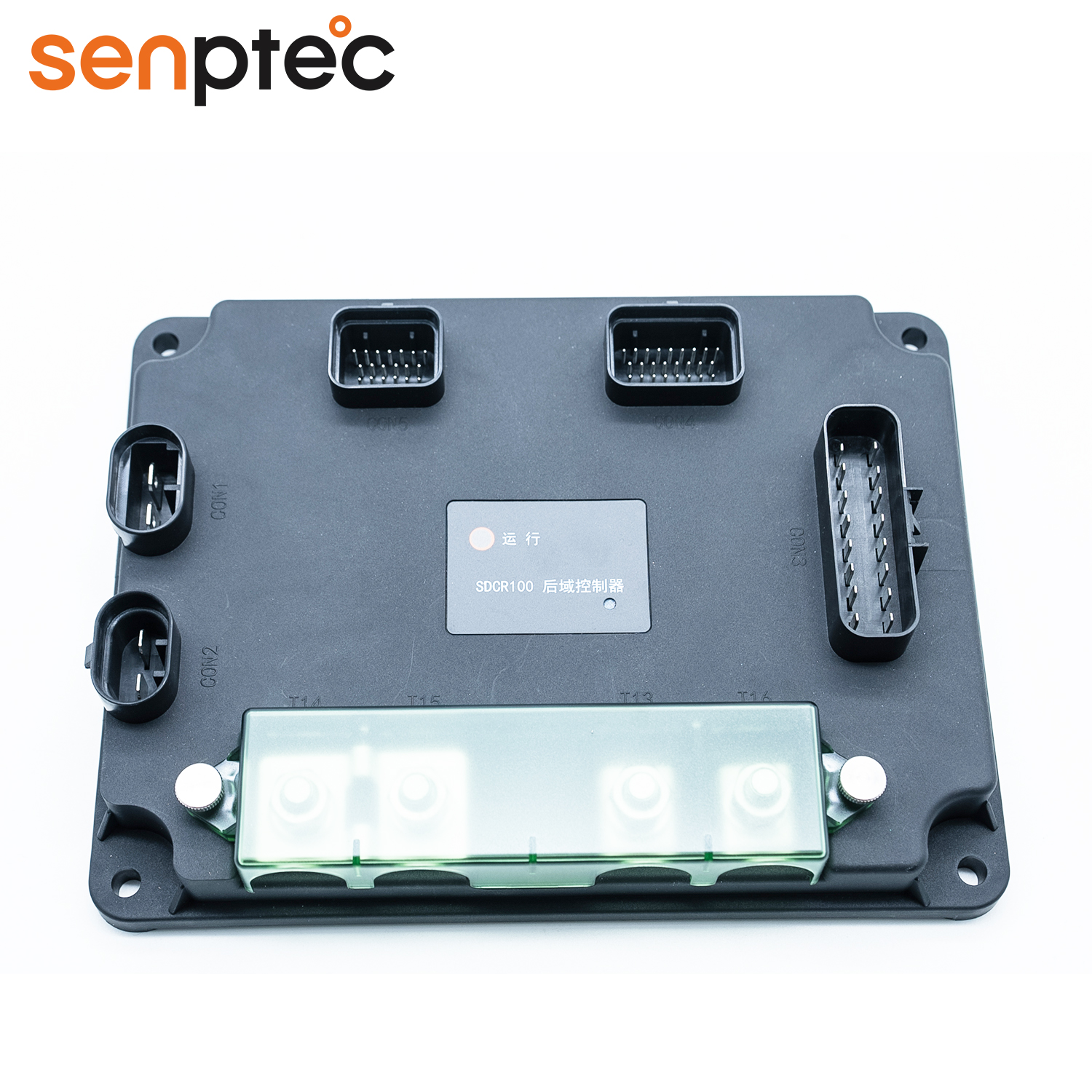

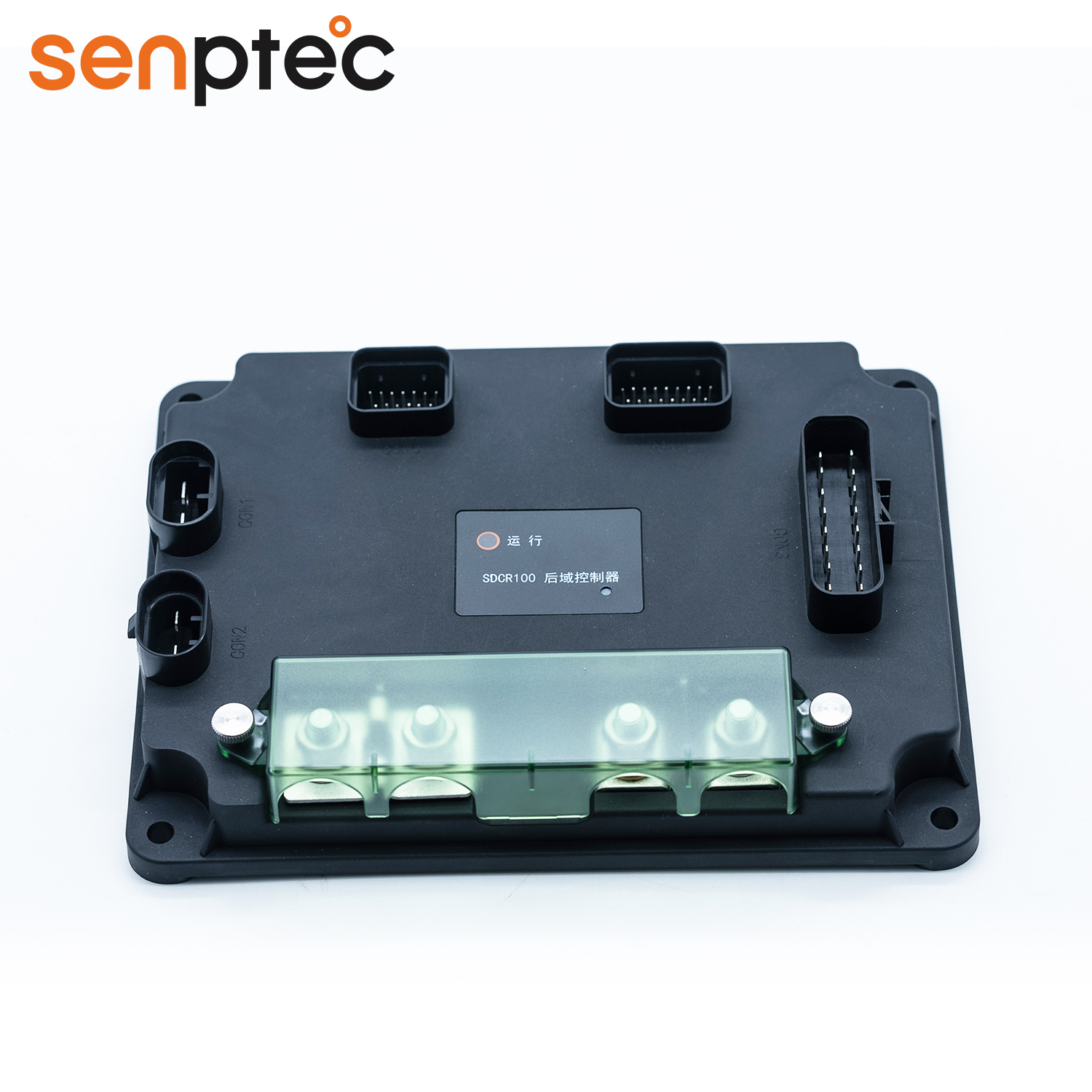

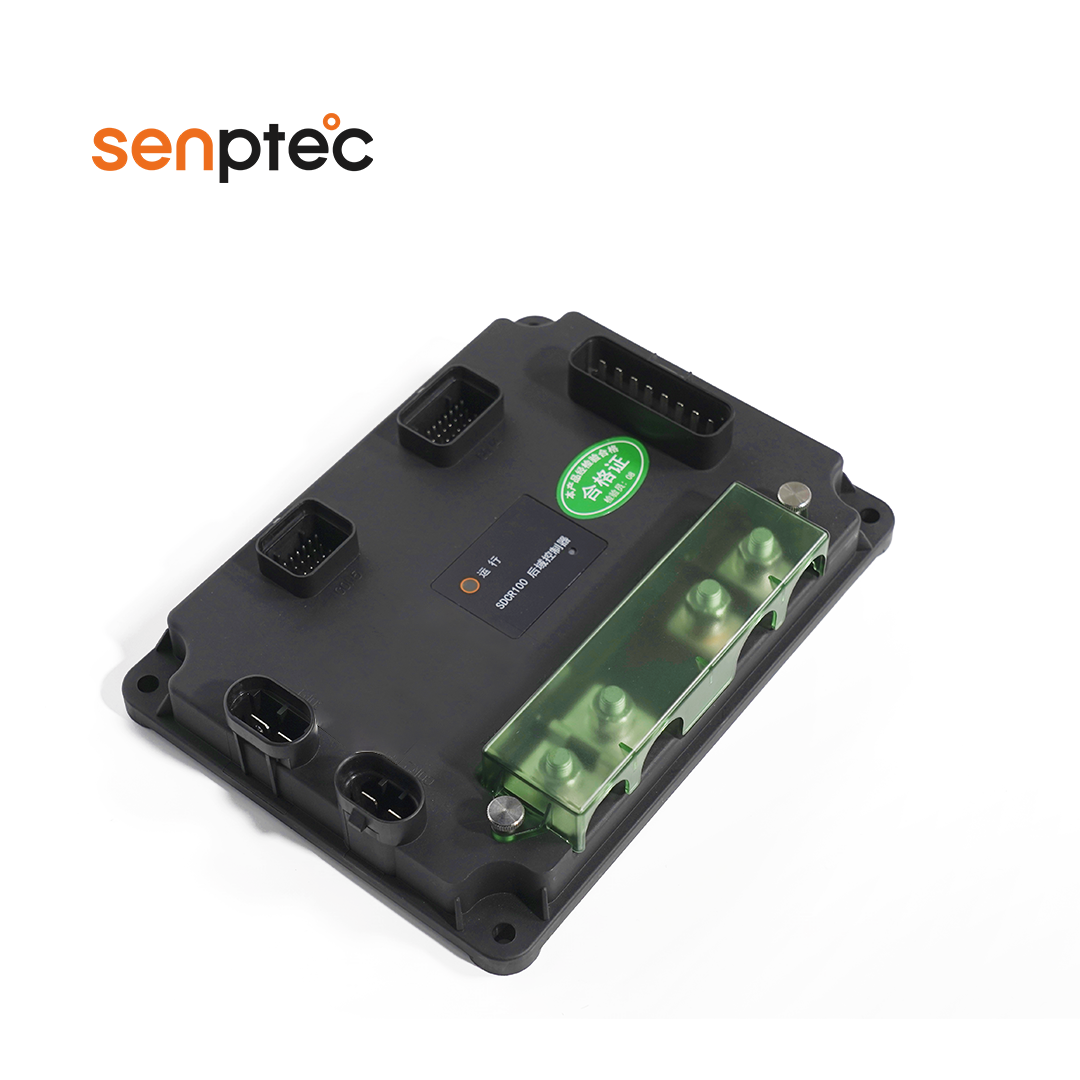

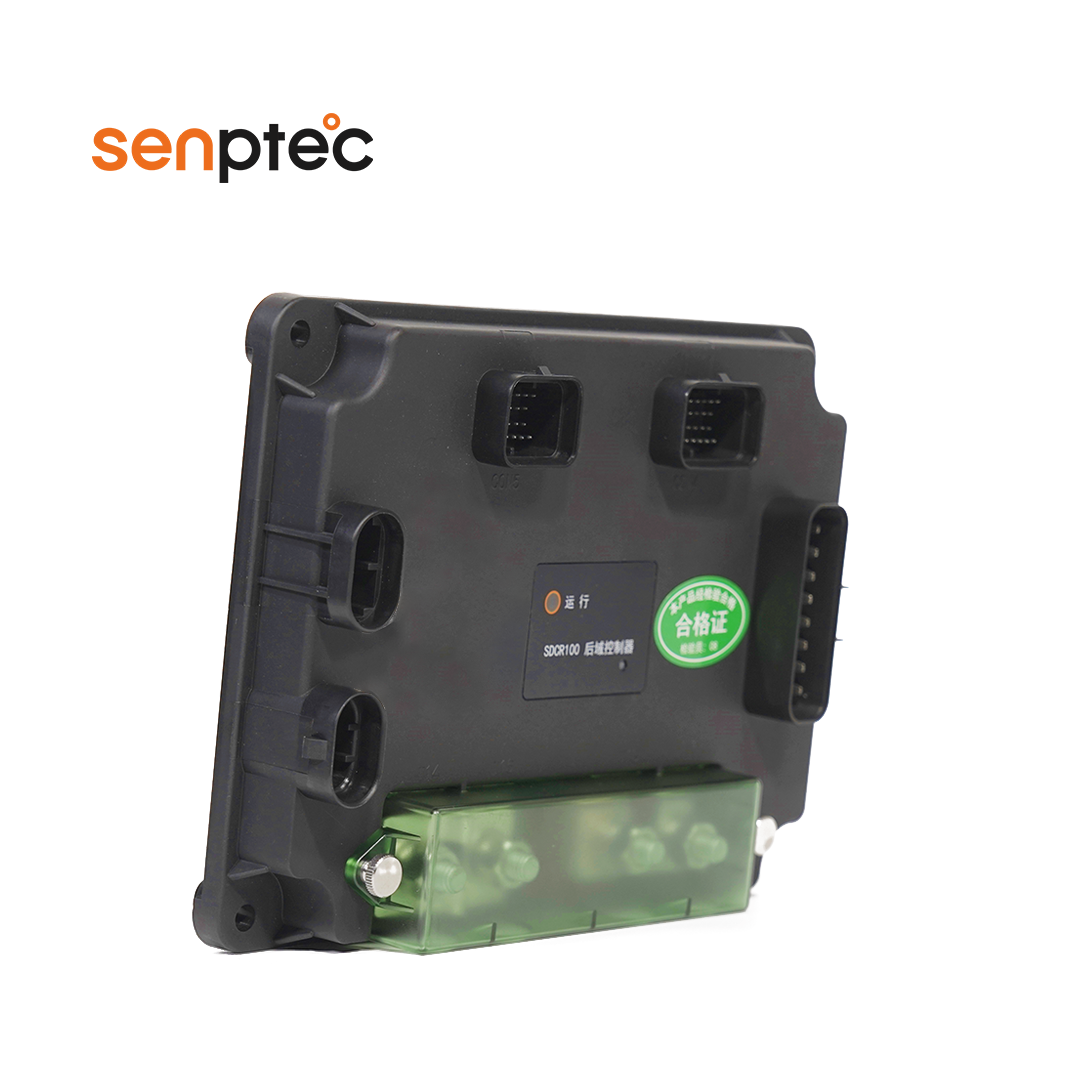

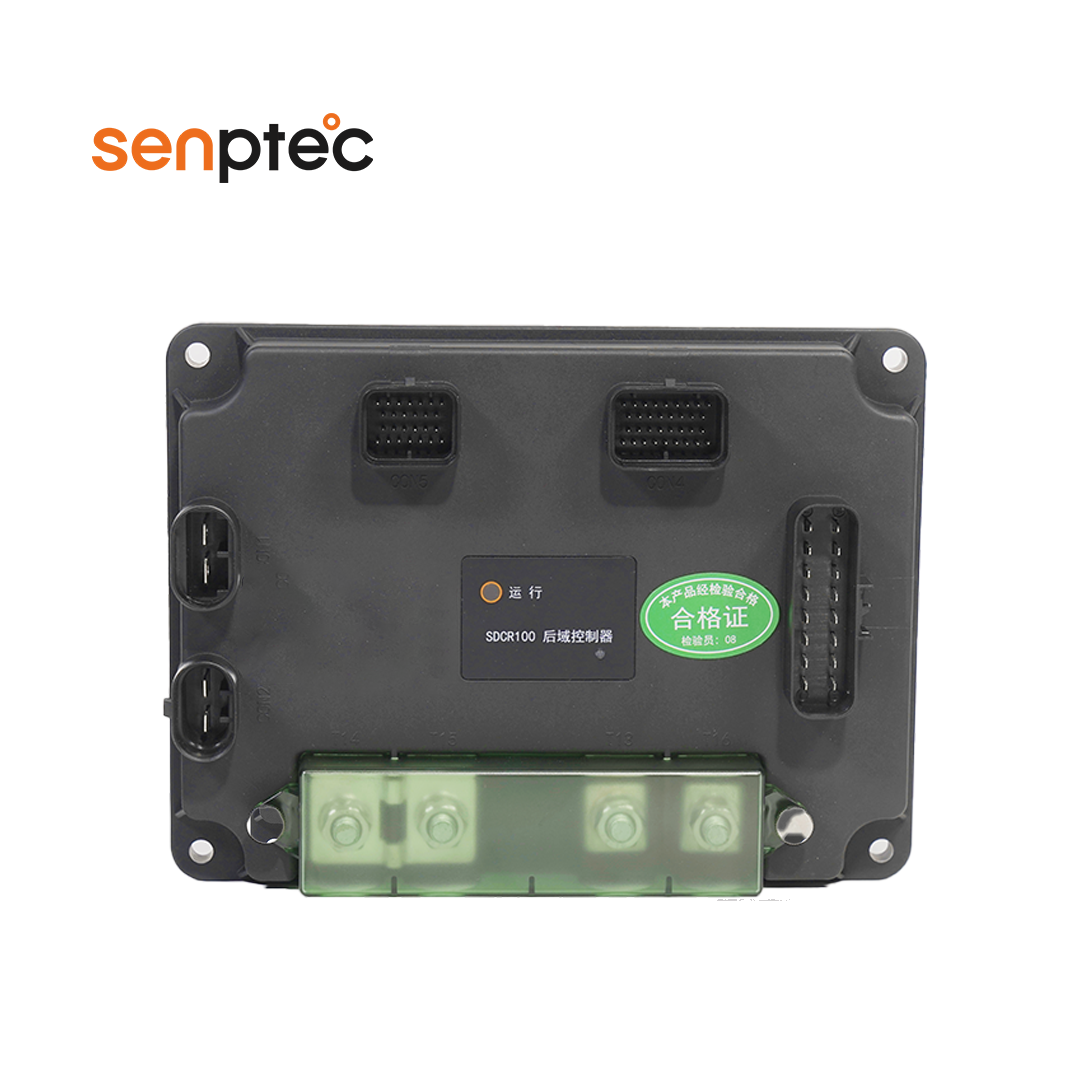

Senptec Rear Domain Controller SDCR100

SDCR100 Rear Domain Control unit



Be different from classic Power Distribution Unit, SDCR100 replaces outdated relays and fuses with modern solid state switches and also allow many data messages to be communicated across the same wire. These modern technologies reduce cost and enhance vehicle safety by eliminating the need for complex wire harnessing and reducing weight.

Application scenario: Public transportation, coaches and buses, construction vehicles,  varies road and off-road vehicles.

Get A Quote
Contact Us

Advantages

1. Multiple I/O interfaces that can easily be adapted to vehicle architectures

2. Improved on-board diagnostic functionality using reliable, over current and short circuit detection,

along with thermal overload detection.

3. New load switching technology with precise control of current, dedicated to wide range of loads such

as electrical motors, wipers, bulb/xenon/LED lamps, sensors, etc.

4. E-MARK R10 approved

Parameters

Dimensions 220L*165W*44H mm
Supply Voltage DC1632V
Operating temperature -40~85
Static Current 3mA
Digital input 21 channels
Analog input 10 channels
Output
150A 1 channel
120A 1 channel
40A 2 channels
30A 1 channel
20A 8 channels
10A 7 channels
5A 6 channels
3A 12 channels
1A 4 channels
Power output 1 channel (12V )
1 channel (5V )
CAN interface 1 channel

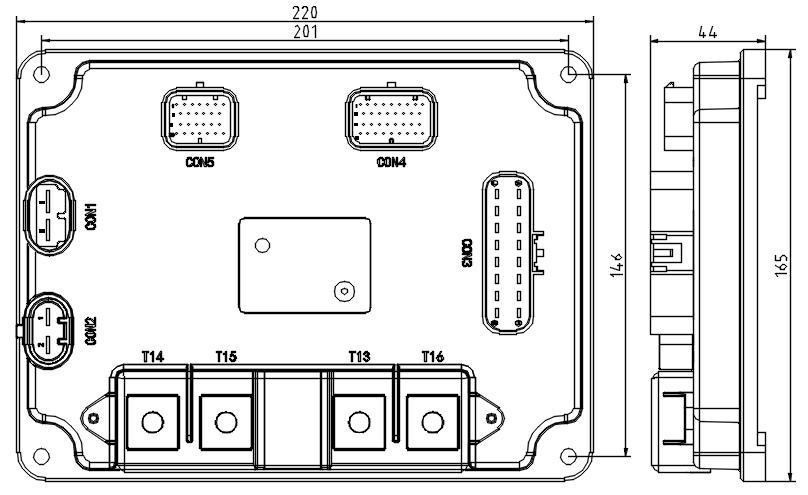

Dimensions

Senptec Rear Domain Controller SDCR100

Senptec Rear Domain Controller SDCR100
