Senptec PDU SP200M



SP200M is a cooling Fan Controller



Specially  be developed for intelligent control of cool fans.
There are 2 con-fig SP200MA and SP200MB. The Model A has only for cooling fan control, while the Model B integrates power distribution management, speed control, CAN communication, trouble shooting, fuse meltdown alarm, etc.

Get A Quote
Contact Us

Advantages

Distributed installation, can meet more fan power supply by parallel connection of products

Fan speed supports CAN message control or intelligent adjustment of fan speed by setting the

temperature difference between inlet and outlet water.

Fan power open circuit warning

Parameters

Dimensions158L*91.3W*46.4H mm
Voltage RangeDC16~32V
Operating temperature-40℃~85℃
Max currentDC160A
Static current<50mA
InputSwitch value 5 channels
Analog 5 channels
Output50A 4 & PWM 4
CAN interface2 channels

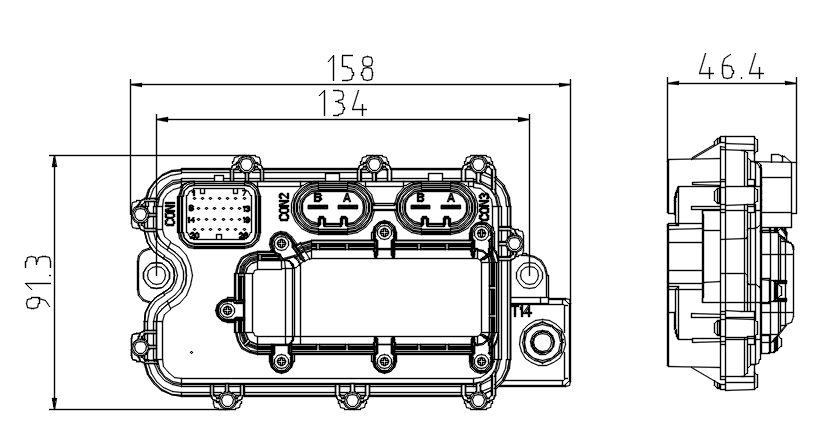

Dimensions

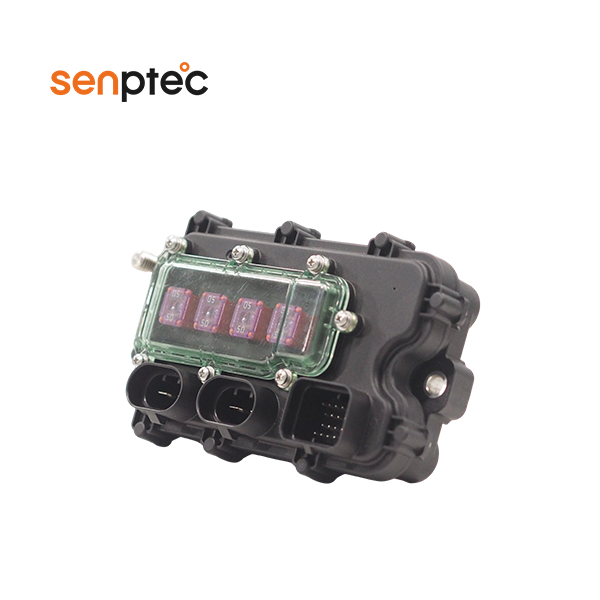

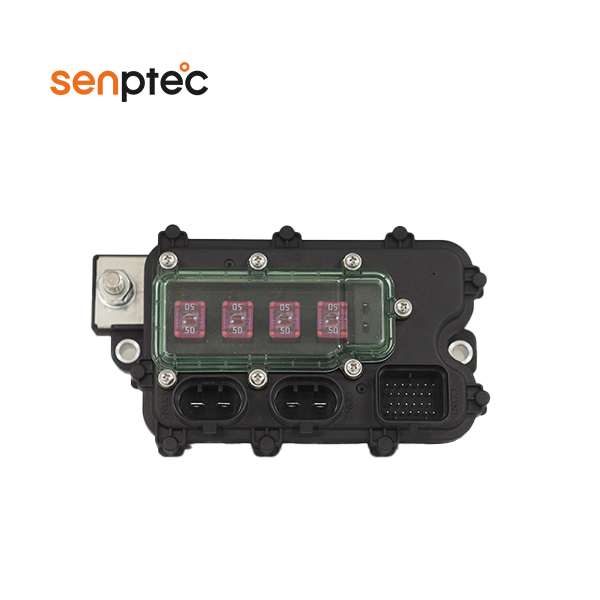

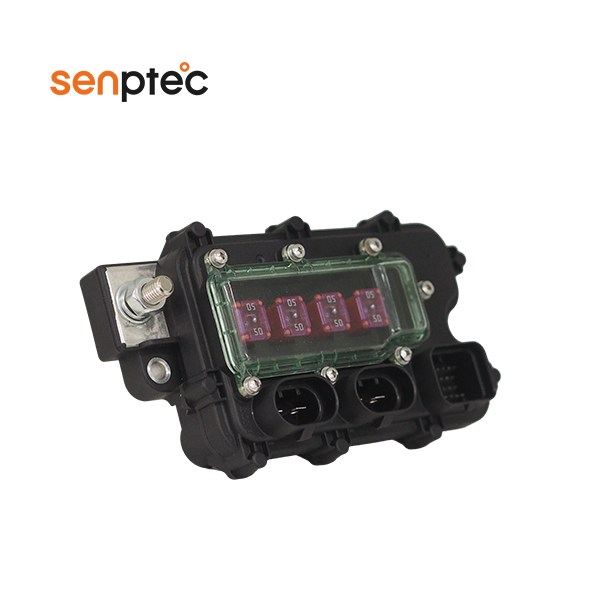

Cooling Fan Distribution Box SP200M
Cooling Fan Distribution Box SP200M
