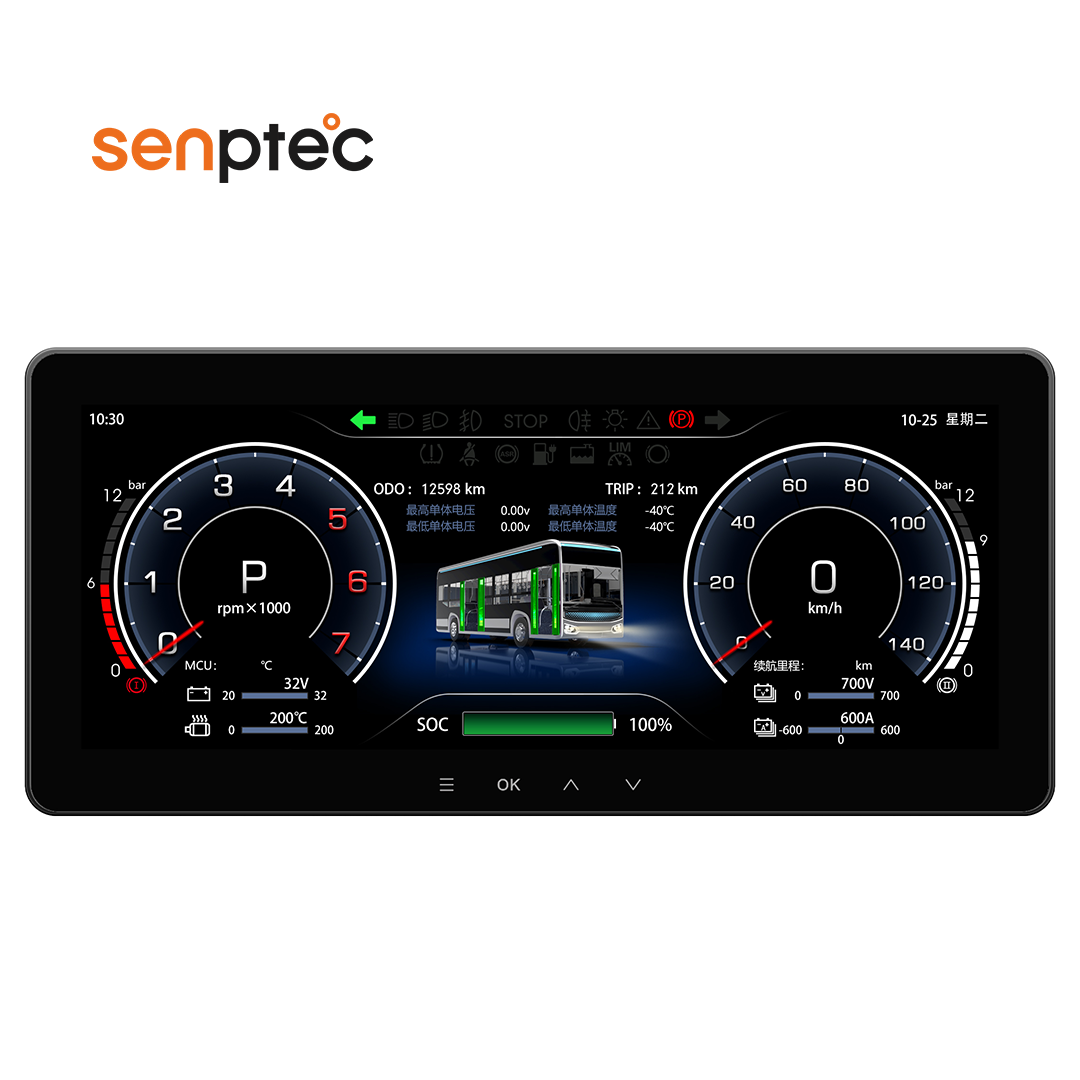

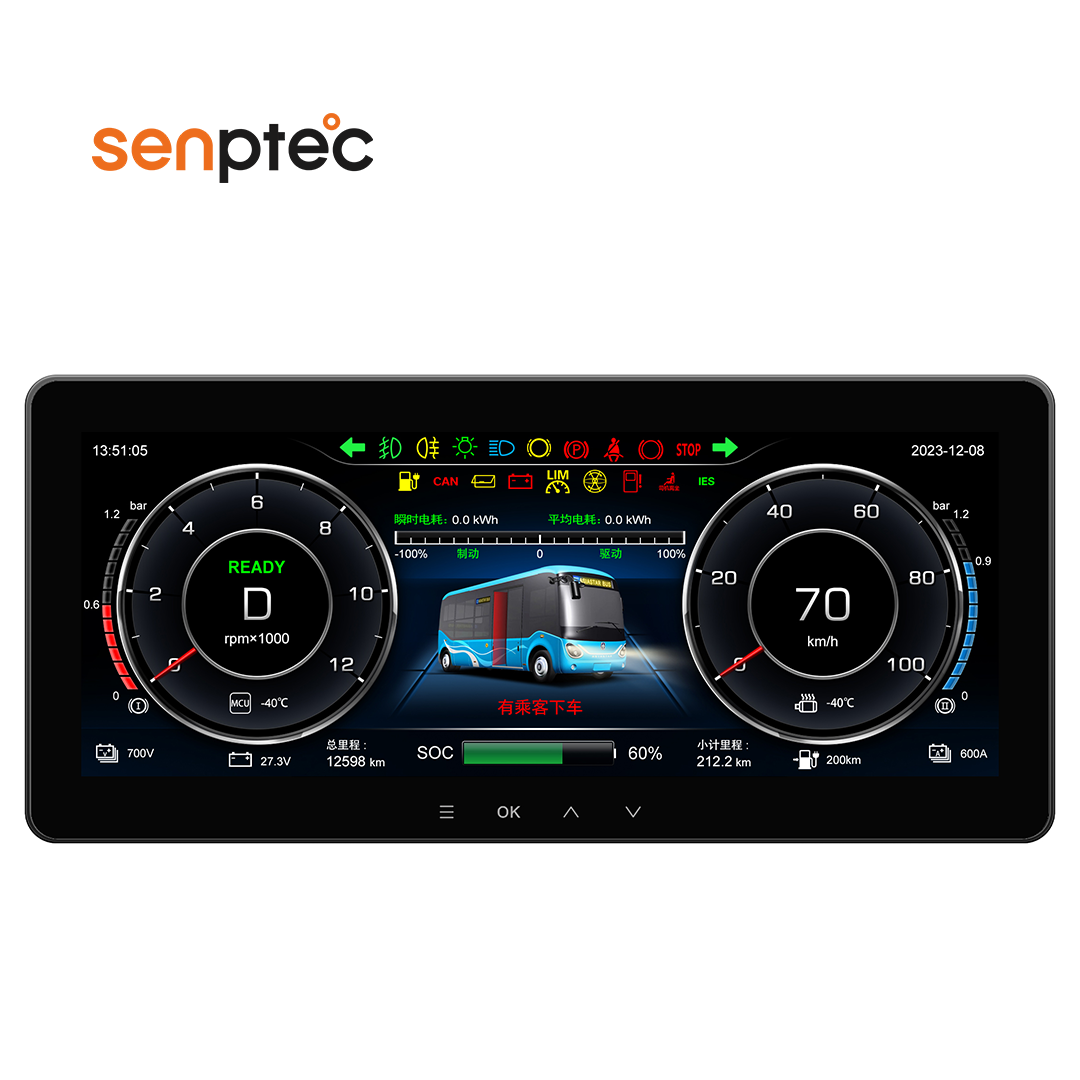

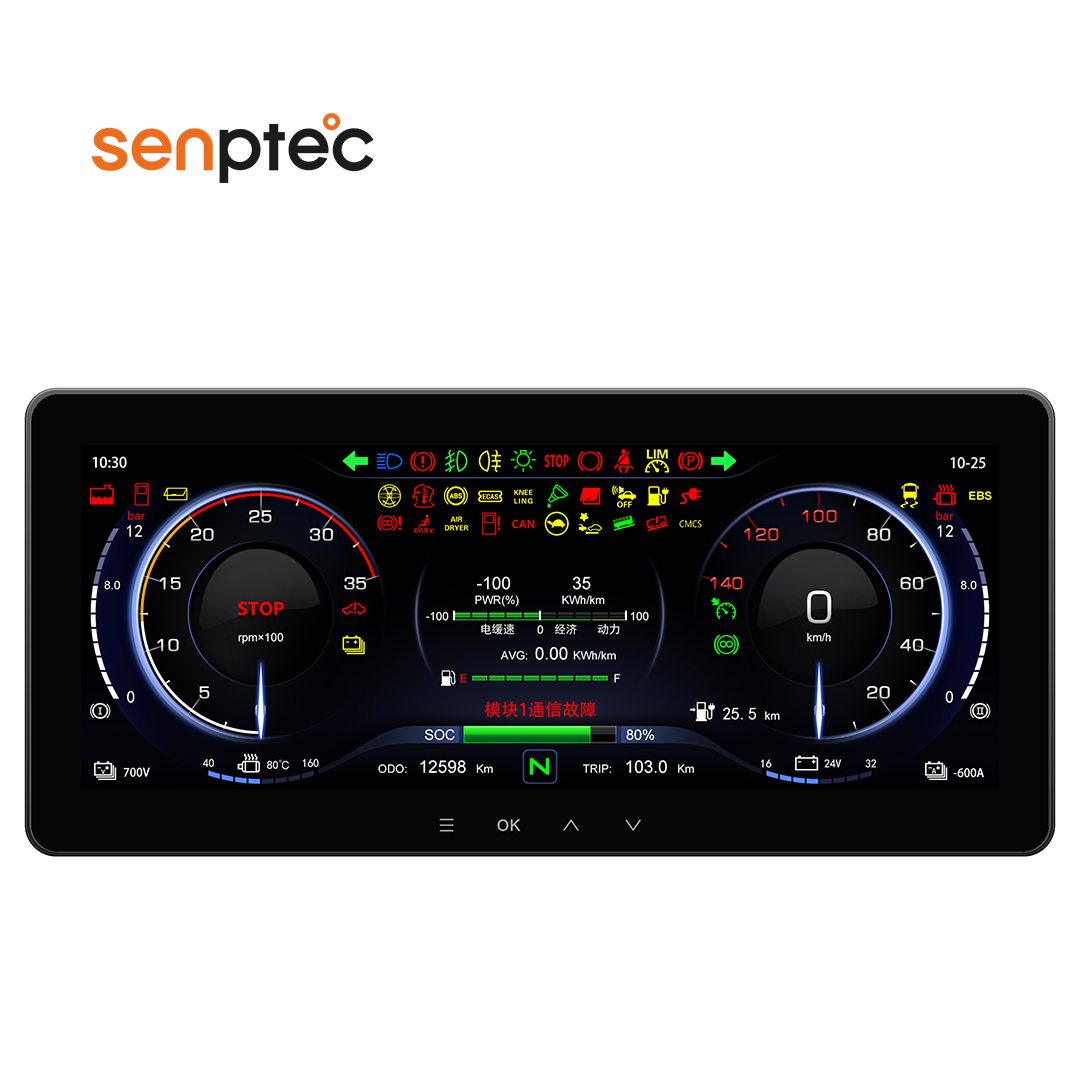

Senptec Instrument Cluster YB1203

YB1203 is an instumentation dashboard



Senptec provides a complete line of Human-Machine Interface solutions that eliminate the need to rely on inaccurate and outdated mechanical and electrical gauges. By using analog and digital technology, Senptec’s instruments provide more functionality, flexibility, and ease of installation than any other existing solutions on the market.

Application scenario: Public transportation, coaches and buses, construction vehicles,  varies road and off-road vehicles.

Get A Quote
Contact Us

Advantages

12.3 inch TFT

Highly customized platform (UI design include but not limited icons, dial face, number of gauges…)

Dedicated graphics processor with animation display

Up to 54 Virtual Alarm Light

Compliant with SAE J1939

CAN communication

E-MARK R10 approved

Parameters

Dimensions 330.5L*150.5W*38H mm
Supply Voltage DC16~32V
Operating temperature -30~75
Resolution ratio 1920*720
Static Current 2mA
OS RTOS
Input Swithc value 28 , analog value 4
Output 2 channels@1A
CAN interface 3 channels
Wake up 5 digital inputs

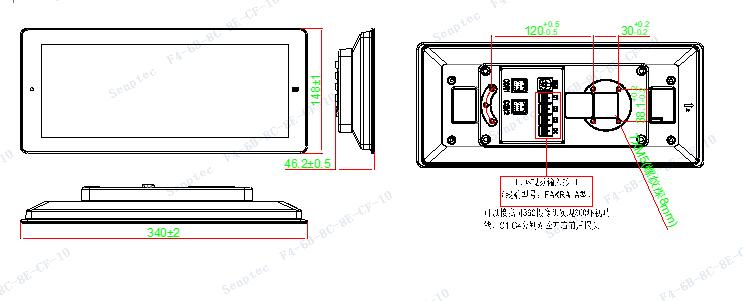

Dimensions

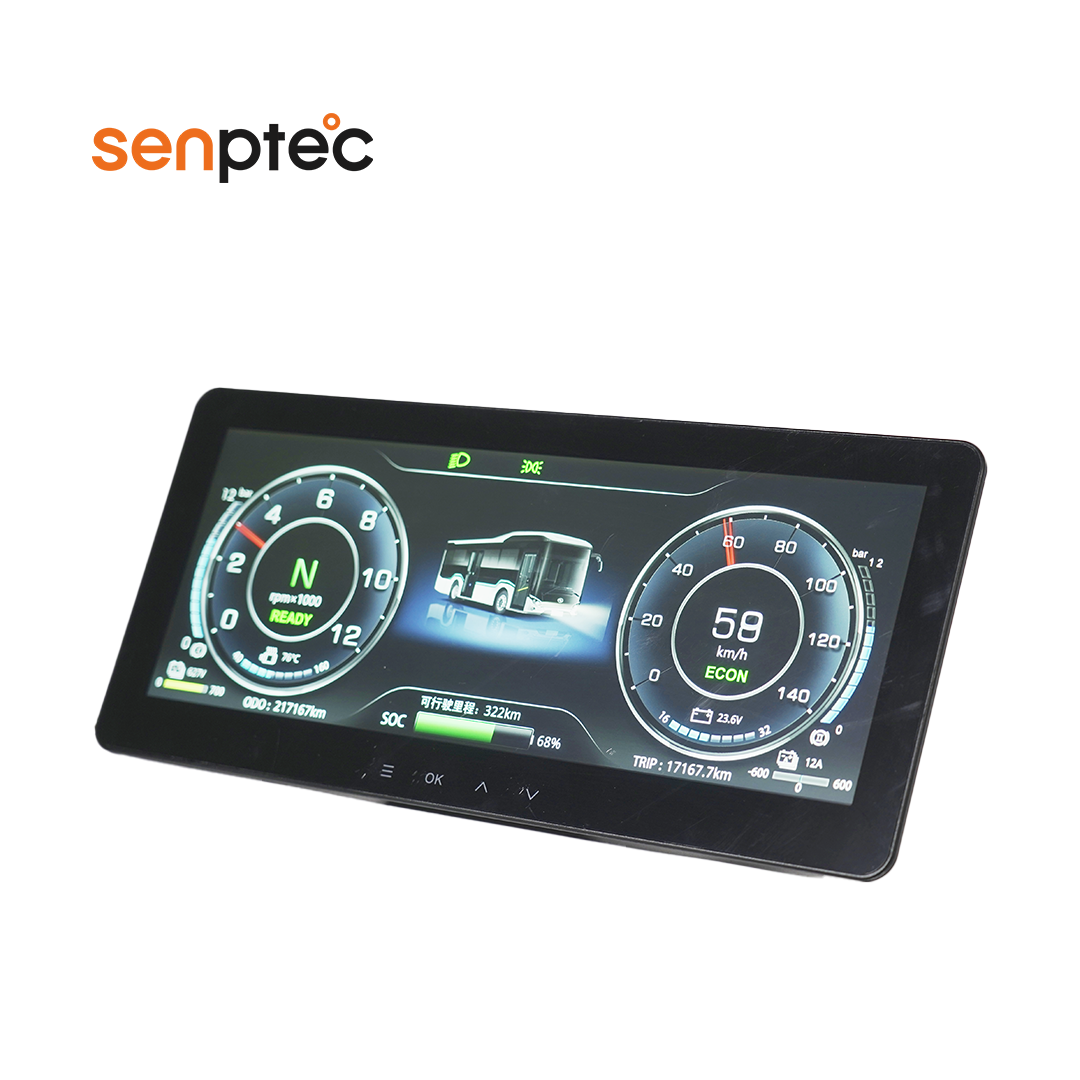

12.3’inch full LCD instrument YB1203
12.3’inch full LCD instrument YB1203
