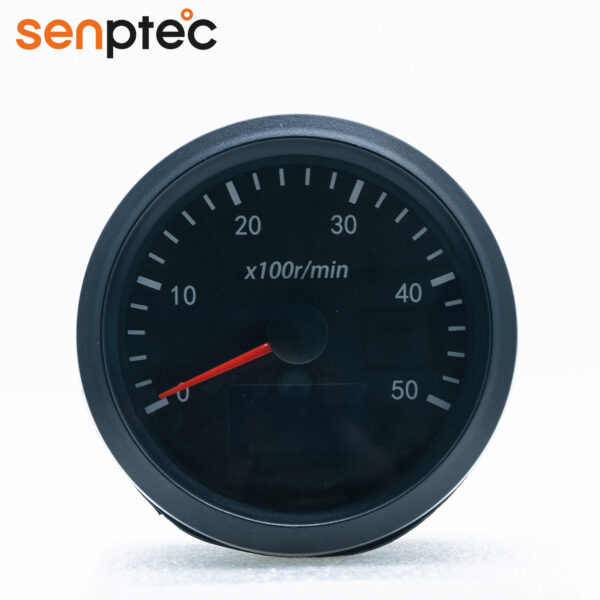

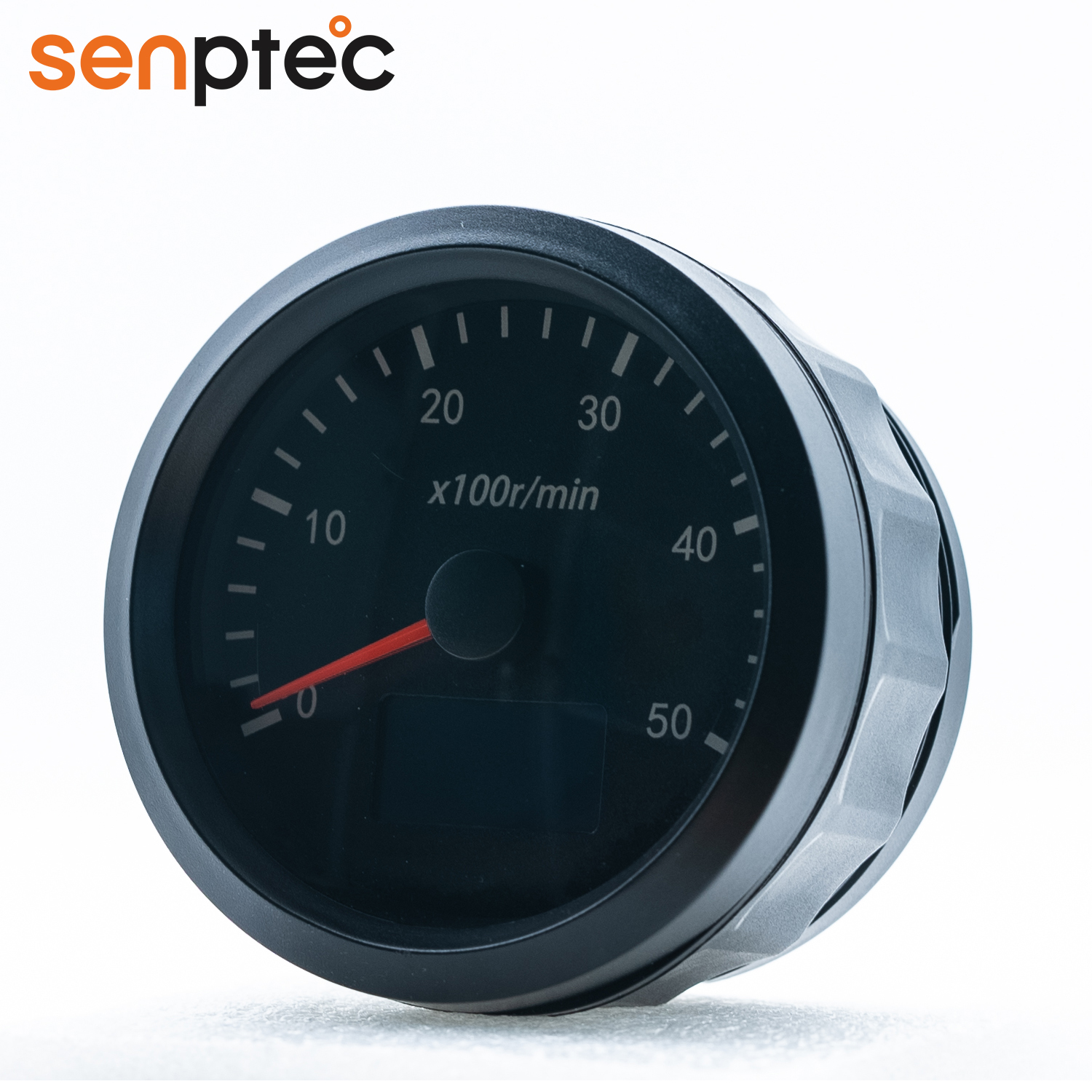

Senptec CANbus Tachometer SPZSB-M205A

Operating voltage 9 to 32V DC(reverse polarity protected)
Operating temperature -40℃ to +85℃(-40°F to +185°F)
Vibration resistance      Random：10~500Hz

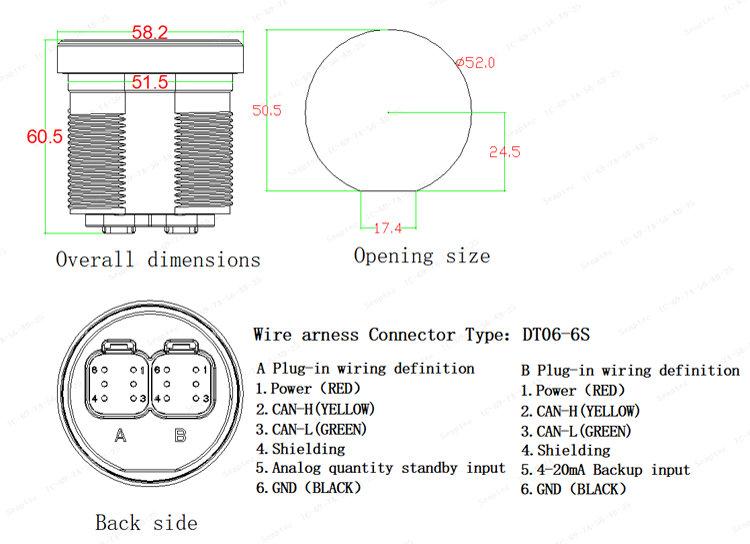

Overall dimensions      See below
Viewing Angle      170°
According to the effect Clearly visible in the sunlight
Protection grade   IP67

Functional Features

With 1 CAN communication interface, 2 analog input；

Signal CAN come from battery voltage or engine CAN message. CAN packets have priority. Users CAN also customize CAN information.

Conform to the J1939，Suitable for Cummins, Weichai and other domestic and foreign engines；

Independent research and development, professional automotive components quality assurance.

Typical Applications

Engineering Machinery, Special Vehicles, Sanitation Equipment, Generator Set, etc.

Road and Bridge, Ship, Petroleum(oil), Mining Equipment Industry and Fire Industry, etc.

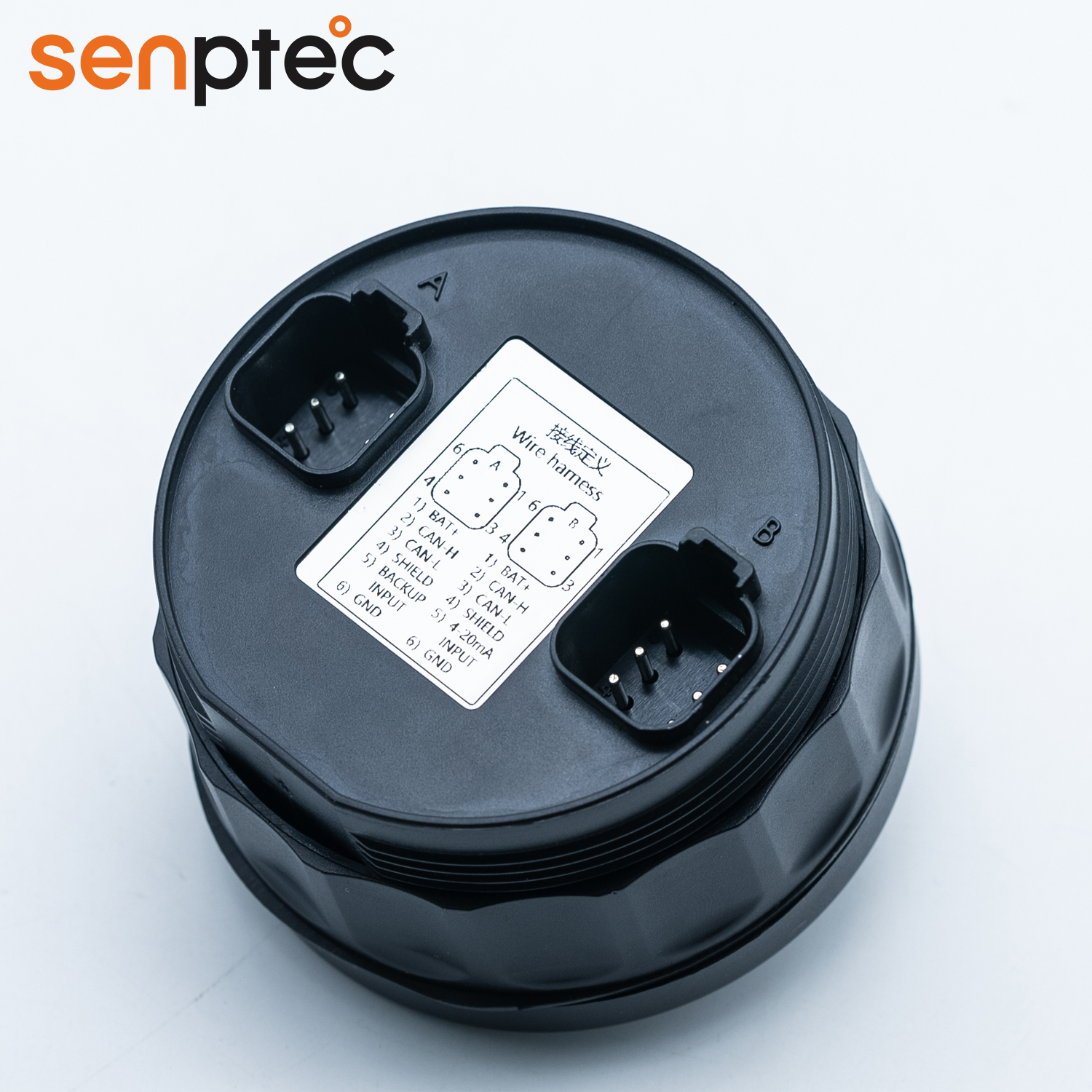

1、Wiring Instructions:

pin 1 is the power cord, which needs to be connected to ACC or ON switch;

pin 2,3 are CAN communication line, which is connected to engine ECU after twisted-pair; When the engine is not electronically controlled, the three wires are not connected;

pin 4 is the shield line of CAN line;

pin 5 is analog/frequency input;

Plug end model: Deutsch DT06-6S;

pin 6 is ground wire, which needs to be connected with wire.

2、Signal Source:

The instrument works preferentially from CAN signal, if there is no CAN signal, it works according to sensor signal, but the customer needs to provide sensor parameters.
