Senptec Touchscreen Control Panel KP1003

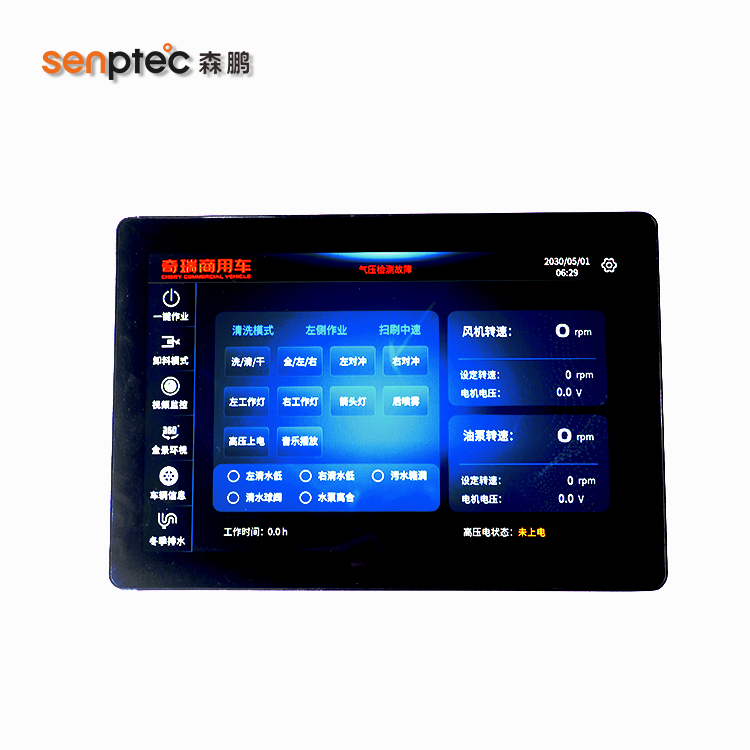

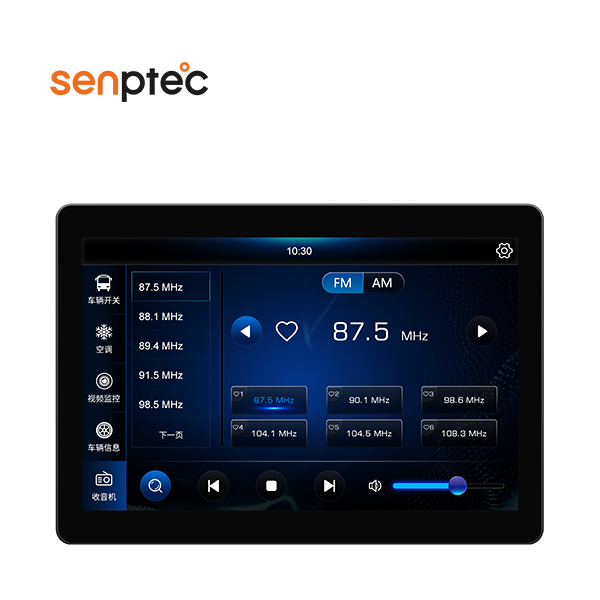

KP1003 is a 10 inches touchscreen control panel

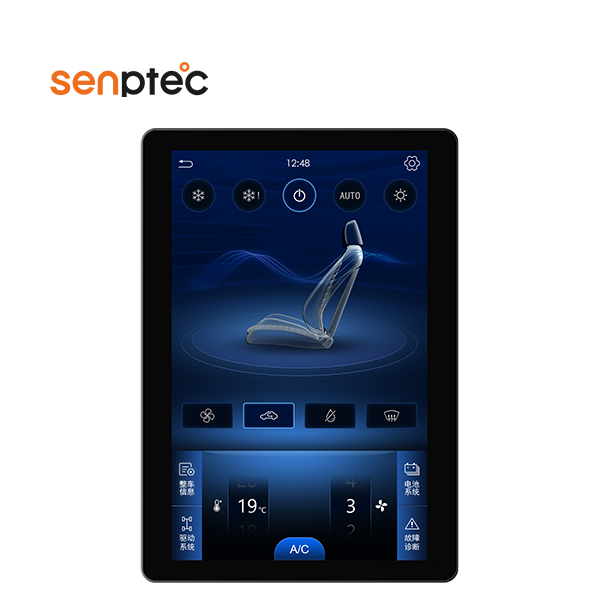

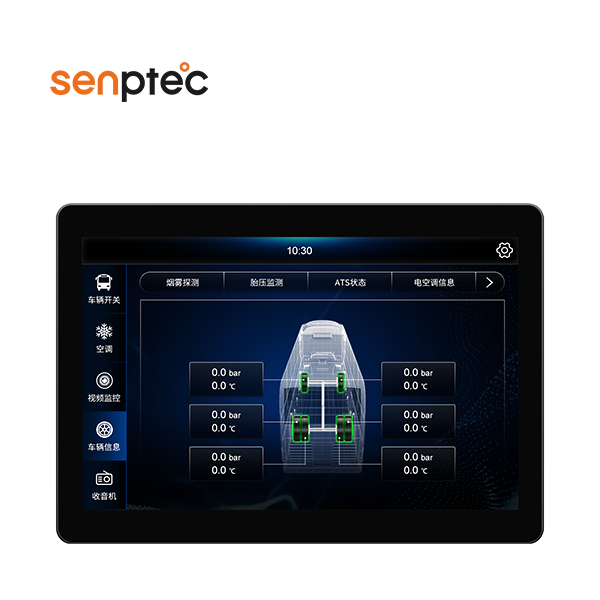

It greatly optimized the dashboard panel by adopting 10.1-inch display and touchscreen design, integrated 360 degree surrounding view (such as air conditioning, Tyre pressure monitoring, door camera, reversing camera, etc.), and meanwhile, it effectively integrating the information that drivers are concerned about, guiding drivers to focus on safe driving.

Application senario: bus and coaches, public transportation, road and off-highway vehicles, etc.

Get A Quote
Contact Us

Advantages

10.1 inch TFT

Dedicated graphics/video processor allowing 4 channel real time video display

Integrated 360 Around View Mainframe

Highly customized and open source platform

Compliant with SAE J1939

CAN protocol commnucation

E-MARK R10 approved

Parameters

Dimensions 248L*171W*39H mm
Supply Voltage DC24V(18~32V)
Operating temperature -30℃~75℃
Resolution ratio 1280*800
Static Current <2mA
OS Miranda
Video Input 4 channel 1280x720P and 2 channel AHD/CVBS
Video Output 1 channel(CVBS)
CAN interface 2 channel

Dimensions

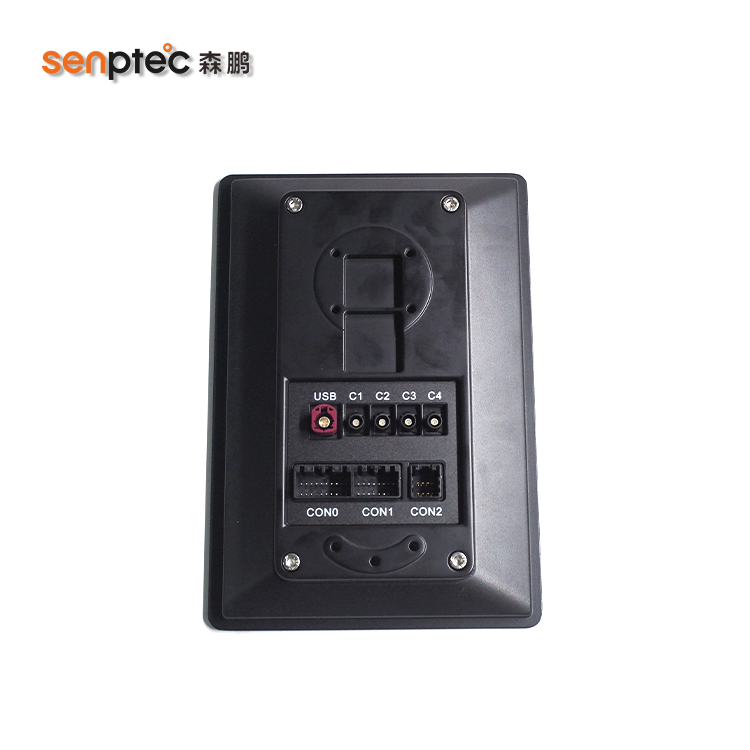

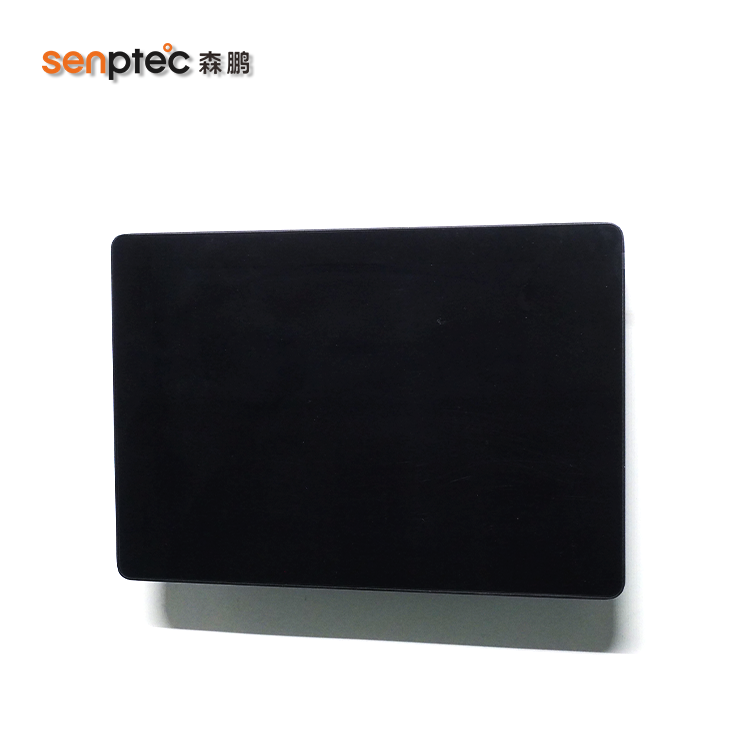

10.1’inch Control Panel KP1003
10.1’inch Control Panel KP1003
