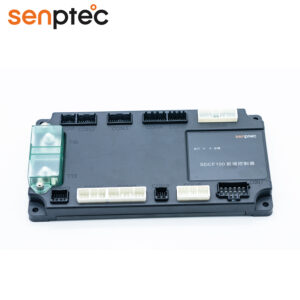

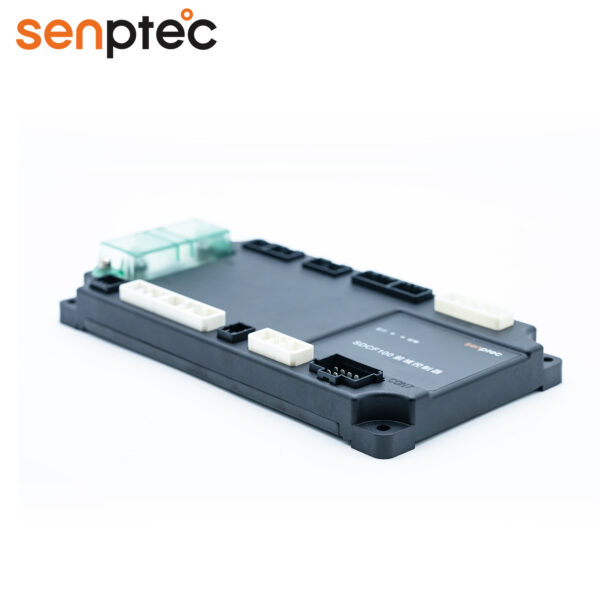

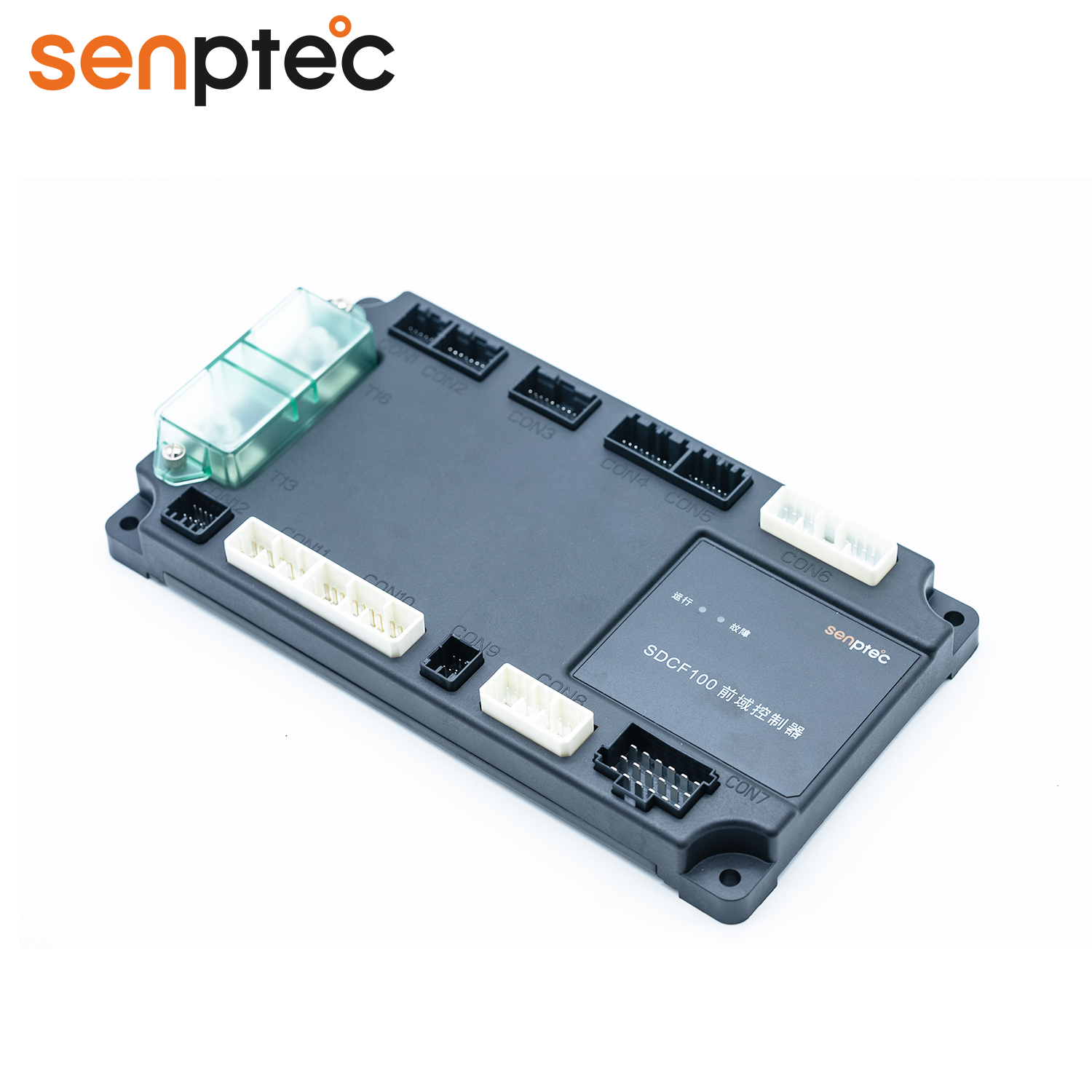

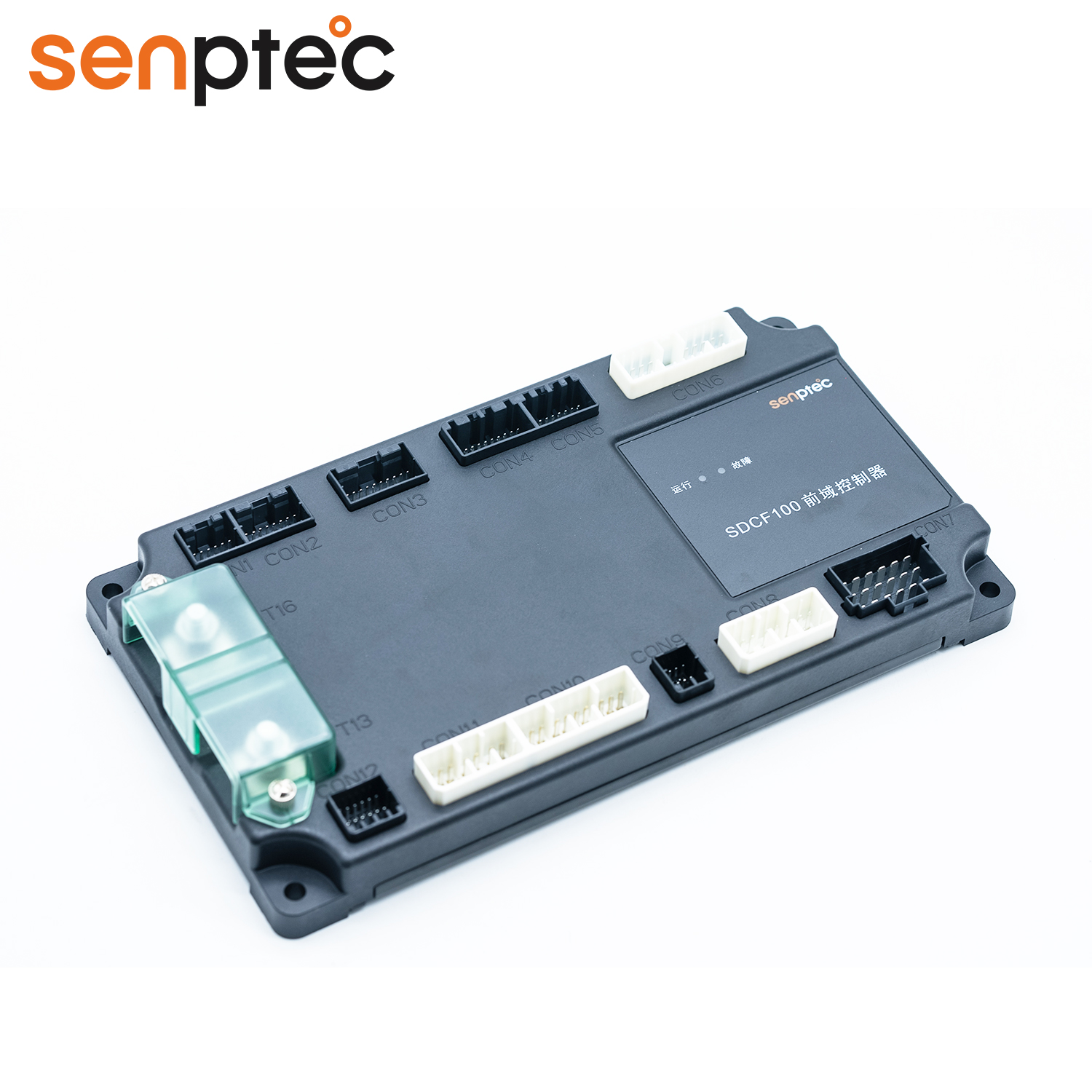

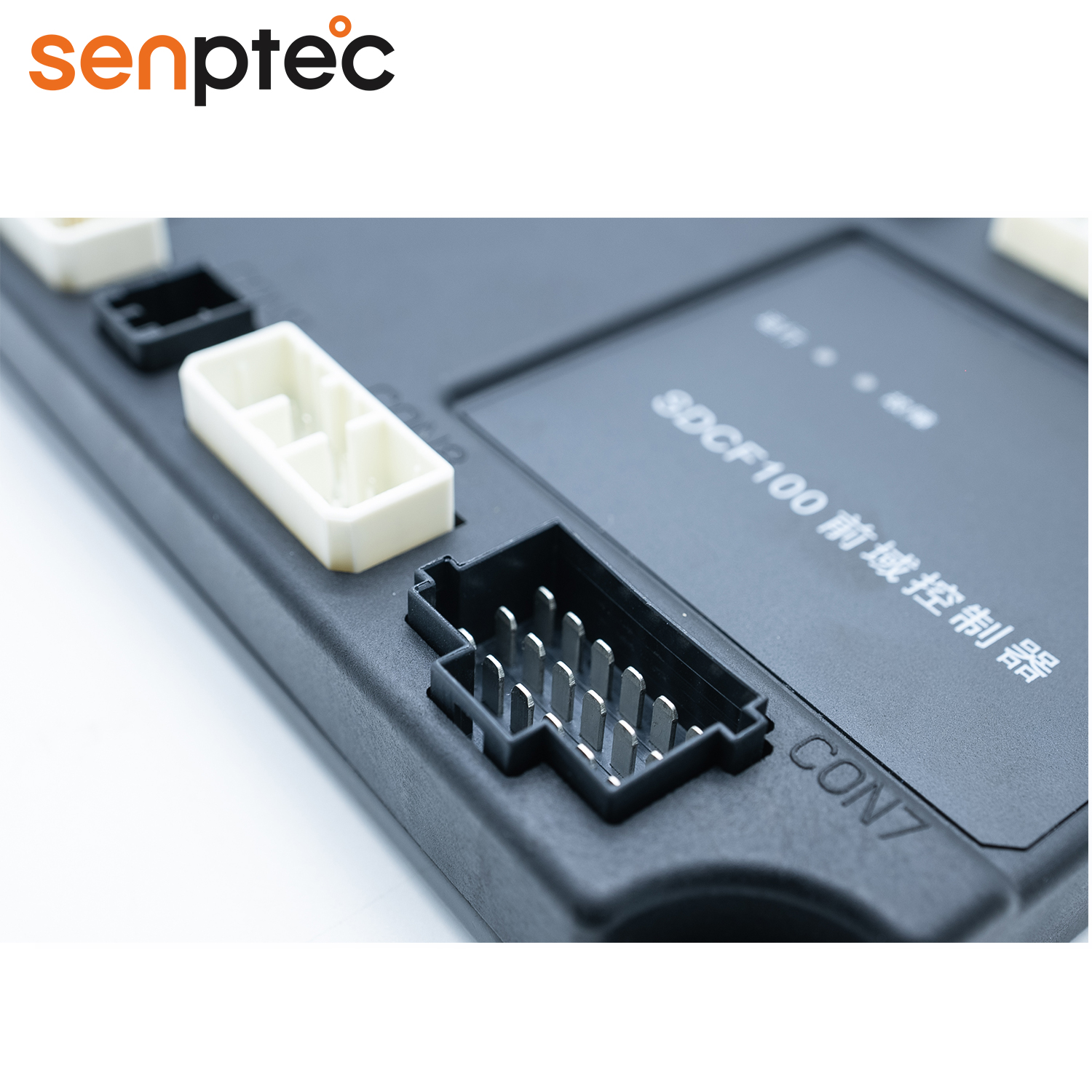

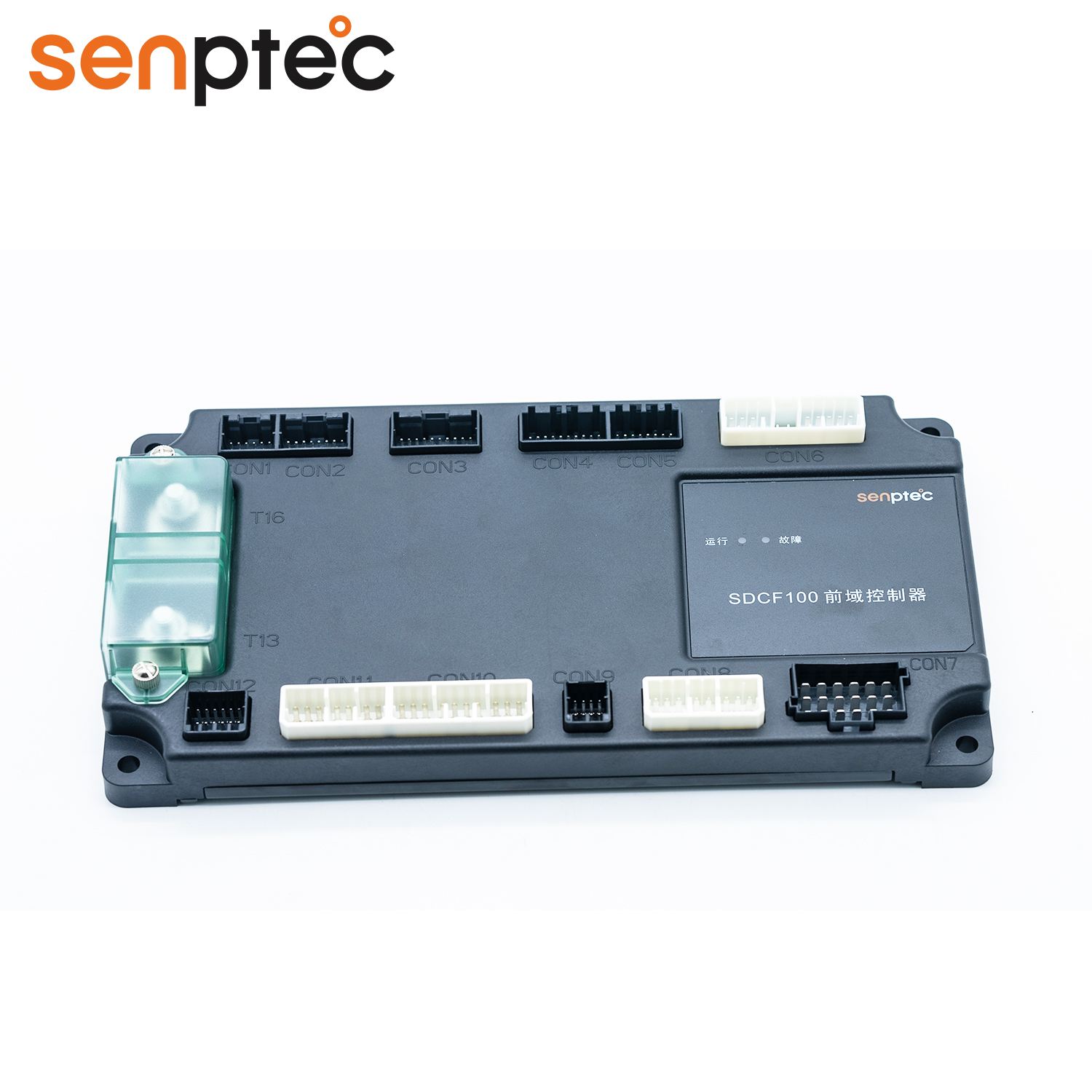

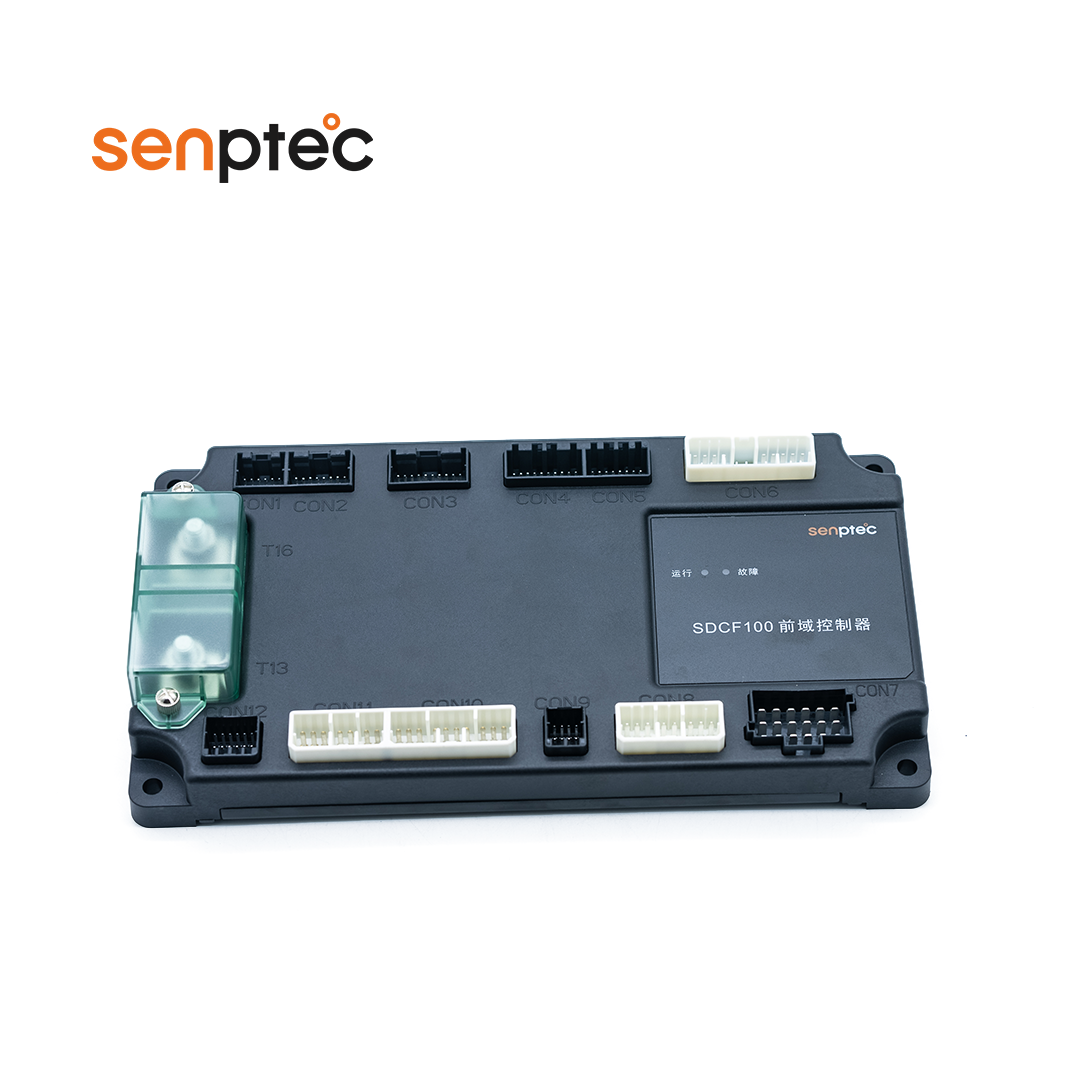

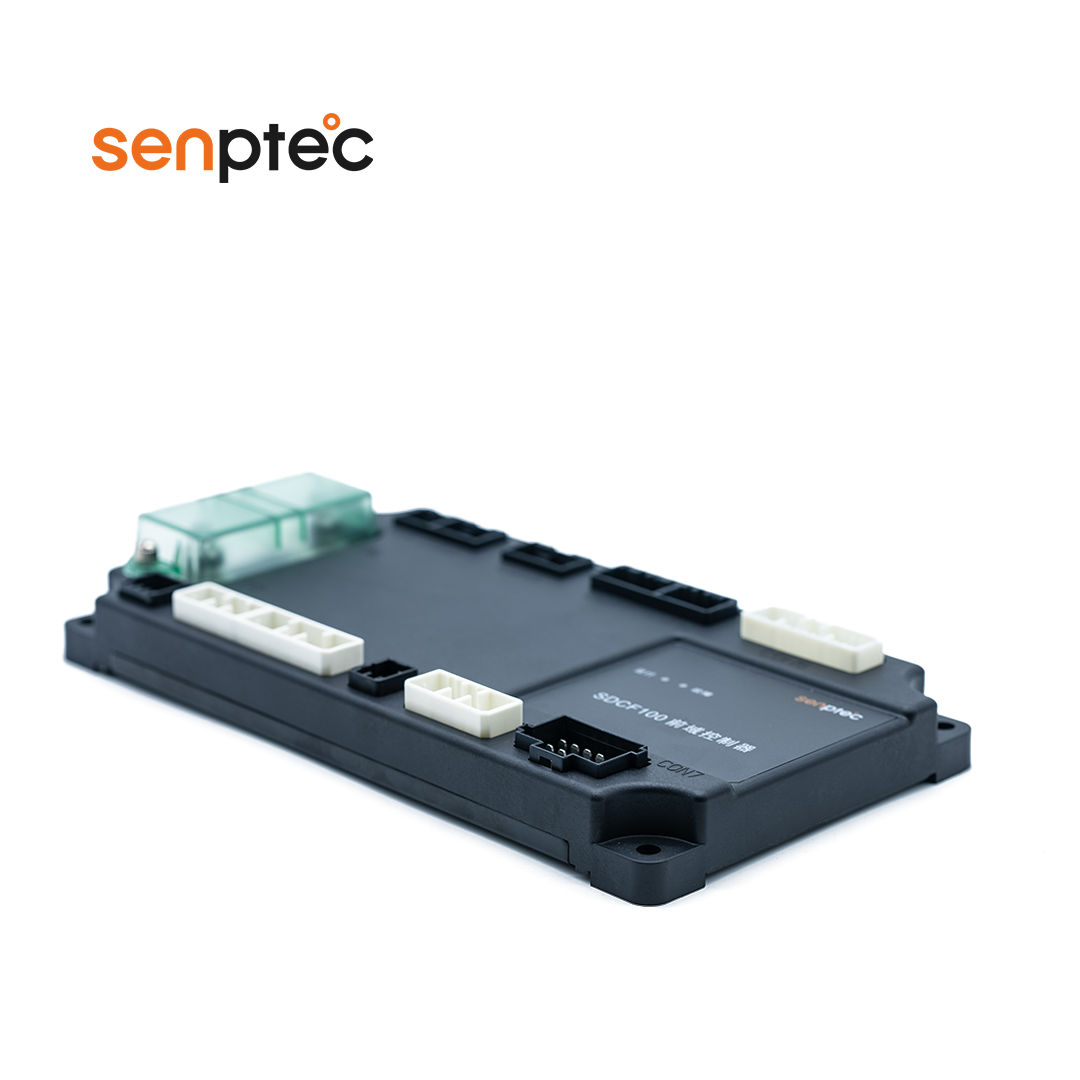

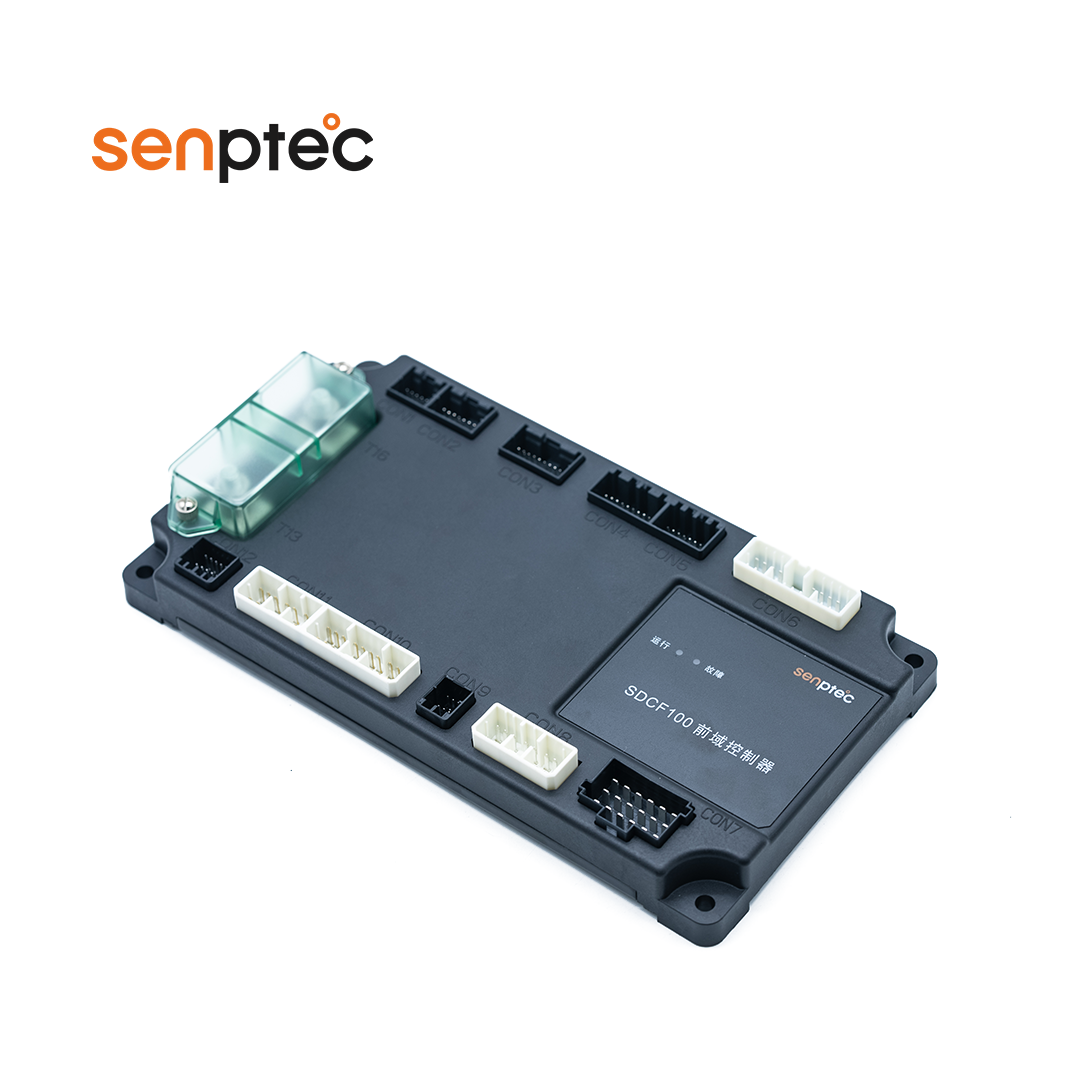

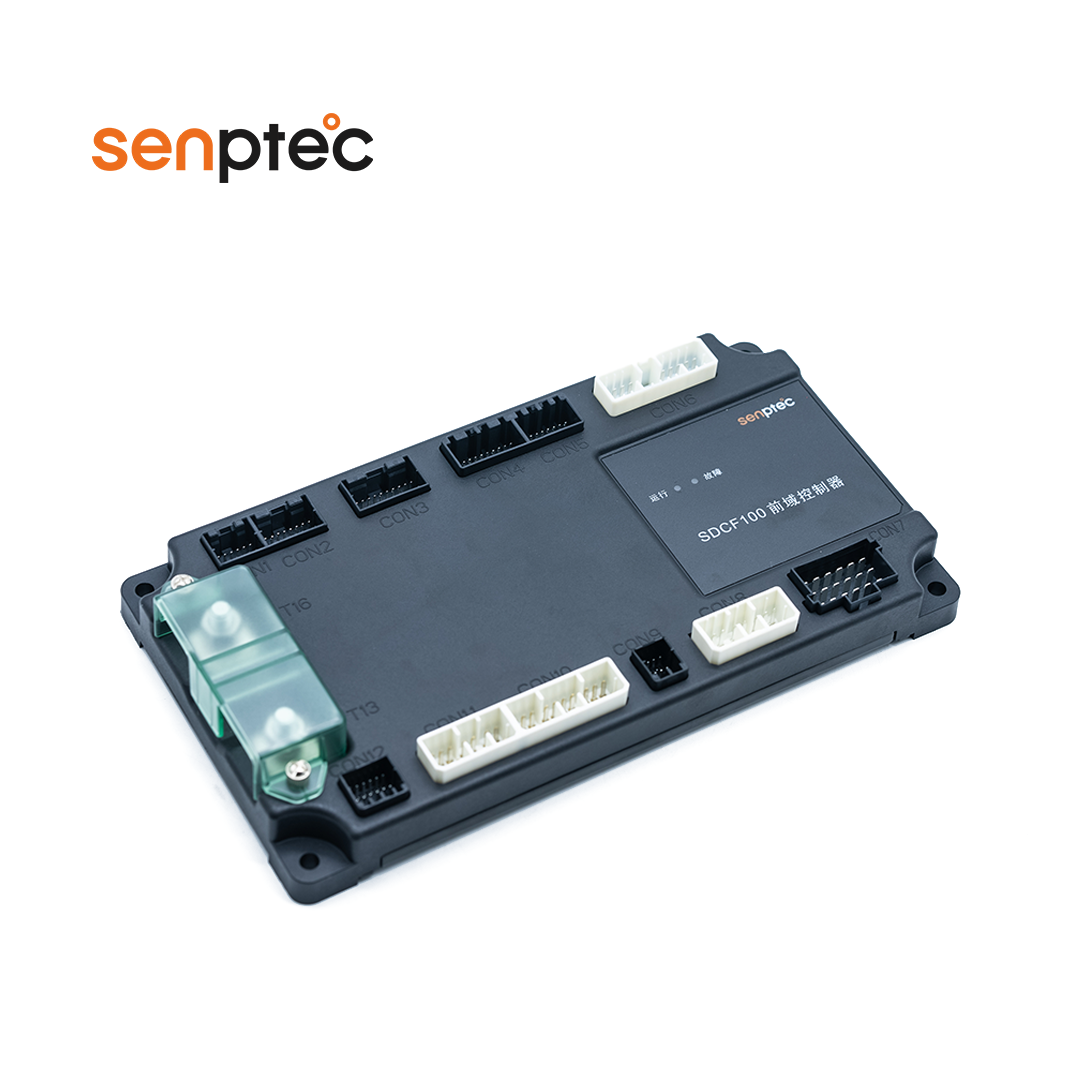

Senptec Front Domin Controller SDCF100

SDCF100 is a smart power distribution unit



Be different from classic Power Distribution Unit, SDCF100 replaces outdated relays and fuses with modern solid state switches and also allow many data messages to be communicated across the same wire. These modern technologies reduce cost and enhance vehicle safety by eliminating the need for complex wire harnessing and reducing weight.

Application scenario: Public transportation, coaches and buses, construction vehicles,  varies road and off-road vehicles.

Get A Quote
Contact Us

Advantages

1. Multiple I/O interfaces that can easily be adapted to vehicle architectures

2. Improved on-board diagnostic functionality using reliable, over current and short circuit detection,

along with thermal overload detection

3. New load switching technology with precise control of current, dedicated to wide range of loads such

as electrical motors, wipers, bulb/xenon/LED lamps, sensors, etc.

4. E-MARK R10 approved

Parameters

Static Current<3mA
Digital input66 channels
Analog input2 channels
Output
120A1 channel
20A4 channels
15A14 channels
10A8 channels
5A20 channels
3A28 channels
1A29 channels
Power output1 channel (12V )
1 channel (5V )
CAN interface3 channels
 LIN interface1 channel

Dimensions

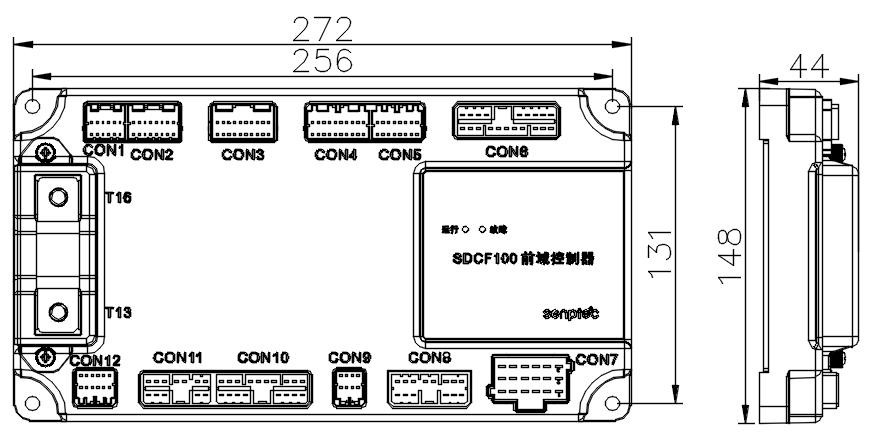

Senptec domain controller SDCF100 dimension and pin definition
Senptec domain controller SDCF100 dimension and pin definition
