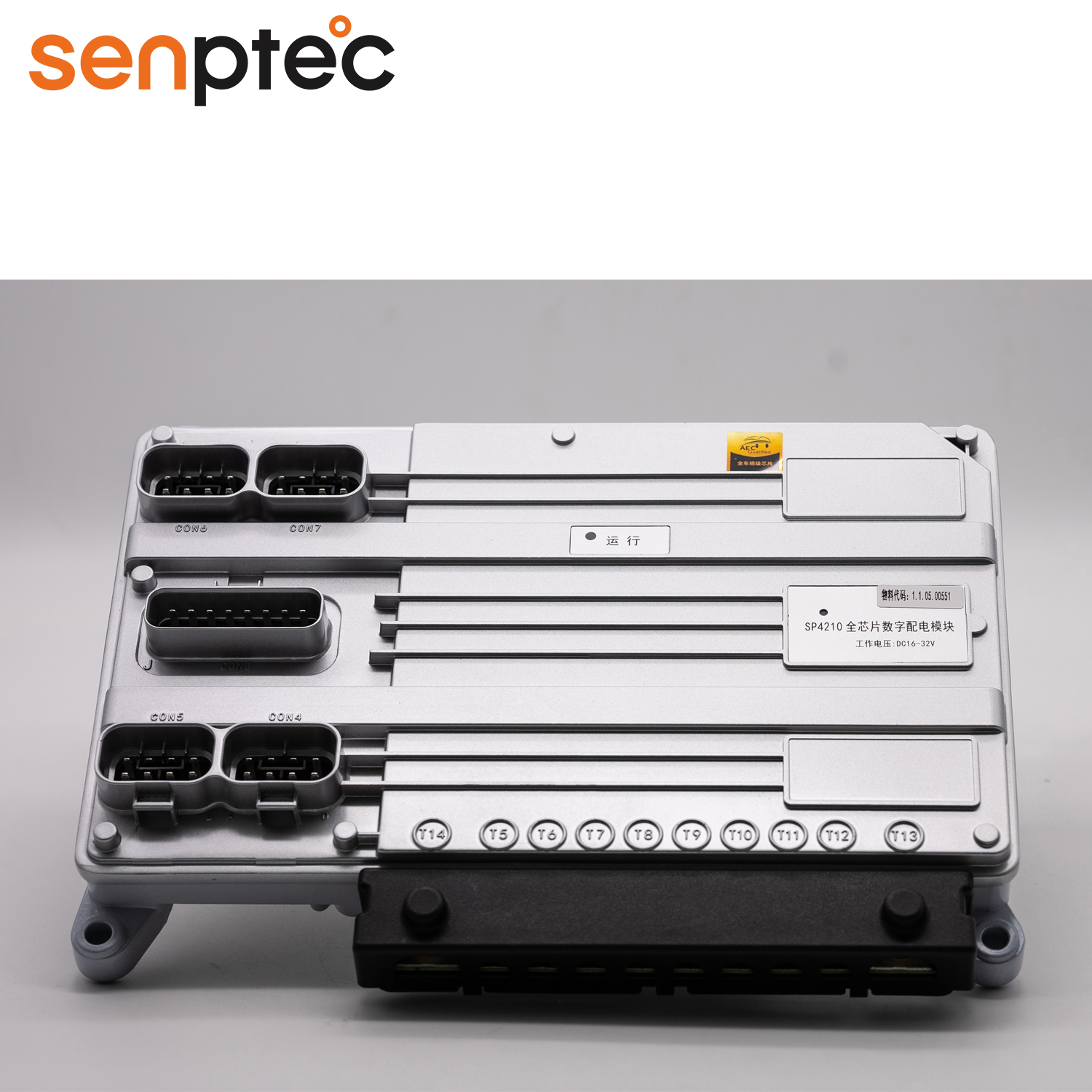

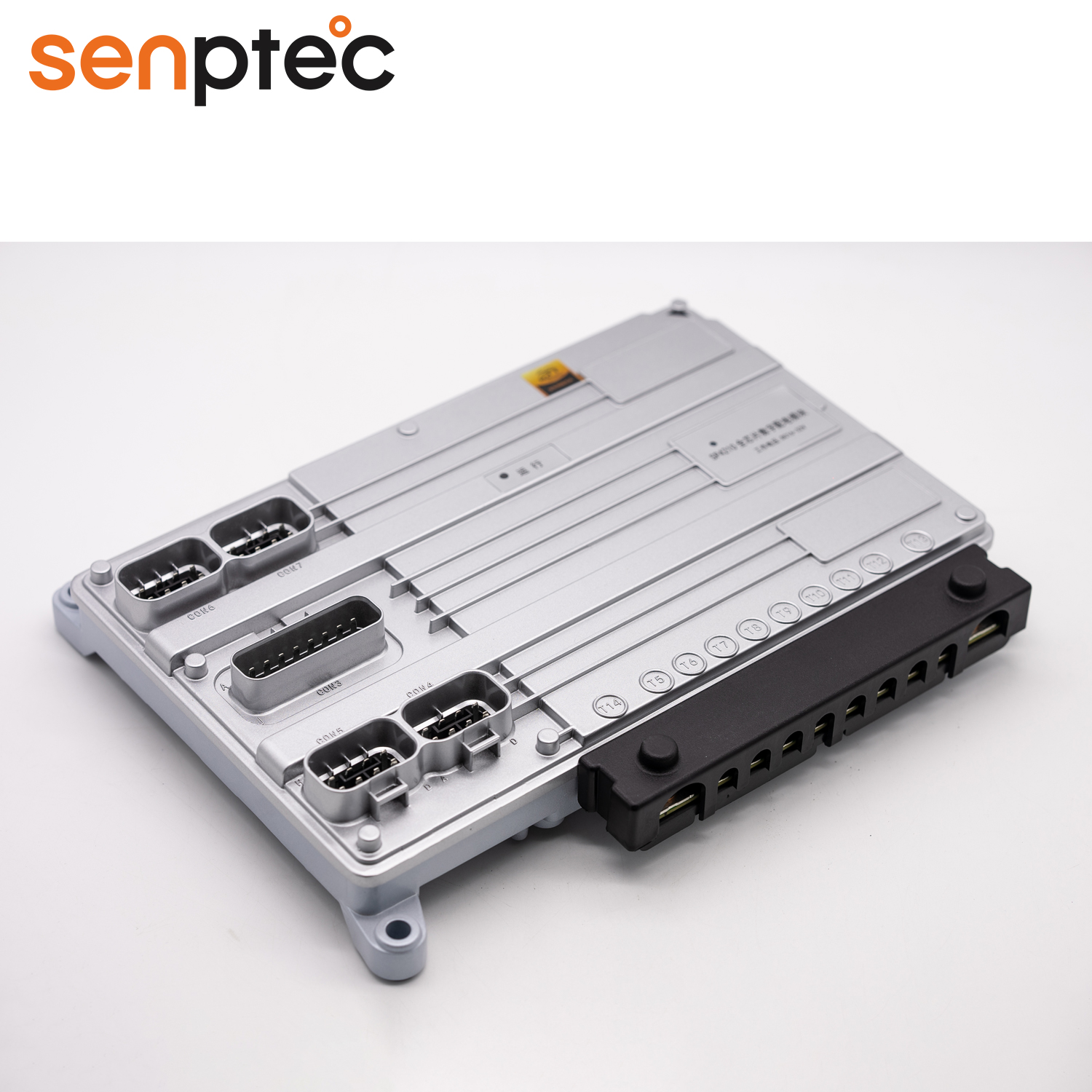

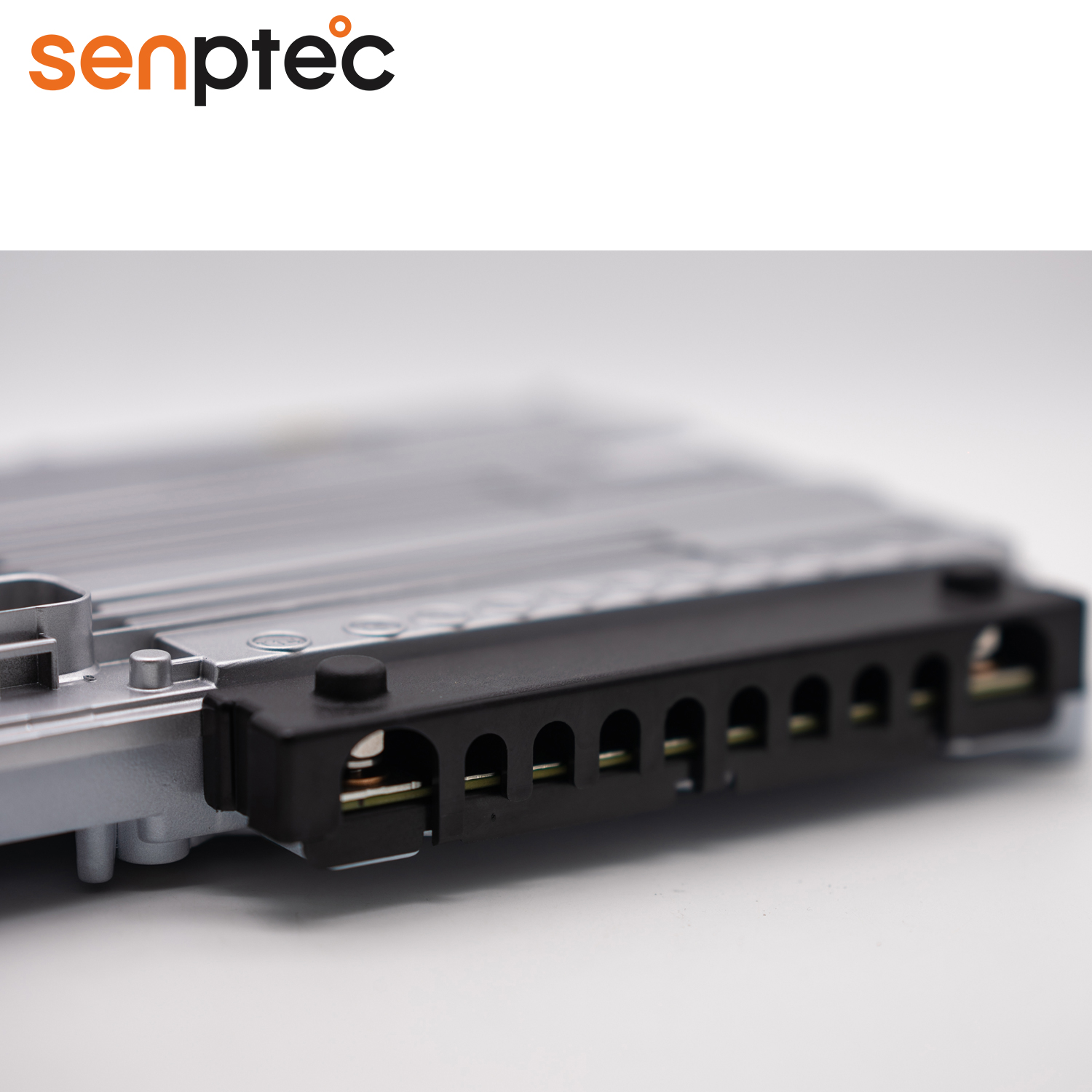

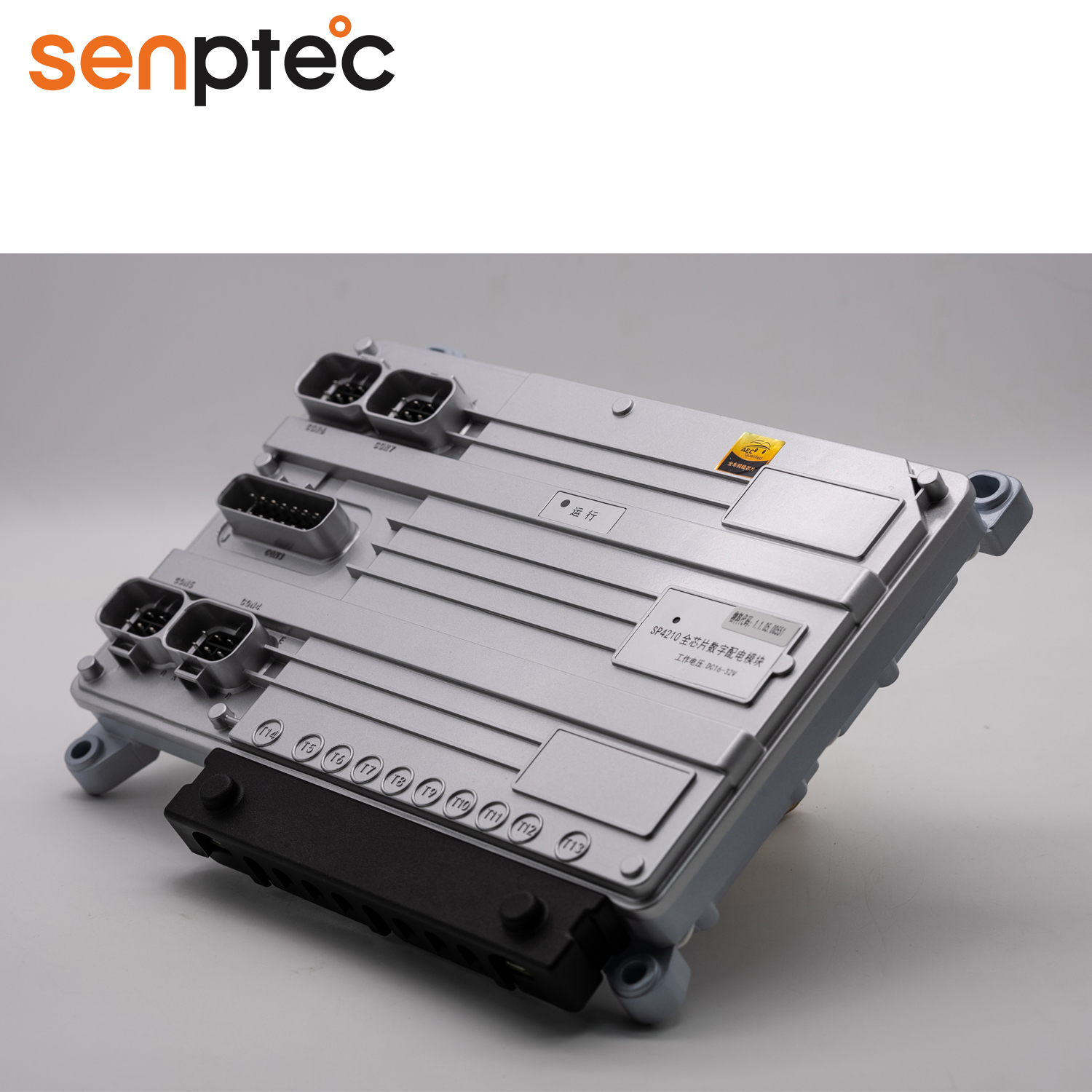

Senptec SPDU SP4210

SP4210 is an intelligent power distribution unit



Be different from traditional power distribution unit, SP4210 is definitely upgraded by adopting semi conductor chips instead of classic fuse and relays for power supply management and body control, it realized digital management of low-voltage wiring, which can be transmitted to the cloud and background in real time data delivery.

Application senario: 12V and 24V low-voltage power distribution system.

Get A Quote
Contact Us

Advantages

1. Compliant with 12V & 24V applications

2. Multiple I/O interfaces that can easily be adapted to vehicle architectures

3. Improved on-board diagnostic functionality using reliable, over current and short circuit detection,

along with thermal overload detection.

4. New load switching technology with precise control of current, dedicated to wide range of loads such

as electrical motors, wipers, bulb/xenon/LED lamps, sensors, etc.

5. E-MARK R10 approved

Parameters

Dimensions317L*220W*48H mm
Supply VoltageDC 9~32V
Operating temperature-40℃~85℃
Static Current<3mA
Digital input10 channels
Output
50A8 channels
15A34 channels
CAN interface1 channel

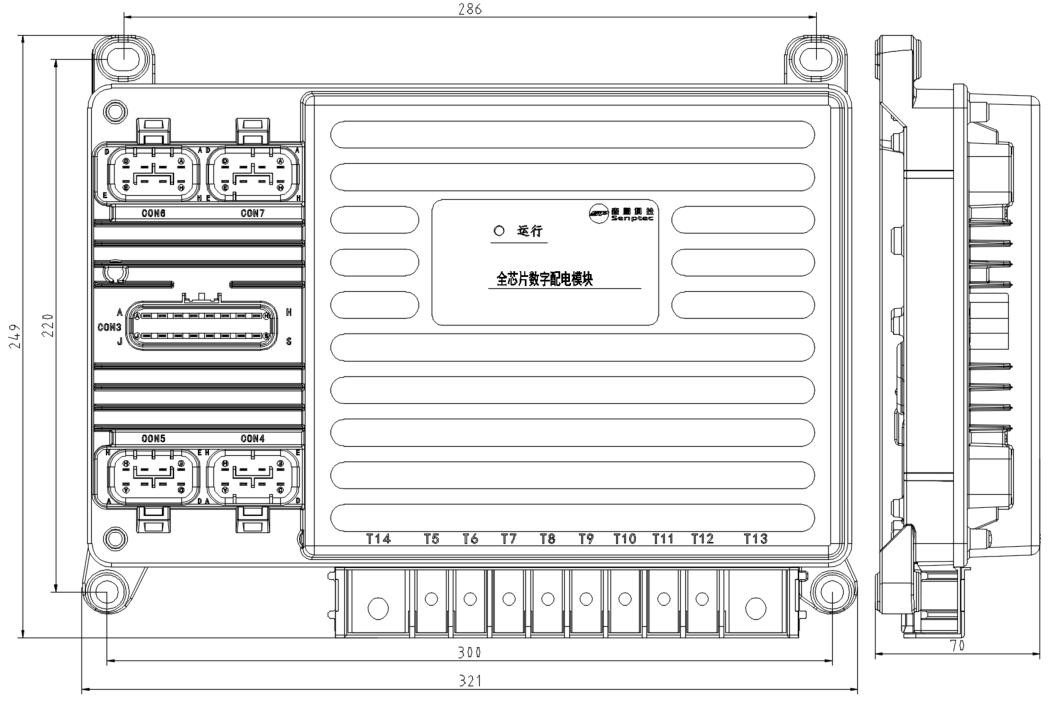

Dimensions

Smart power distribution unit SP4210
Smart power distribution unit SP4210
