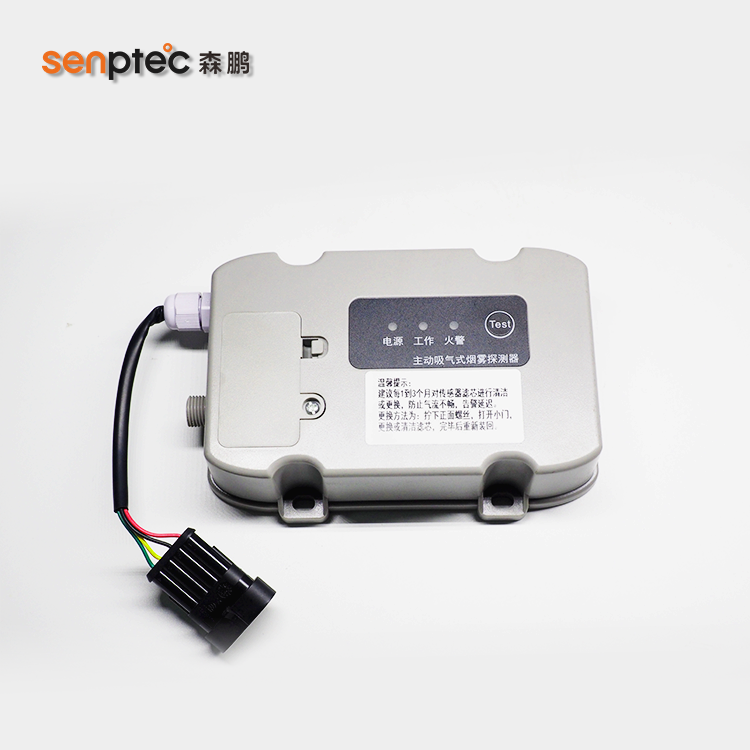

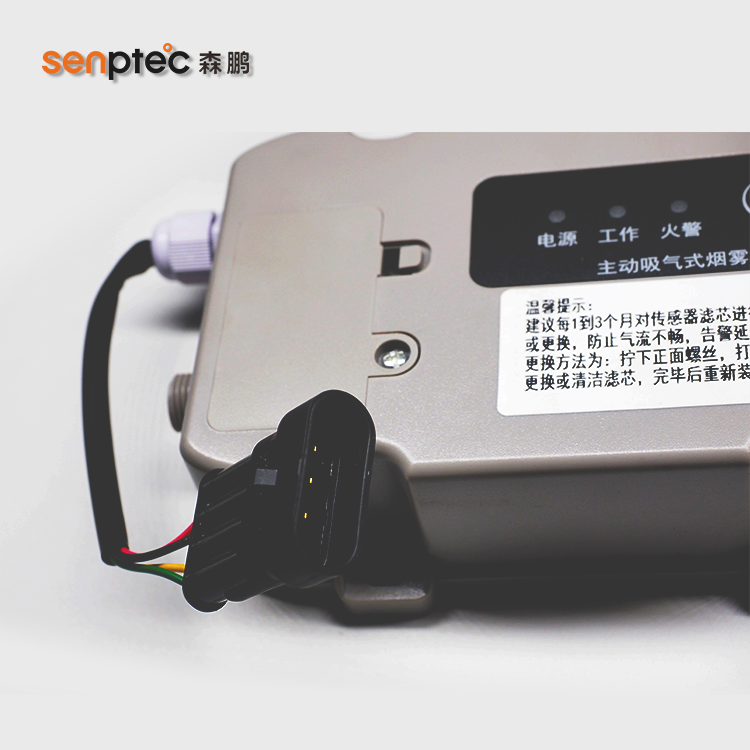

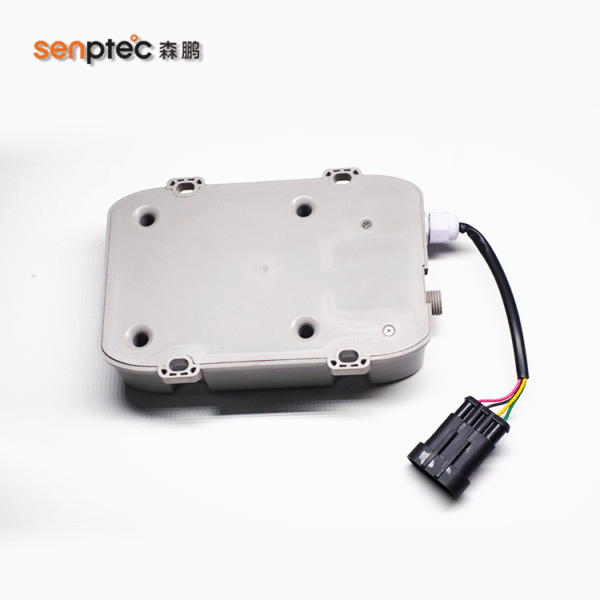

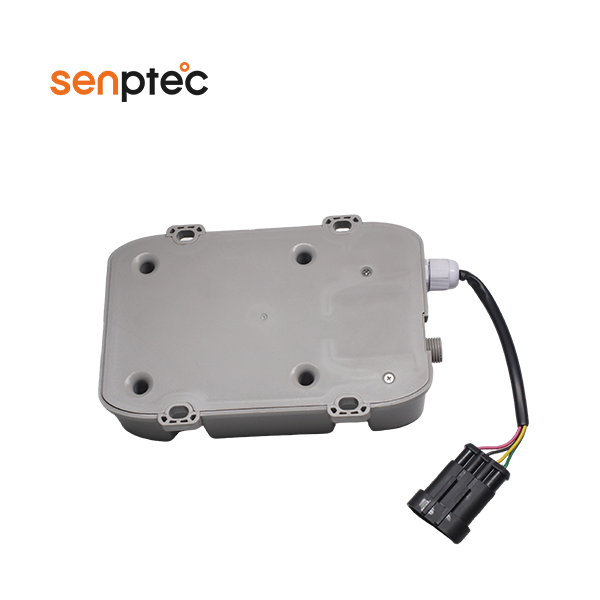

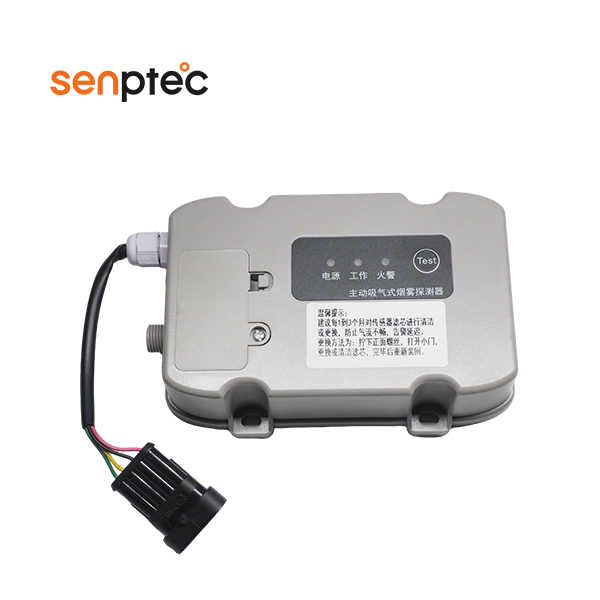

SP-YT series is an active vehicle smoke detection system
It is a smoke alarm device designed for new energy vehicle environment. Adopting suction air sampling, smoke particle concentration detection, CO (carbon monoxide) concentration detection, gas temperature detection, large-scale integrated circuit, intelligent composite alarm algorithms, with high alarm accuracy, strong anti-interference ability, low failure rate, etc., and can be fully adapted to high temperature, high humidity, vibration, and other harsh working environments.
Suction sampling
Sensor can raise the alarm by LED and buzzer
Communication interface: RS485, CAN

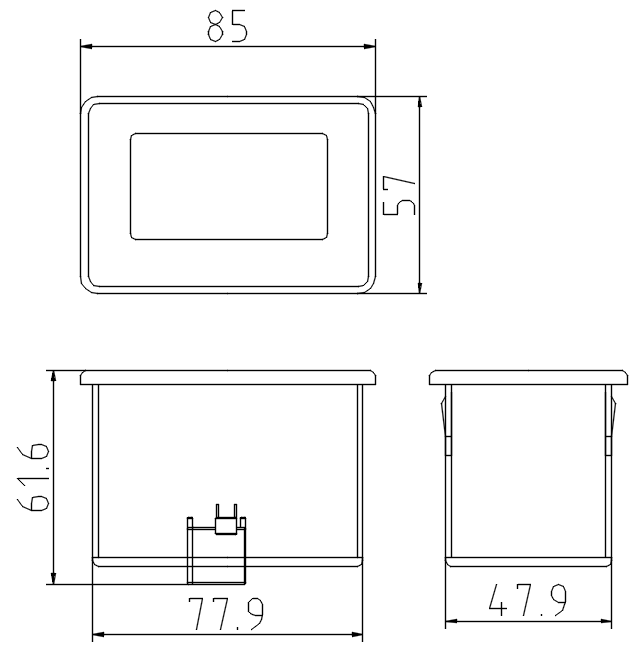

| Dimensions | 85L*57W*61.6H mm |
| Supply Voltage | DC16～32V |
| Operating temperature | -20℃~80℃ |
| Alarm threshold valueAdjustable) | Smoke concentration≥4%,Temperature≥85℃ |
