Parameters
| Model | SDP0521 |
| Dimensions | 944L*646W*609H mm |
| Supply Voltage | DC24V(18~32V) |
| Supply Air Pressure | 0.4MPa – 1 MPa |
| Number of CAN switches | 20 (No DNR switch: 24) |
| Number of hardwired switches | 2 |
| Adjustment range | Top and Bottom：±55mm Front and Rear: ±6.5° |
| Operating Temperature | -40℃～75℃ |
| Operating Temperature | <5A |
| Weights | 38.5+/-1 kg |

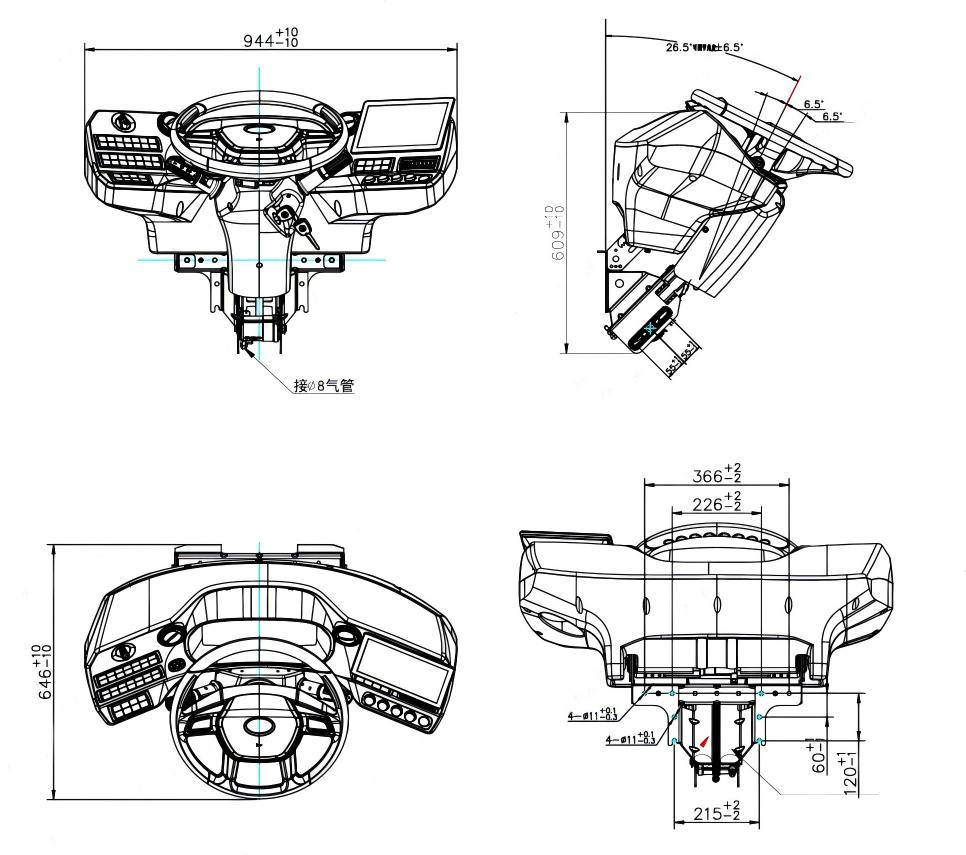

Dimensions
