Senptec CMS SVM610

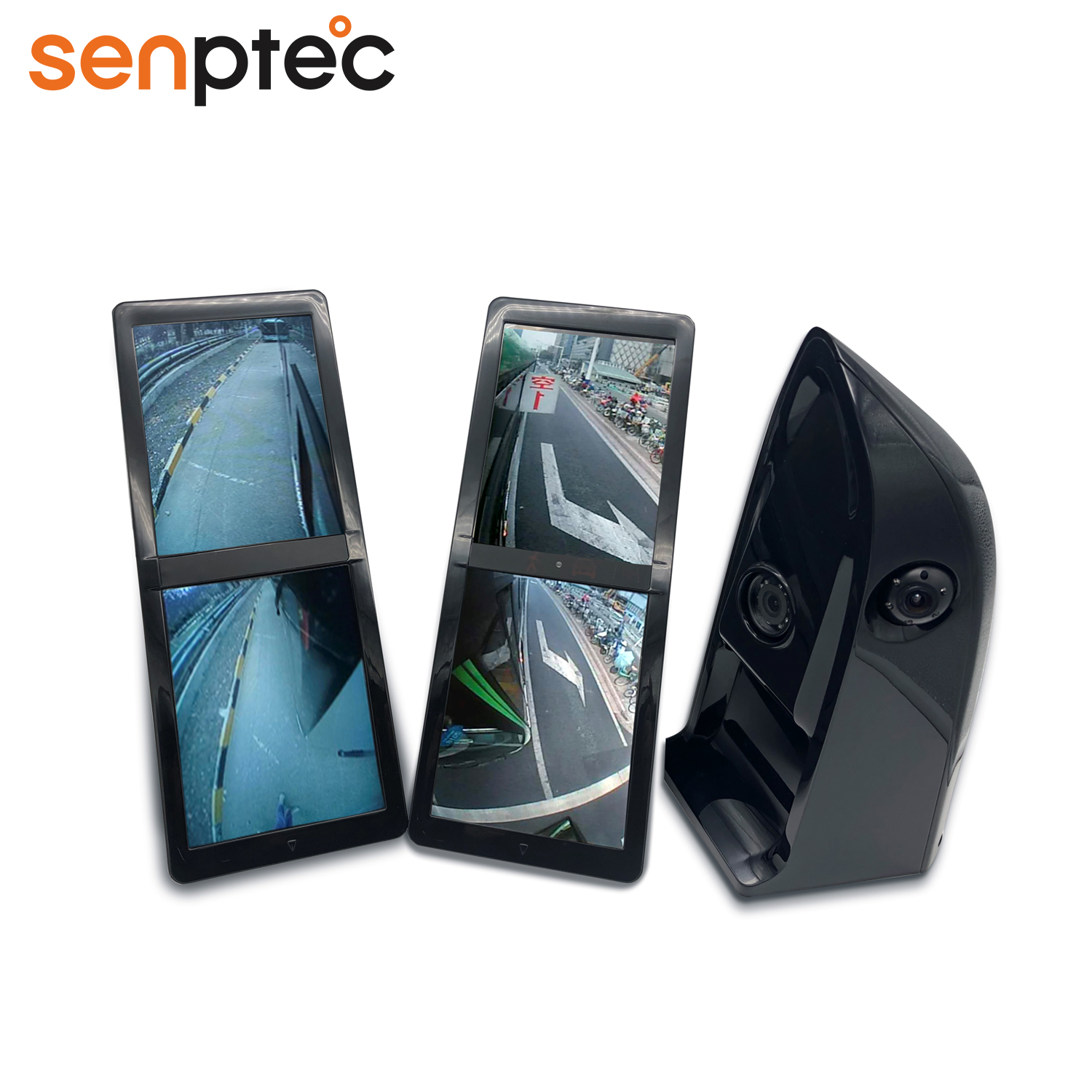

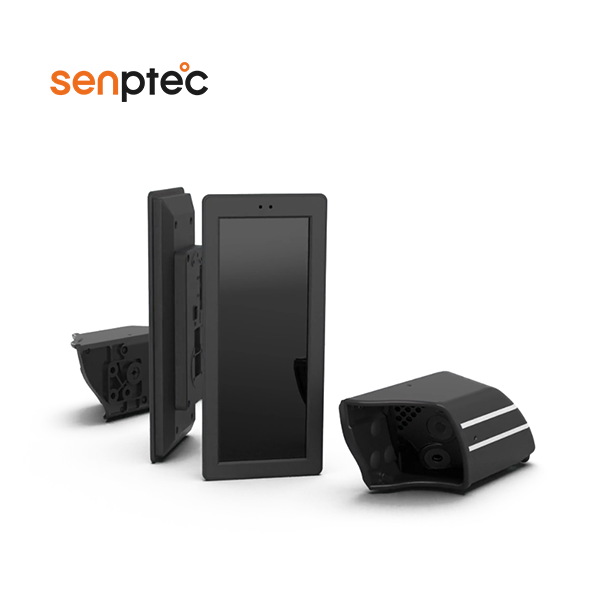

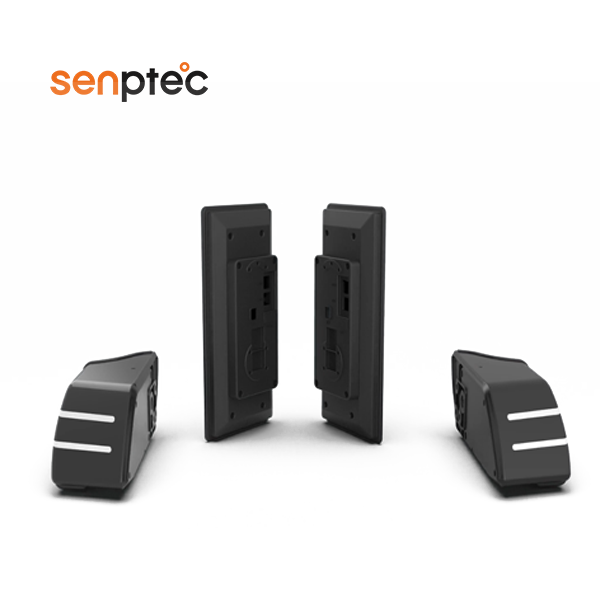

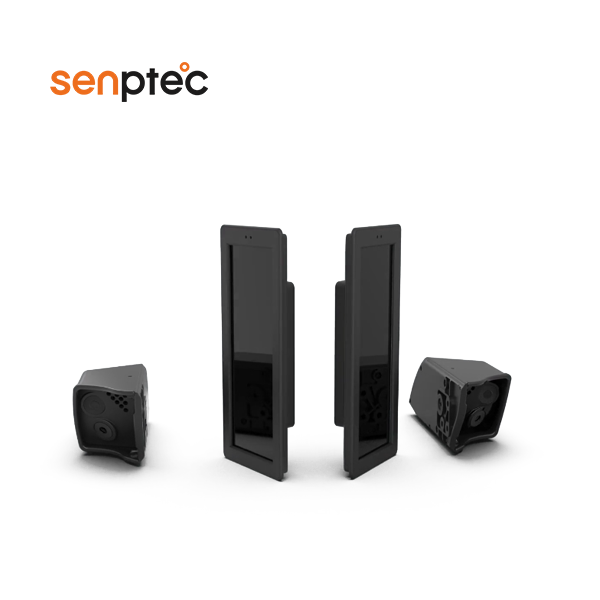

SVM610 is a Camera-Monitor System (CMS)



It was developed according to the requirements of (EU)ECE R46 and (CN)GB15084. It consists of two camera modules, two monitors and the required cables for a better view of the side of the vehicle, even in the blind spots of conventional mirrors.

Application senarios: bus and coaches, public transportation, road and off-road vehicles, etc.

Get A Quote
Contact Us

Advantages

R46, R10 and R118 approval

For field of vision Class II/IV and V/VI (Optional)

Heating of optics at low temperatures

Air curtain to keep rain out

Optional Camera Monitor System Palm Control Panel KB0605

Monitor Parameters (Class II/IV)



Dimensions(Monitor)340L*148W*44.2H mm
Size12.3 TFT 12.3 inch TFT
Aspect ratioPortrait 3 : 8
Resolution ratio720*1920
Luminance800 cd/m²
Frame rate60fps
Supply VoltageDC24V(16~36V)
Operating temperature-40℃~85℃
Ingress protection<100ms
Communication interfaceCAN

Monitor Parameters (Class V/VI)

Dimensions(Monitor)248L*171W*37.7H mm
Size10.1TFT 10.1 inch TFT
Resolution ratio1280*800
Luminance800 cd/m²
Supply VoltageDC24V(16~36V)
Operating temperature-40℃~85℃
Communication interfaceCAN

Camera Parameters

Class II1920*1080 60fps
Class IV1280*960 30fps
Class V/VI1280*720,30fps
Operating temperature-40℃~85℃

Dimensions

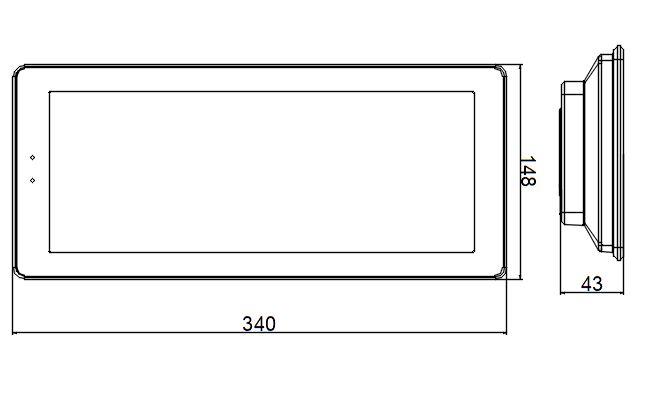

CMS SVM610 -Monitor(Class II IV)
CMS SVM610 -Monitor(Class II IV)

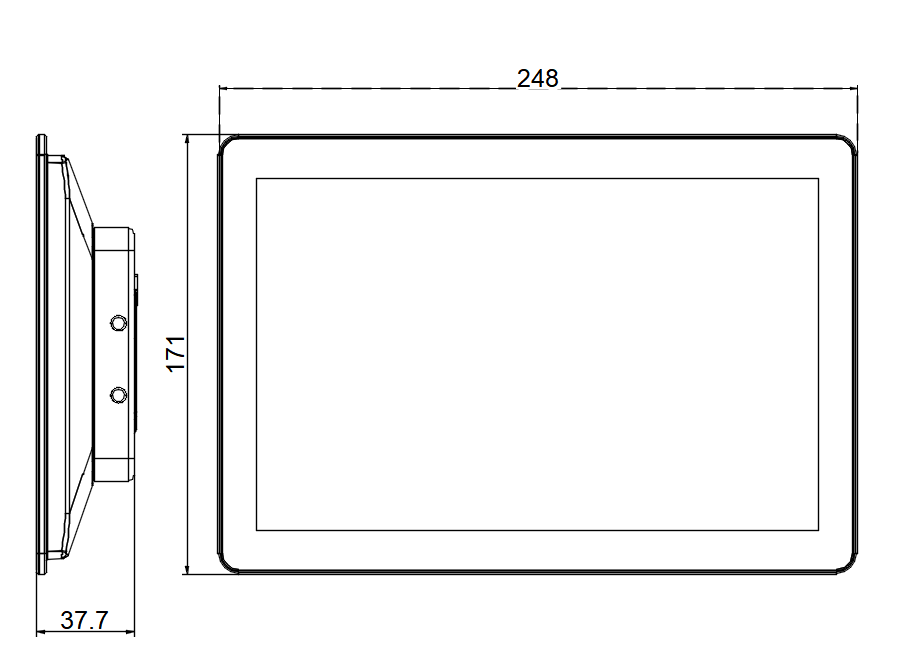

CMS SVM610 -Monitor(Class V VI)
CMS SVM610 -Monitor(Class V VI)

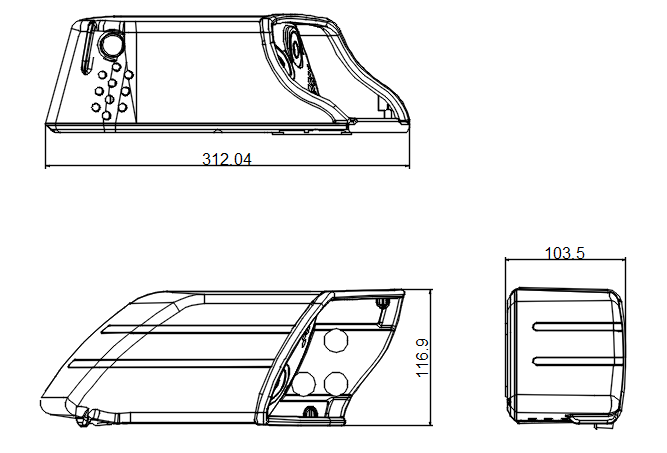

CMS SVM610 -Camera
CMS SVM610 -Camera

KB0605 Control panel is an optional config to work with Senptec CMS SVM610, it helps driver make easy adjustment of field view of displays on both sides for zoom in/out, dark/bright, etc.

Advantages

Easy use and convenient

CAN communication

Compliant with SAE J1939

Parameters

Dimensions85L*57W*36.8H mm
Supply VoltageDC1632V
Operating temperature-40~85
Static Current2mA
Communication interfaceCAN

Dimensions

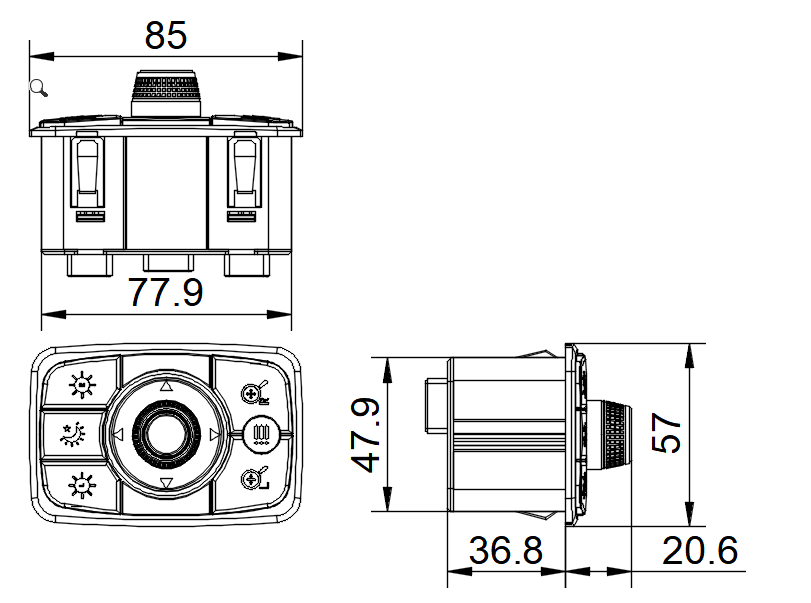

KB0605 CMS control paneL
KB0605 CMS control paneL

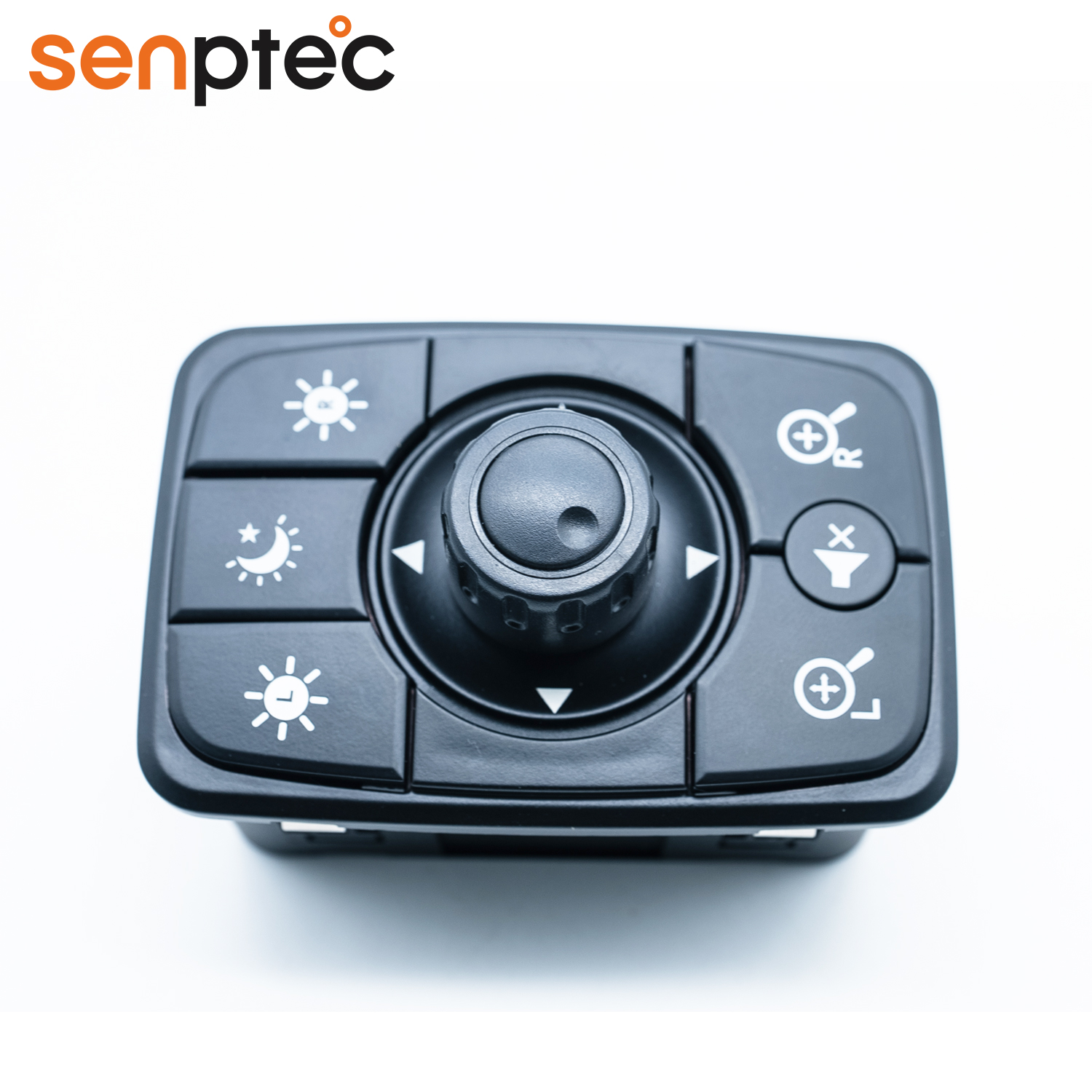

KB0605 CMS control button
KB0605 CMS control button

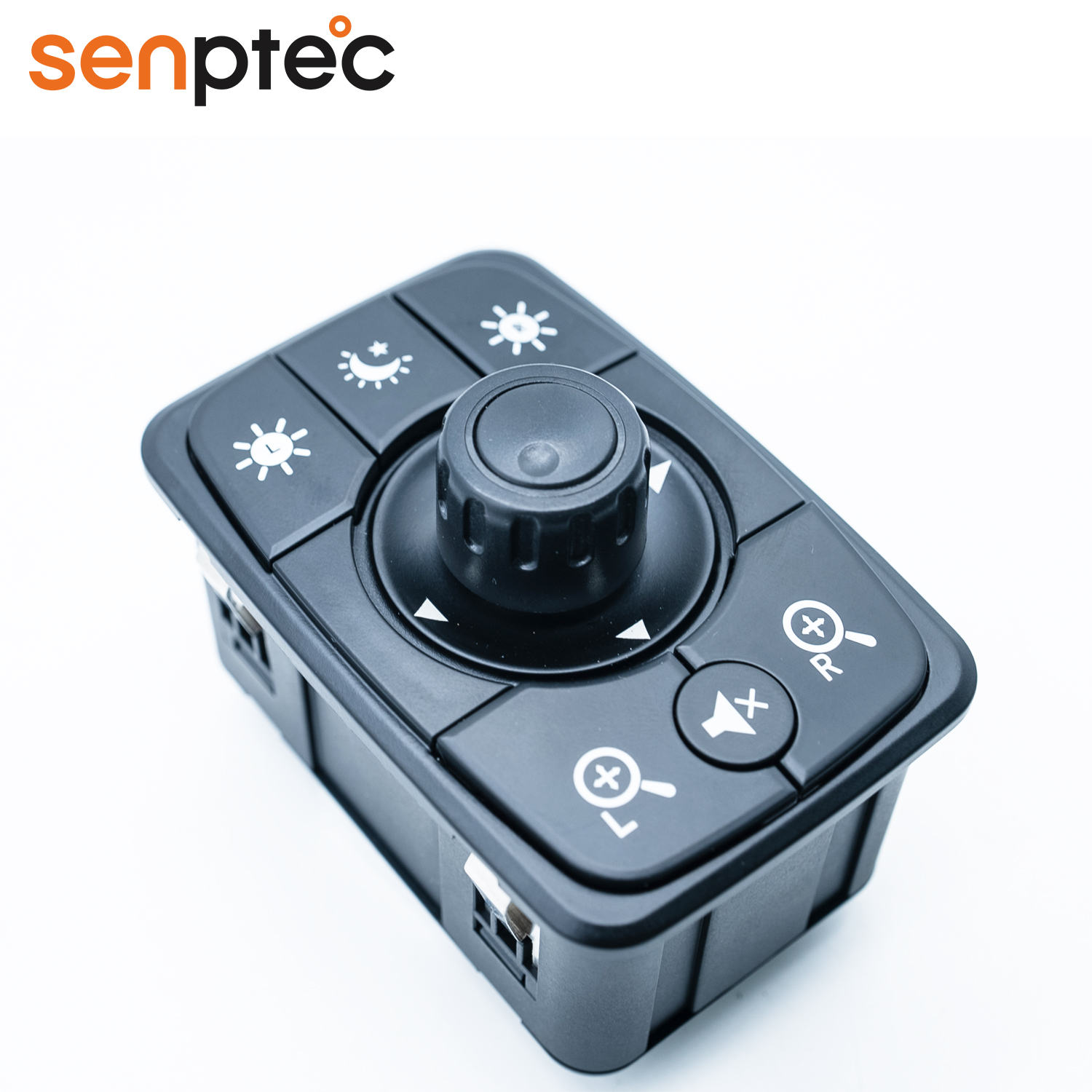

KB0605 CMS Adjustment
KB0605 CMS Adjustment

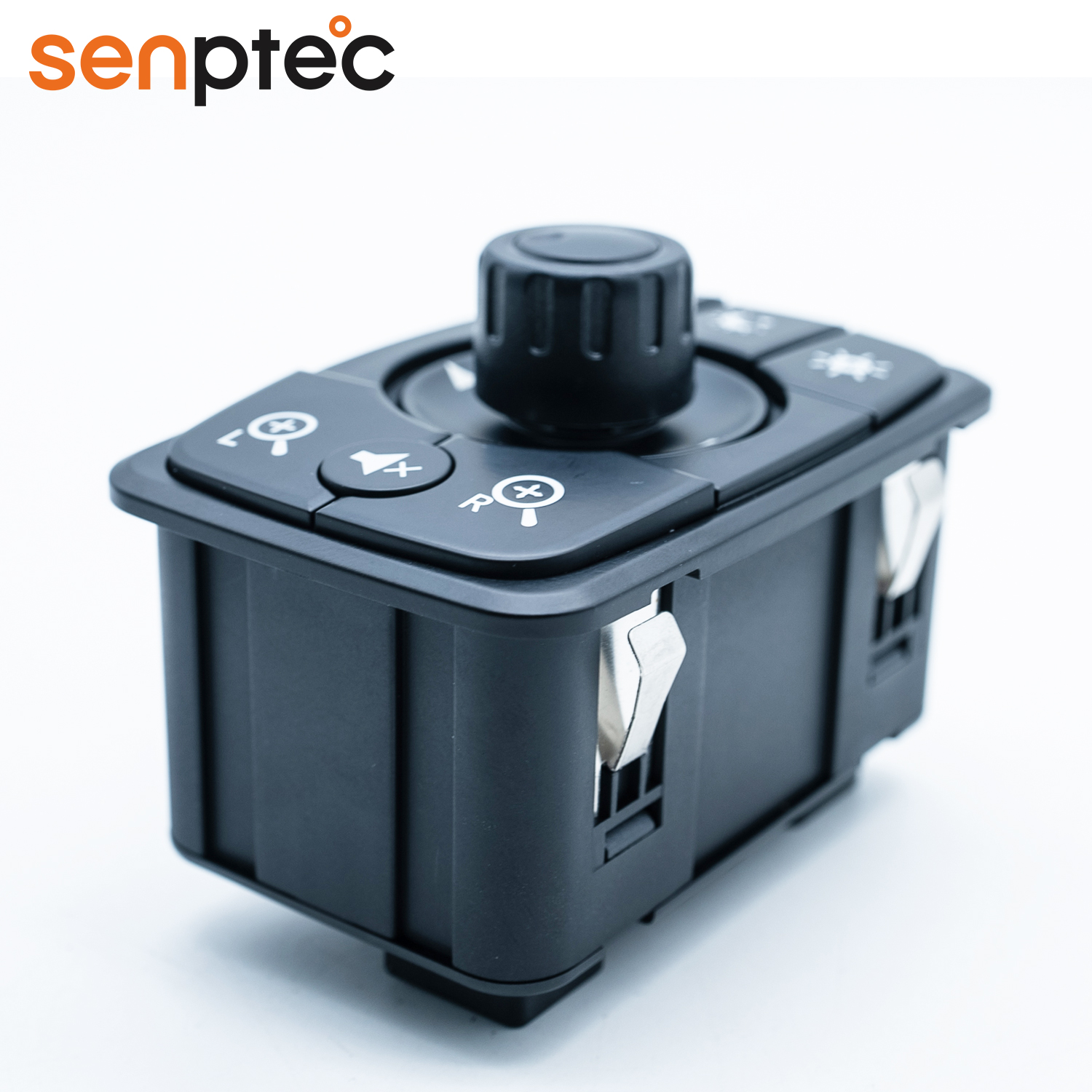

KB0605 adjust switch CMS
KB0605 adjust switch CMS
