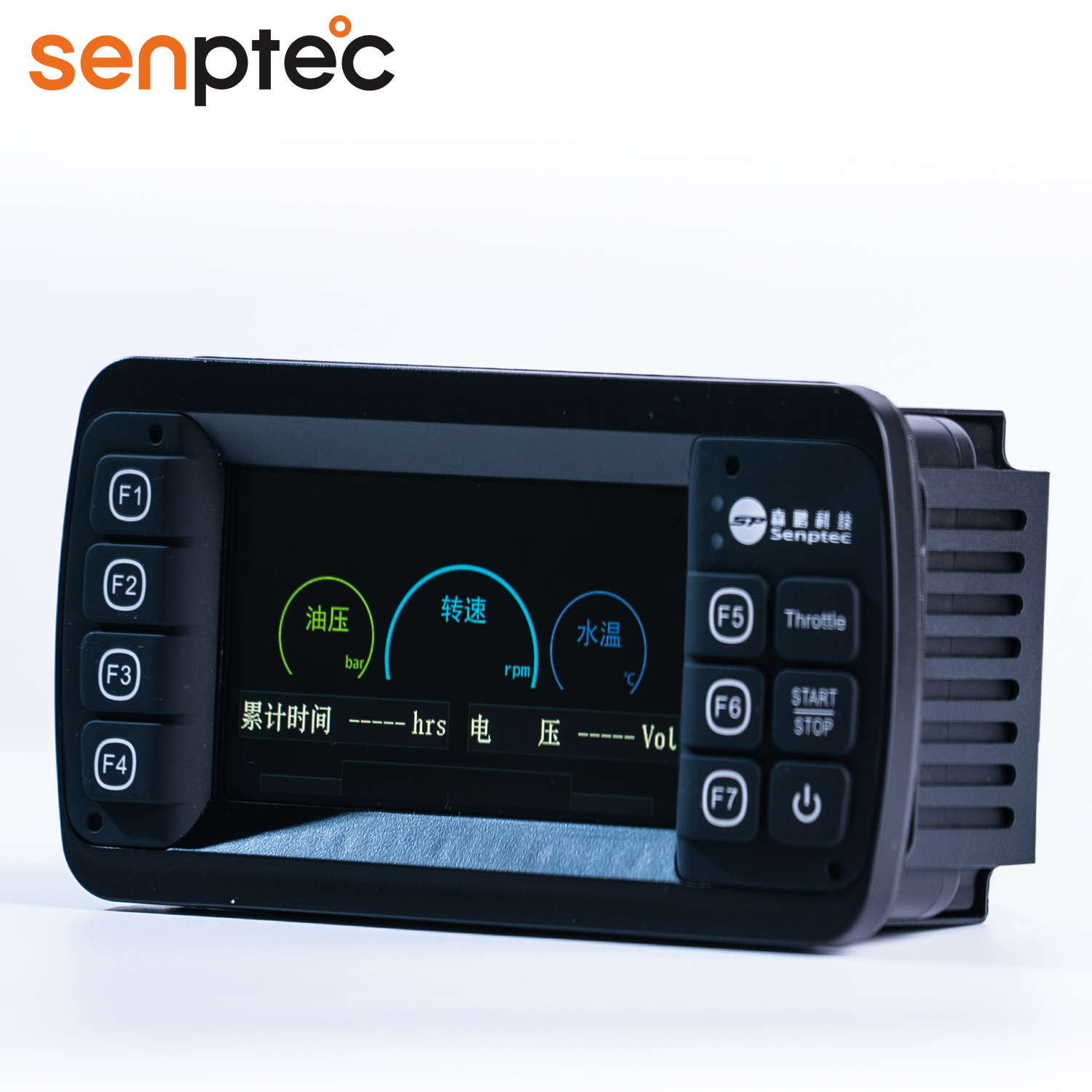

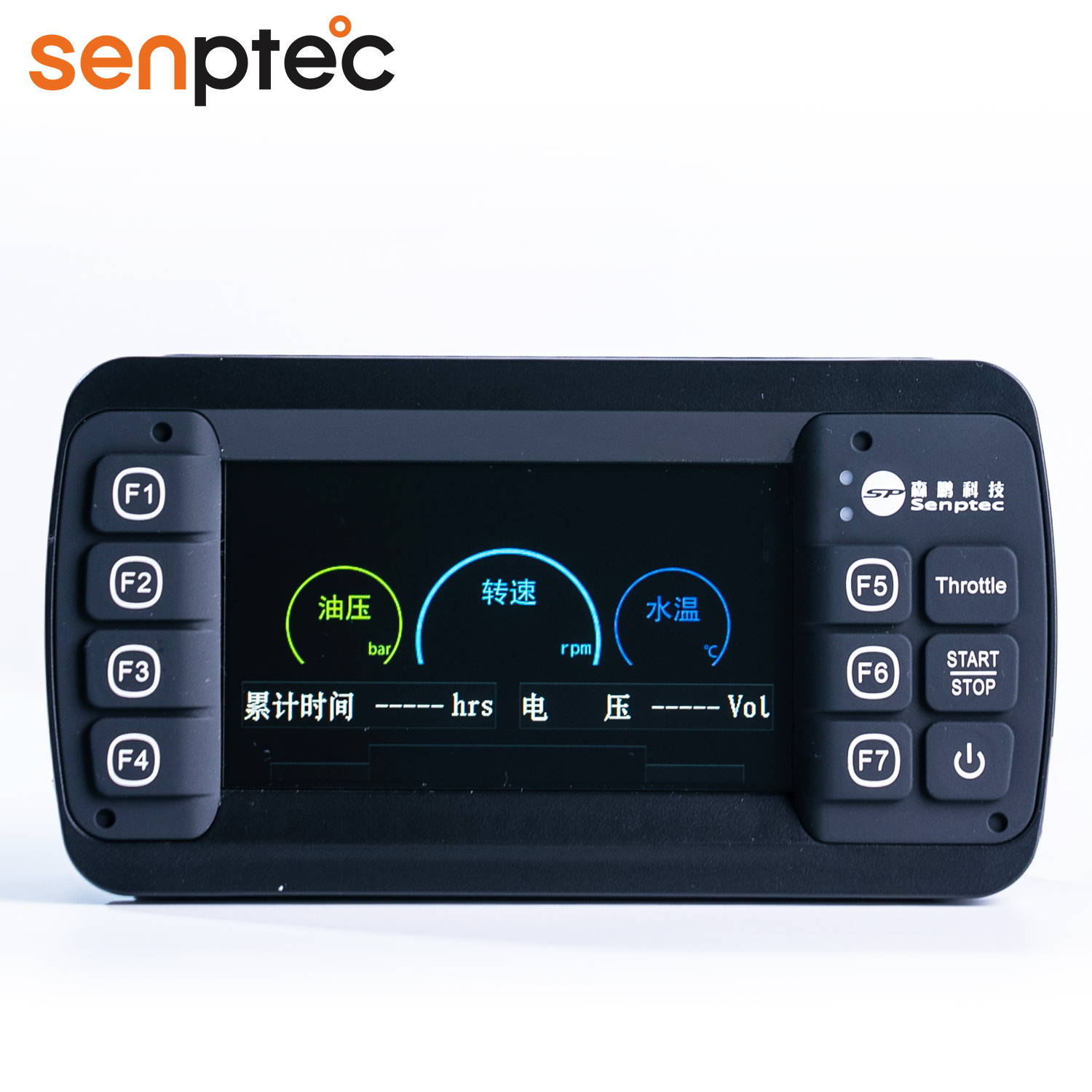

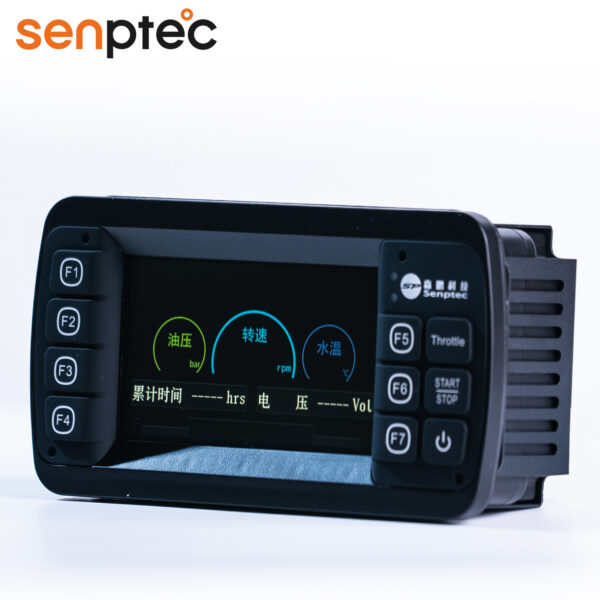

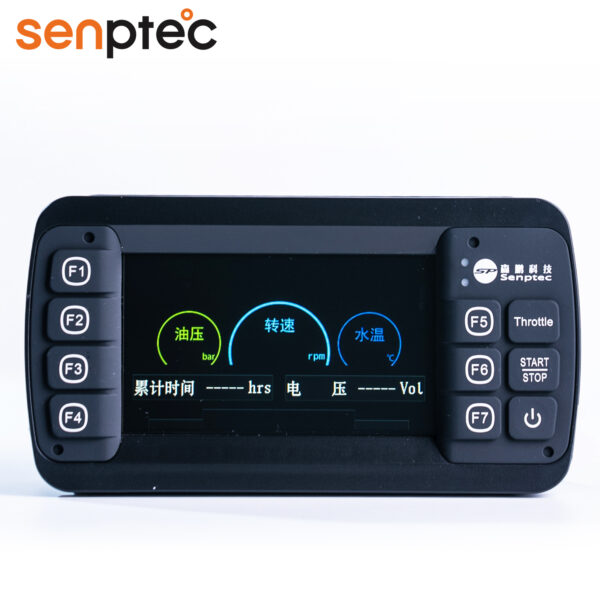

Senptec Engine Display SPC2-M2P

Working voltage DC9~32V
Working temperature -25℃~70℃
Vibration resistance In line with 10 ~ 500Hz sweep vibration standards
Overall dimensions 172.7L×92W×66.4H mm

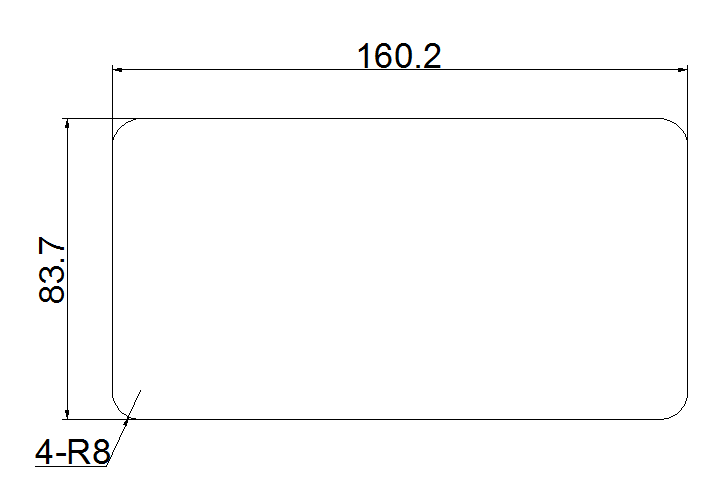

Instrument panel opening 160.2L×83.7W mm(±2mm)
Protection grade Positive IP66
Circuit protection With positive and negative polarity connection and reverse protection
Installation Flush mounting

Get A Quote
Contact Us

With two CAN communication interfaces and multiple Switching/analog/frequency/power output I/O ports;
Can display engine speed, water temperature, oil temperature, oil pressure, voltage, accumulated time, fuel consumption, fault information and maintenance, etc., menu list is customized.
Integrates ignition, shutdown, diagnostic switch and all kinds of engine indicators, etc.
In accordance with J1939 agreement, suitable for cummins, Weichai, Yuchai and other domestic and foreign electronic control engines;
Independent research and development, professional automotive components quality assurance;
Typical applications: Engineering Machinery, Special Vehicles, Generator Set, Road and Bridge, Marrine, Petroleum(oil), Mining Equipment Industry, etc.

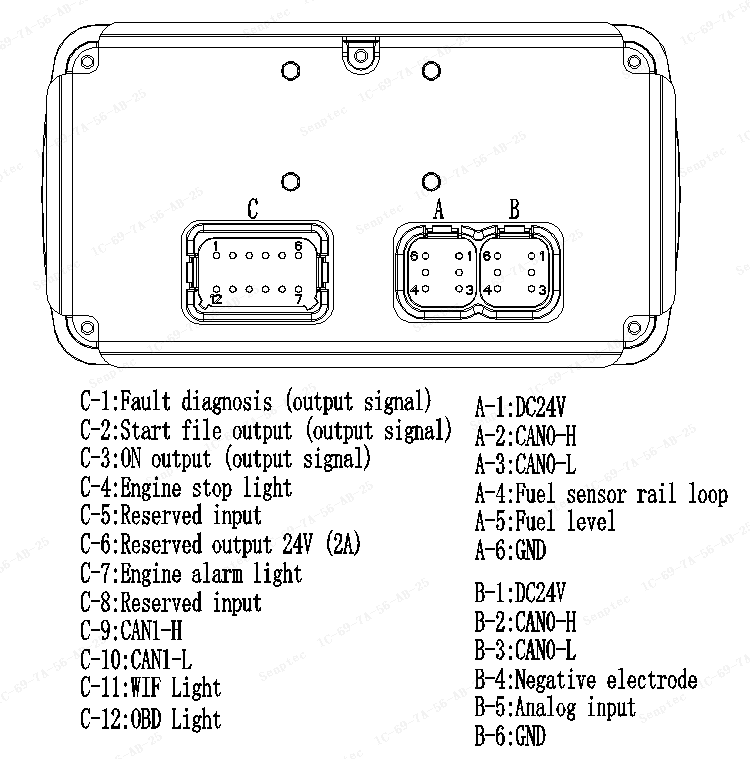

4.3' engine display pin definetion
4.3' engine display pin definetion

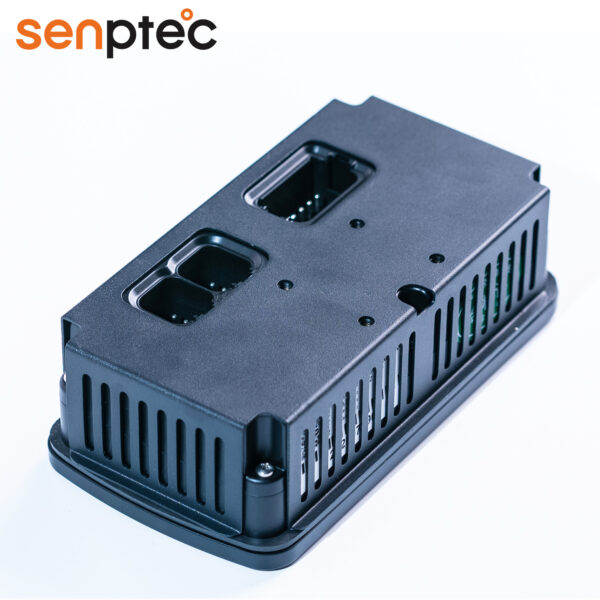

sideview of engine monitor display
sideview of engine monitor display

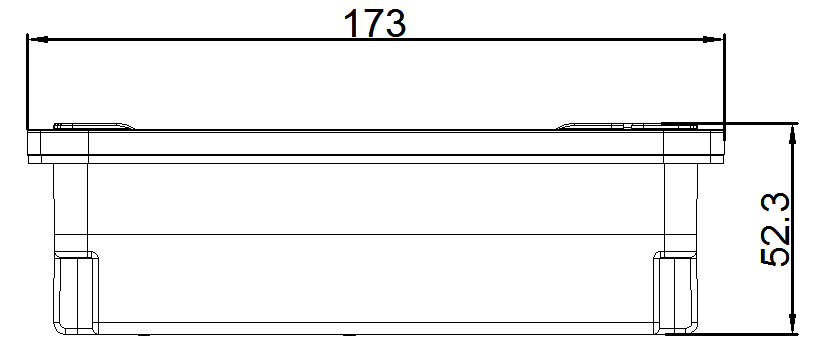

topview prifile of engine display
topview prifile of engine display
