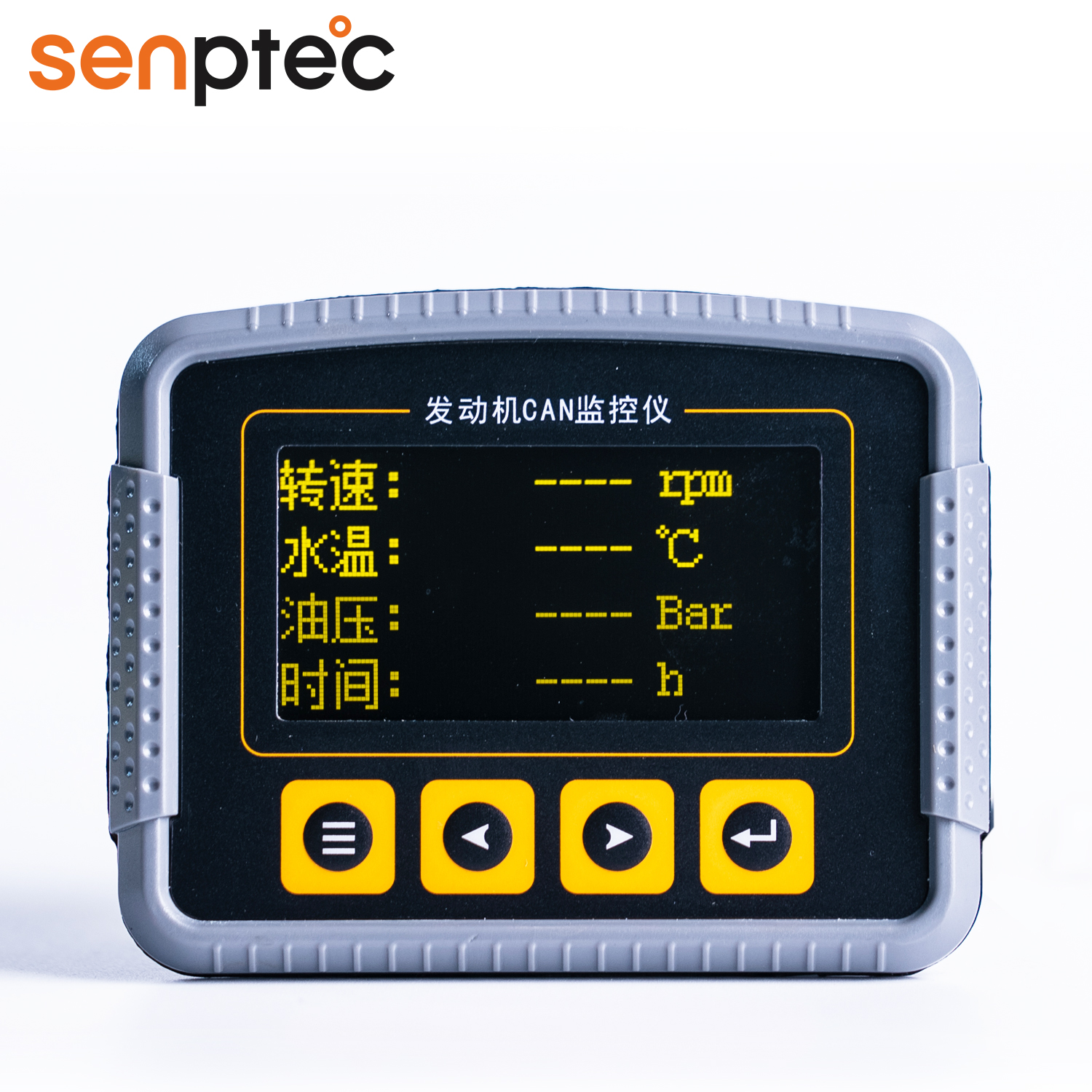

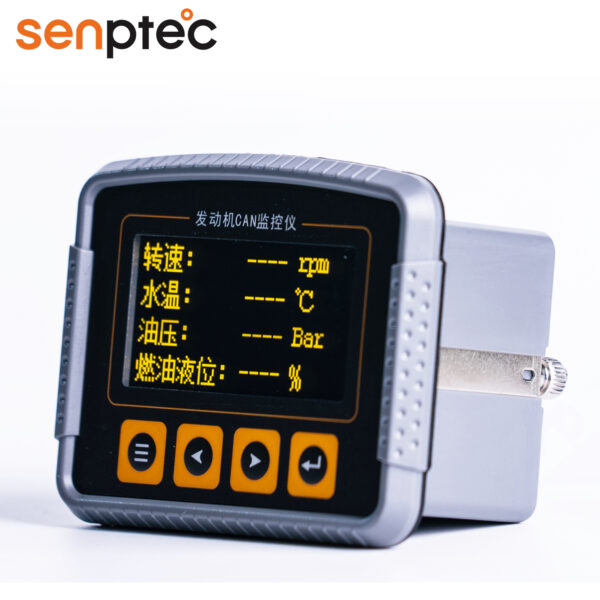

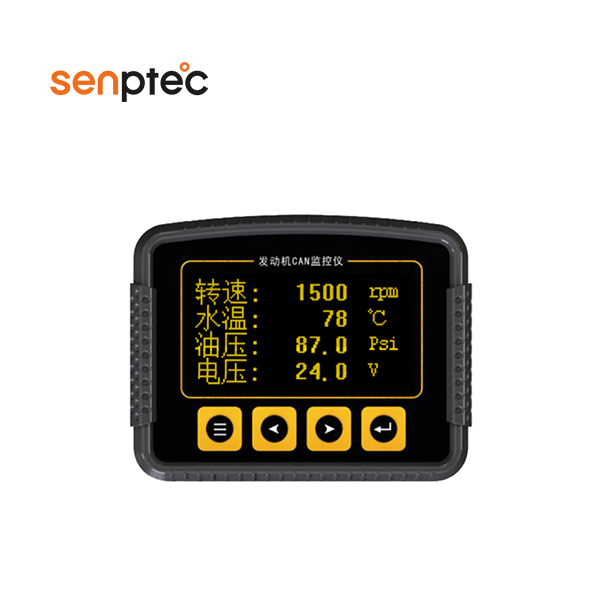

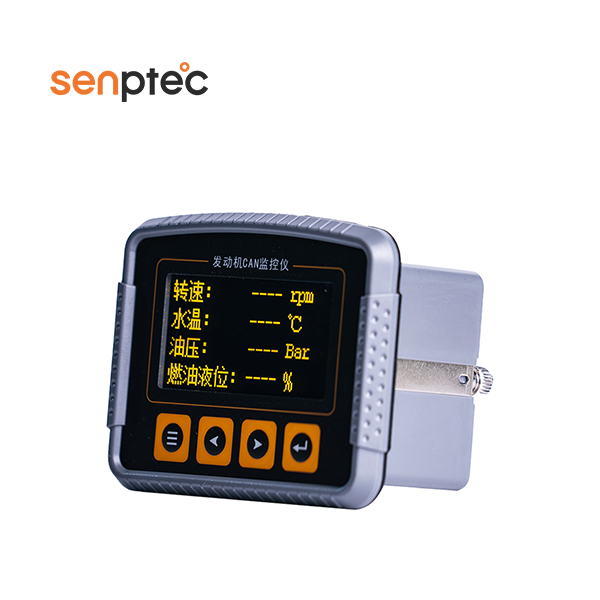

Senptec Engine Display SPC1-M101

Working voltage DC9~32V
Working temperature -35℃~80℃
Vibration resistance In line with 10 ~ 500Hz sweep vibration standards
Overall dimensions 101L×78.9W×58H mm
Viewing Angle 170°
According to the effect Clearly visible in the sunlight
Protection grade IP67
Circuit protection With positive and negative polarity connection and reverse protection

Get A Quote
Contact Us

Functional  Features

  • With CAN communication interface;
  • function 1: can display engine speed, water temperature, oil pressure, voltage, accumulated time, engine failure and other information, display content can be customized according to customer requirements;
  • function 2:1 4-20mA standby input, 1 analog standby input;
  • Conform to the J1939,Suitable for Cummins, Weichai and other domestic and foreign engines;
  • Independent research and development, professional automotive components quality assurance.

Typical applications

  • Engineering Machinery, Special Vehicles, Sanitation Equipment, Generator Set, ETC.
  • Road and Bridge, Ship, Petroleum(oil), Mining Equipment Industry and Fire Industry, ETC.

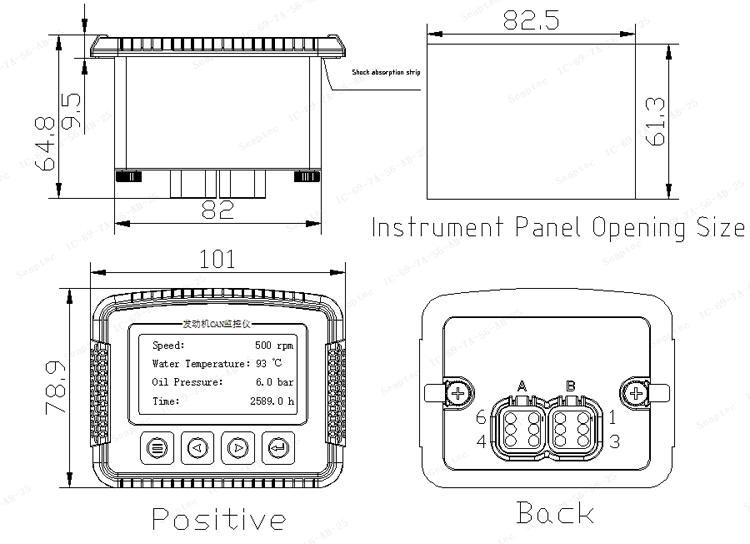

engine display outline profile
engine display outline profile
