Senptec Touchscreen Display KP1004

KP1004 is an Android Control Panel



KP1004 Control Panel adopts a 10.1 inch android control screen with entertainment function, it consists of high resolution 12.3 inch LCD touchscreen and centre control console, which integrates function of 360-view, mobile communication, navigation, Bluetooth, WIFI, radio, and CAN communication.

Application senarios: bus and coaches, public transportation, road and off-road vehicles, etc.

Get A Quote
Contact Us

Advantages

10.1 inch TFT

Android 9.0

Dedicated graphics/video processor allowing 8 channel real time video display

Navigation, Video

Integrated 360 Around View Mainframe

Compliant with SAE J1939

CAN protocol conmmunication

Parameters

Dimensions248L*171W*37.9H mm
Supply VoltageDC24V(18~32V)
Operating temperature-30℃~75℃
Resolution ratio1280*720
OSAndroid 9.0
 Video Input8 channel(Video format:CVBS/AHD)
Audio Output4*25W
CAN interface1 channel(CVBS

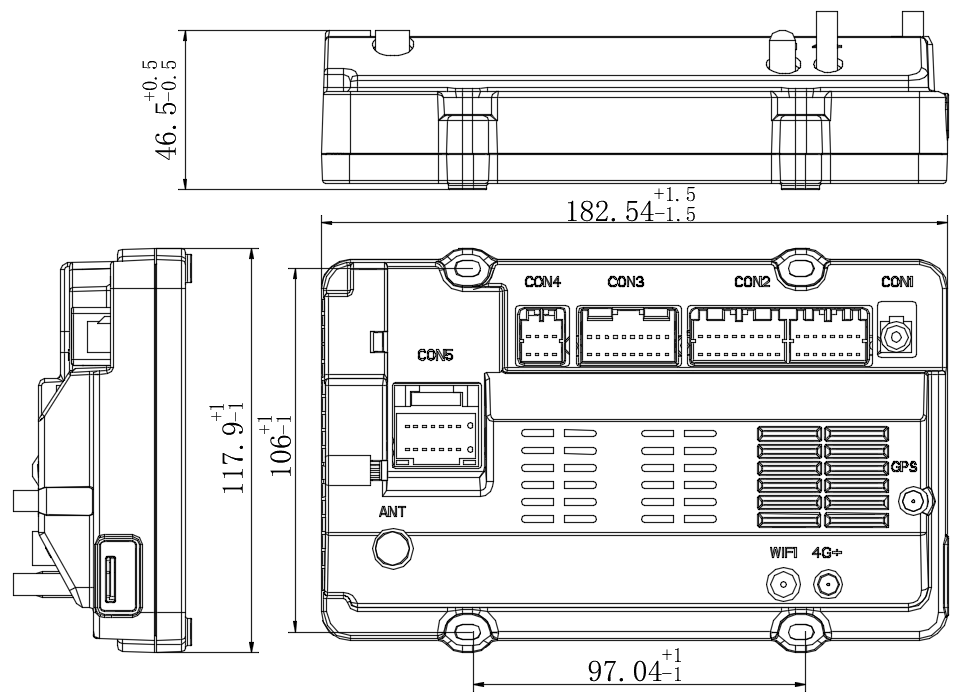

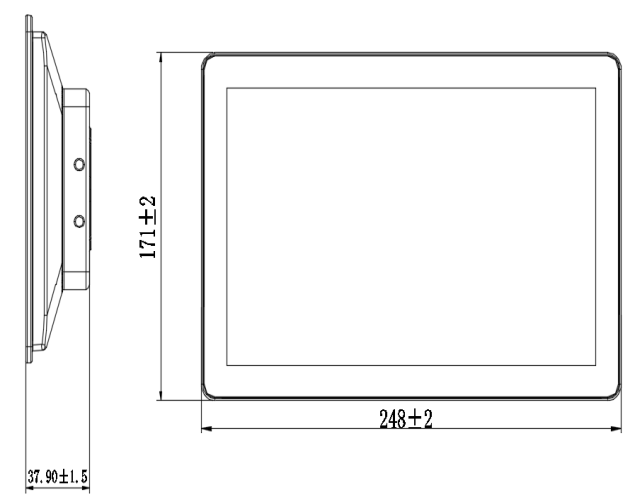

Dimensions

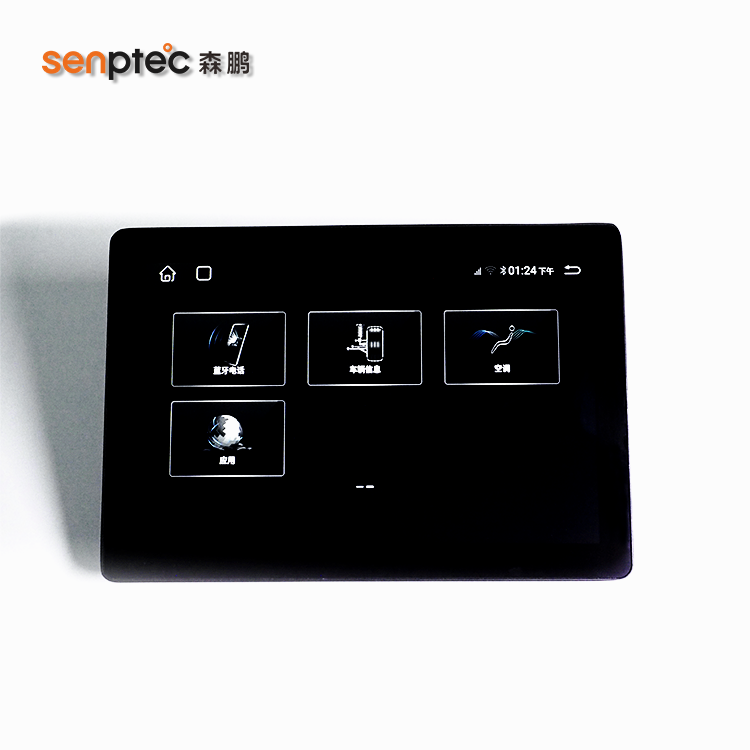

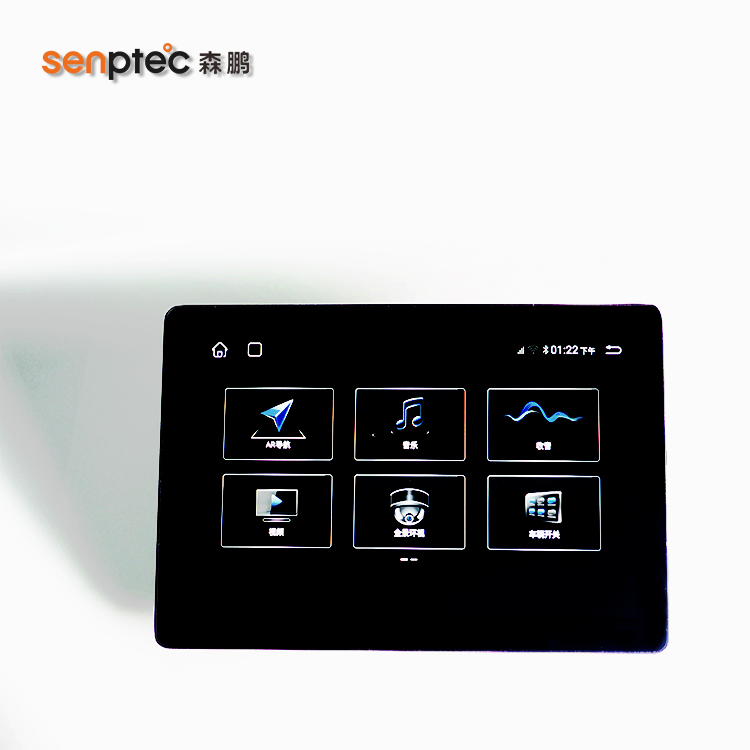

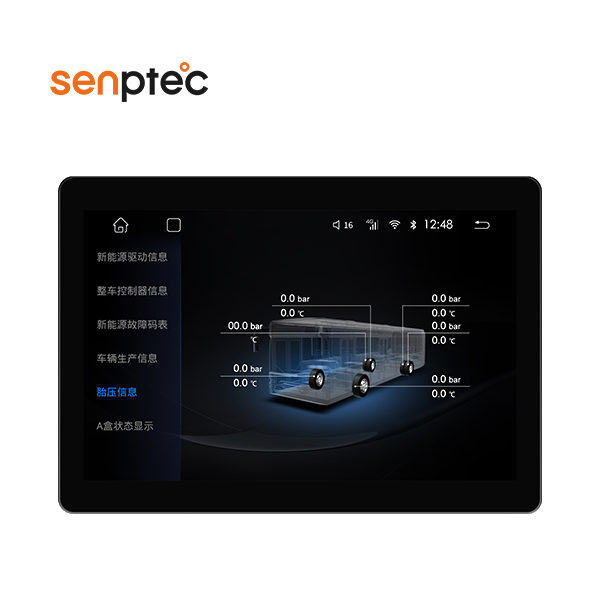

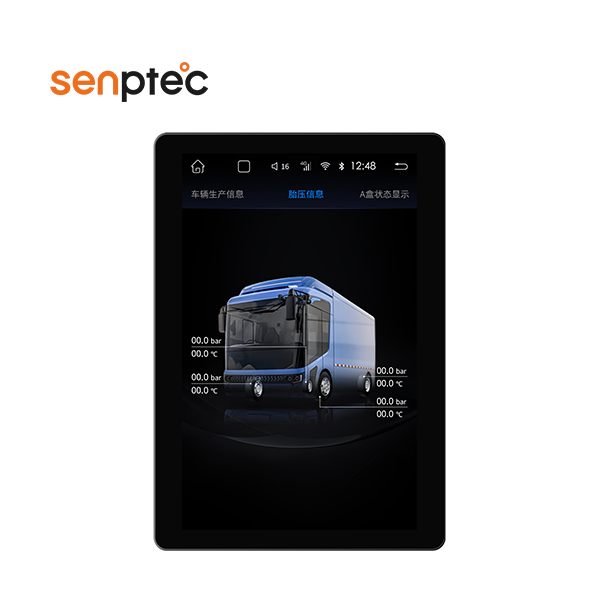

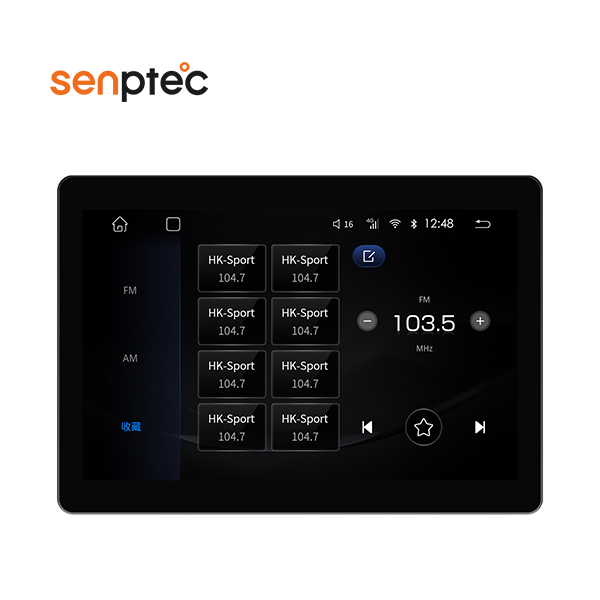

10.1’inch Android Control Panel KP1004
10.1’inch Android Control Panel KP1004
10.1’inch Android Control Panel KP1004
10.1’inch Android Control Panel KP1004
