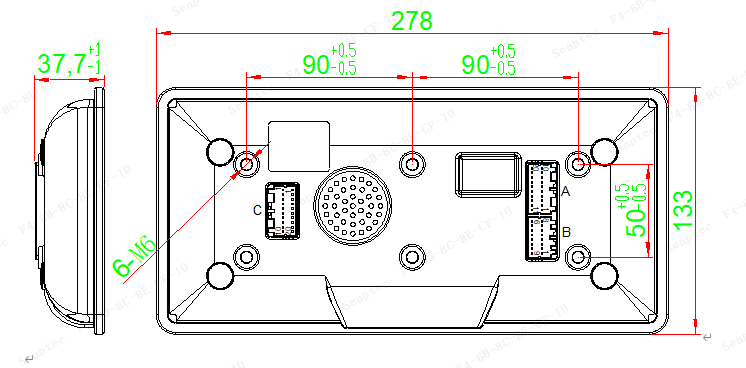

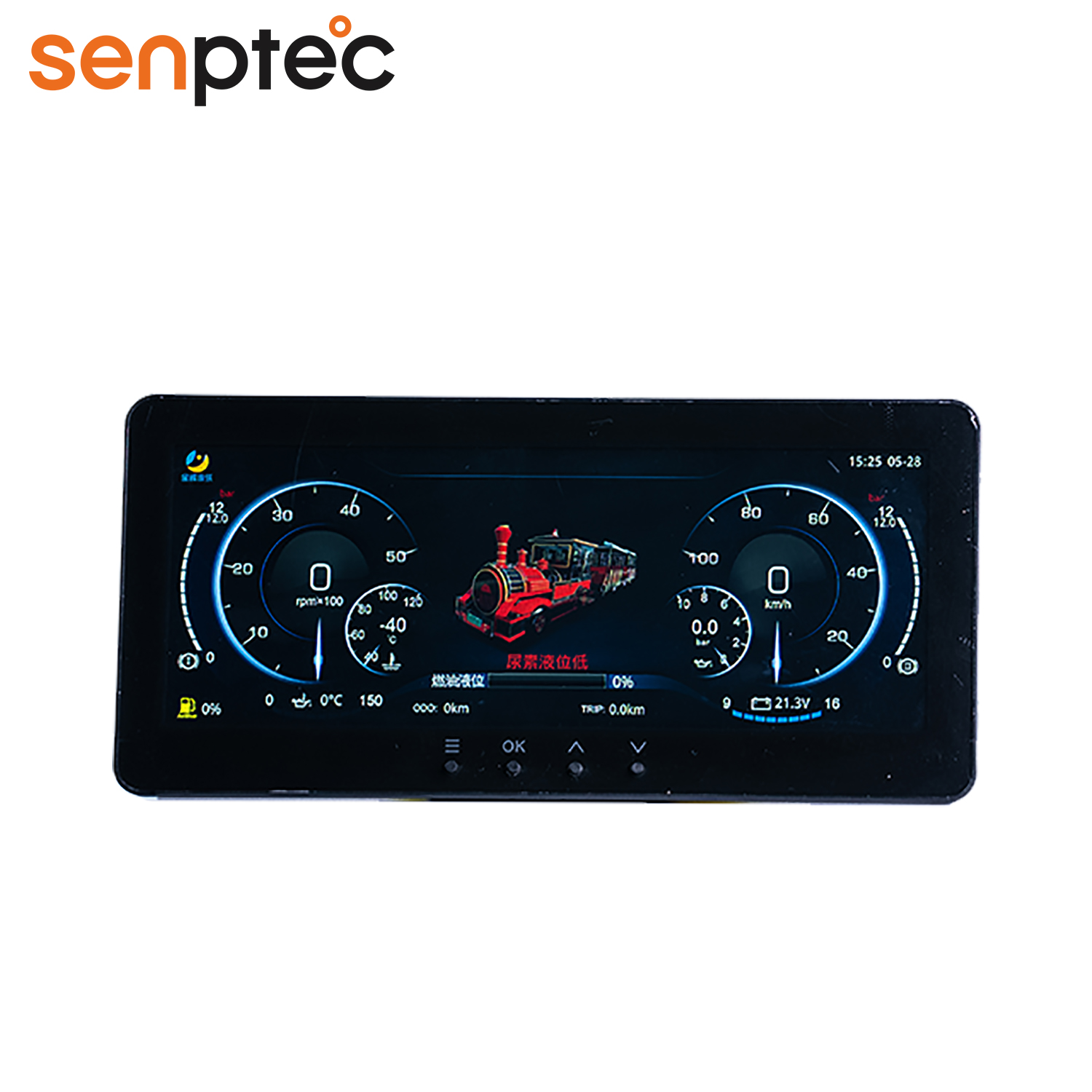

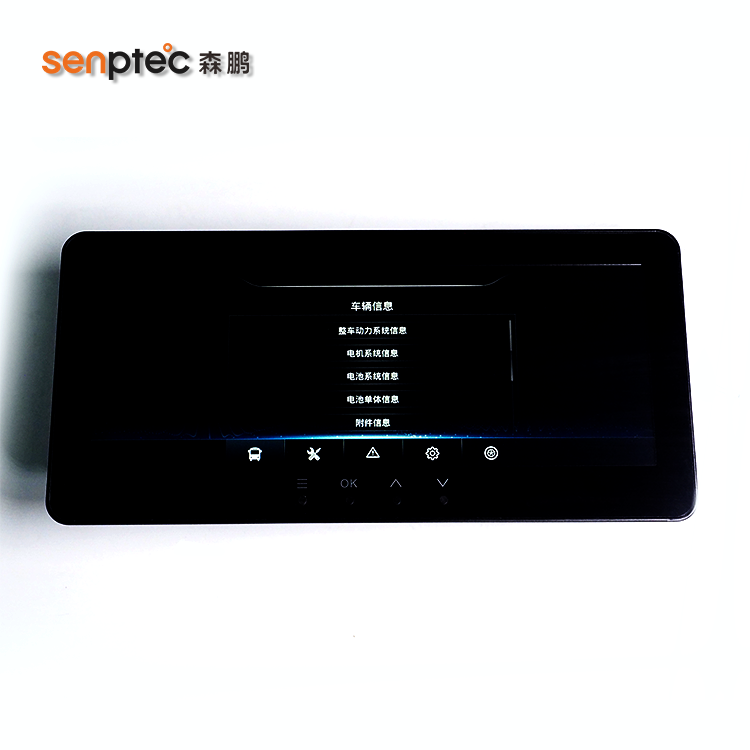

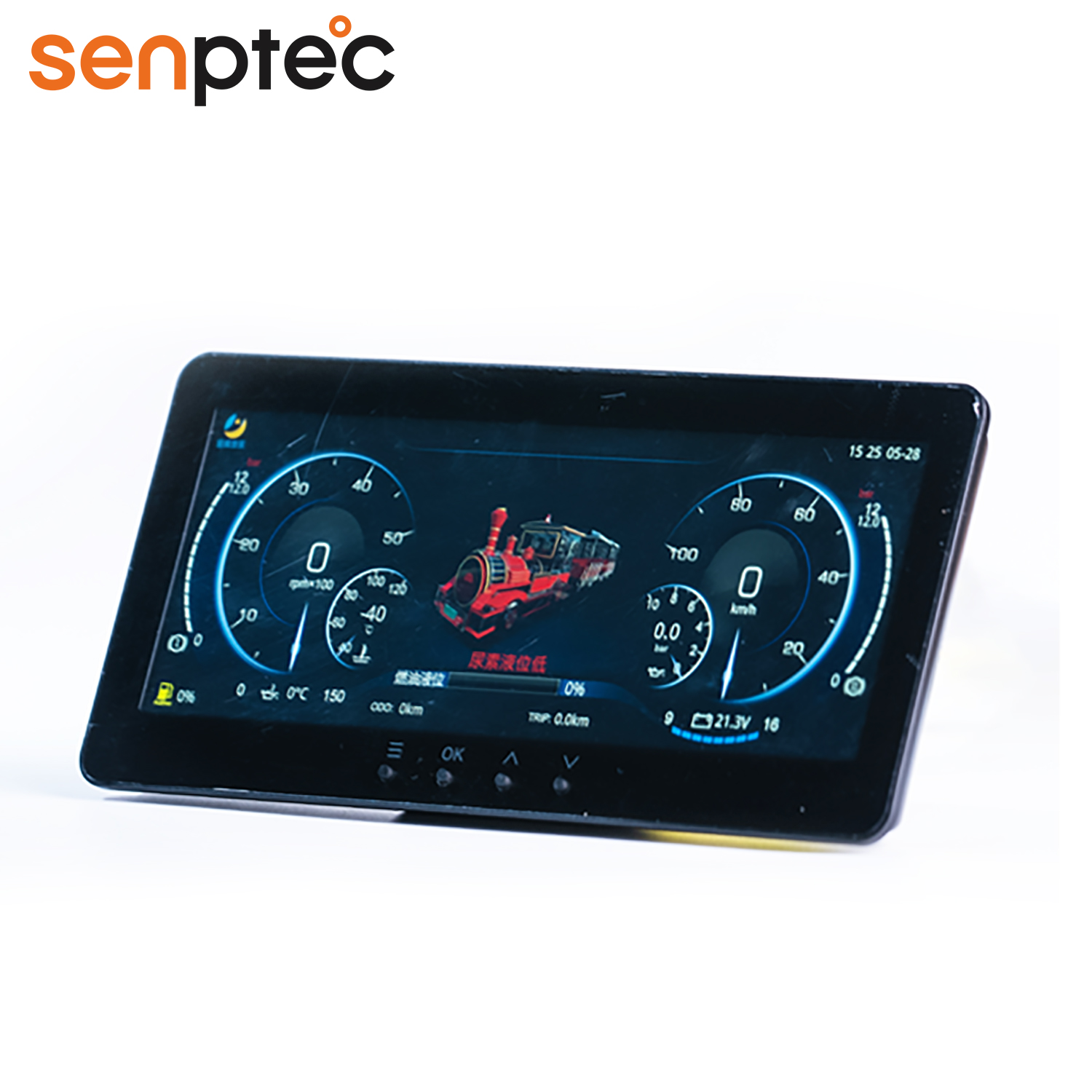

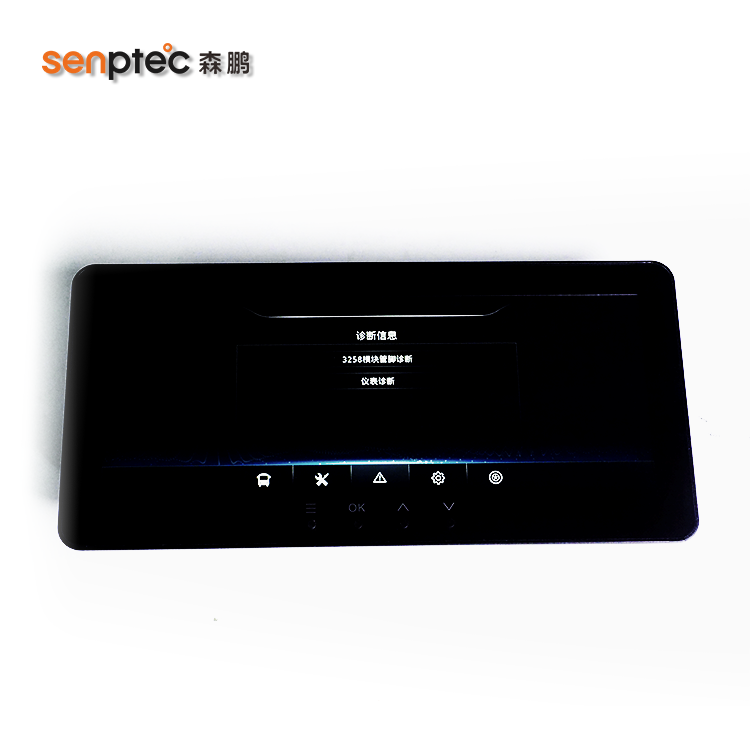

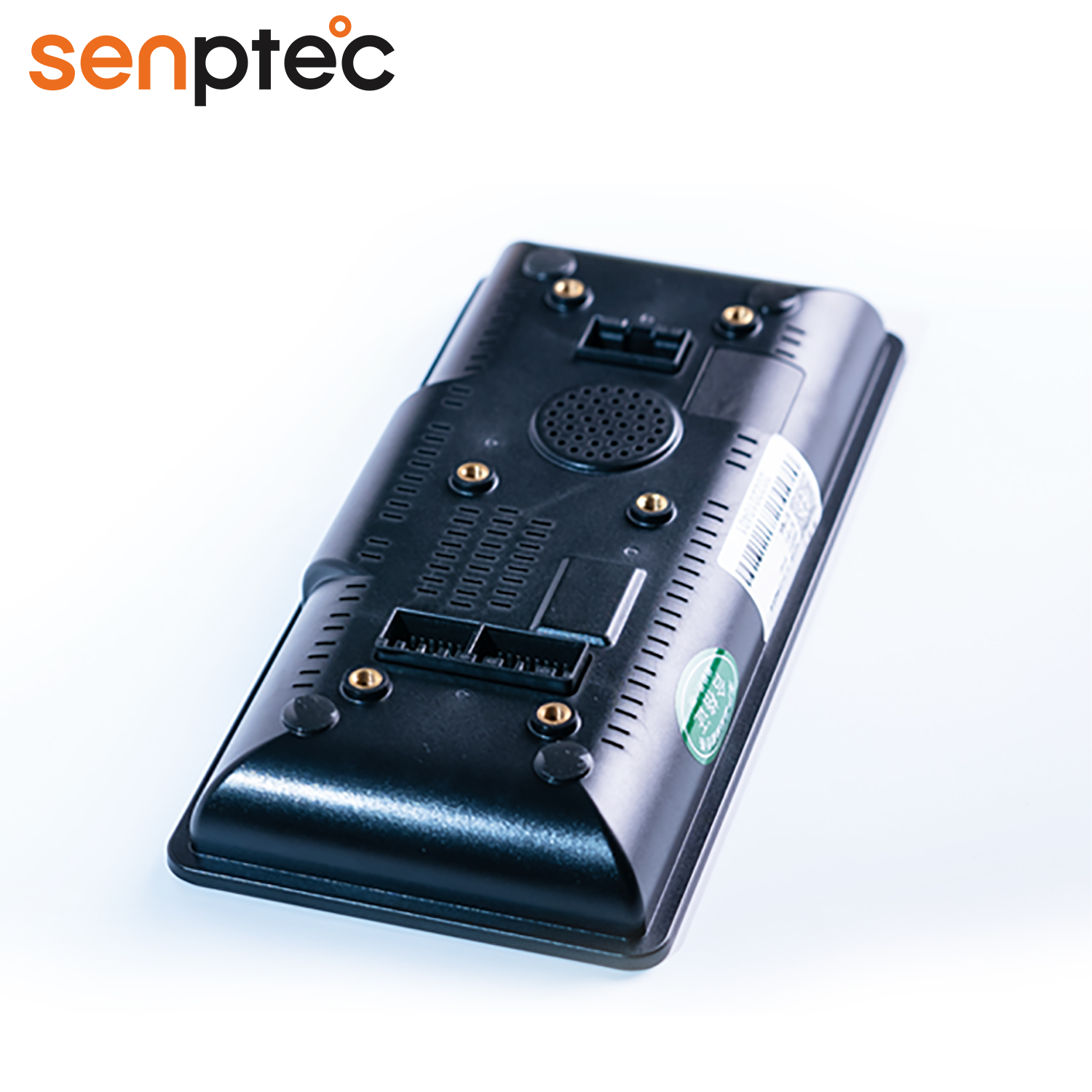

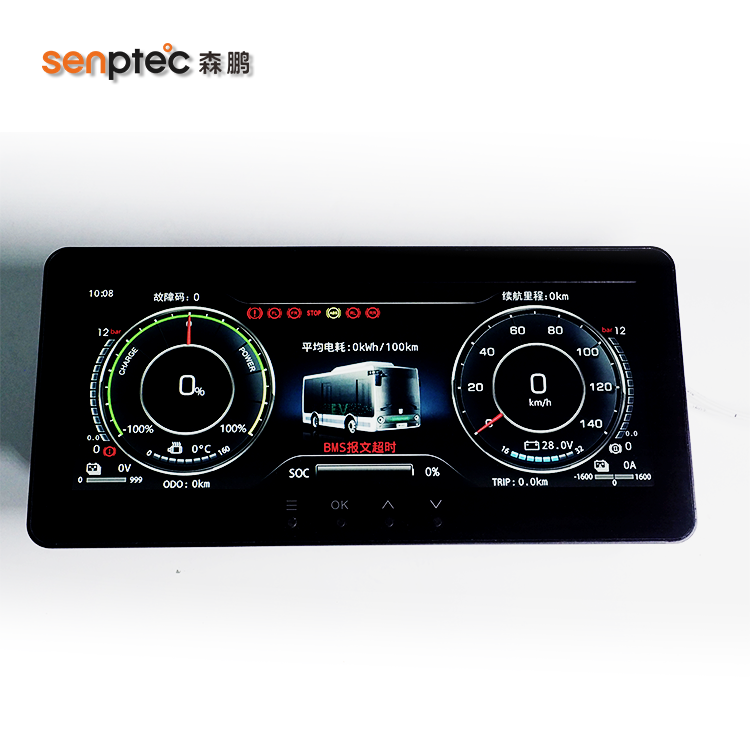

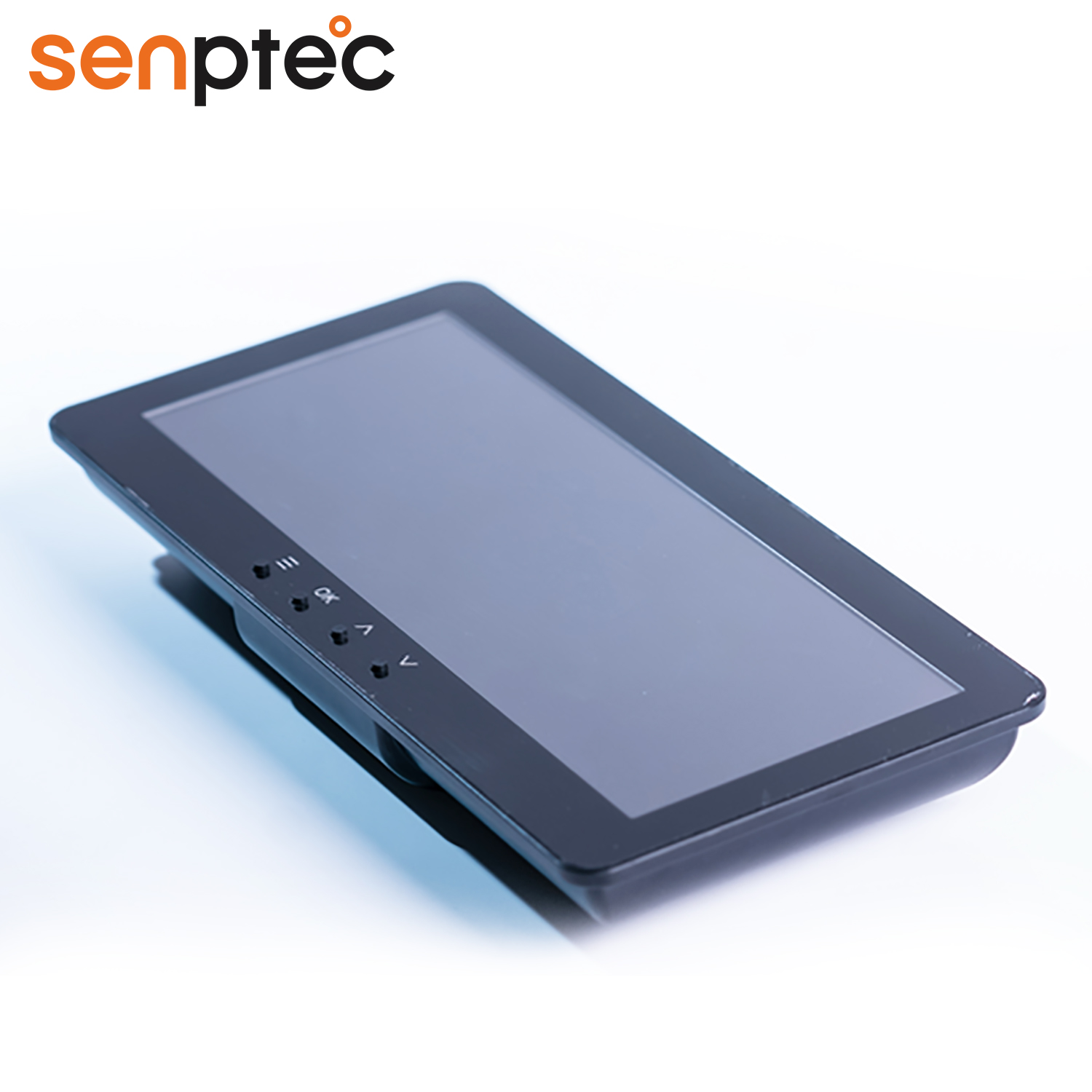

Label | Model | Pin | Function definition | Signal types |
A | tyco 175967-2 | 1 | Switching input | Switching capacity - High and low software configurable, 12V pull-up |
2 | Switching input | Switching capacity - High and low software configurable, 12V pull-up | ||
3 | Switching input | Low input efficiency | ||
4 | Switching input | Low input efficiency | ||
5 | Switching input | Low input efficiency | ||
6 | Power output | 24V load output | ||
7 | Power output | 24V load output | ||
8 | Fuel sensor signal | Fuel sensor - Signal input | ||
9 | Fuel sensor ground wire | Fuel sensor - GND | ||
10 | Fuel sensor 5V power supply | Fuel sensor - Power | ||
11 | Switching input | Switching capacity - High and low software configurable, 12V pull-up | ||
12 | Switching input | Switching capacity - High and low software configurable, 12V pull-up | ||
13 | Switching input | Switching capacity - High and low software configurable, 12V pull-up | ||
14 | Switching input | Switching capacity - High and low software configurable, 12V pull-up | ||
15 | Switching input | Switching capacity - High and low software configurable, 12V pull-up | ||
16 | Switching input | Switching capacity - High and low software configurable, 12V pull-up | ||
17 | Switching input | Switching capacity - High and low software configurable, 12V pull-up | ||
18 | Analog input channel | Analog quantity detection input | ||
19 | Analog input channel | Analog quantity detection input | ||
20 | Analog input channel | Analog quantity detection input | ||
B | tyco 175966-2 | 1 | Speed signal output | Speed of the output |
2 | Speed sensor power supply -12V | Speed sensor power supply -12V | ||
3 | Speed sensor signal | Speed signal input | ||
4 | Speed sensor ground wire | Speed sensor signal - GND | ||
5 | Instrument wake signal | Speed sensor signal -- ground | ||
6 | Instrument power supply BAT24V | CAN instrument power supply (normal fire) | ||
7 | Instrument power supply- ground | CAN gauge wire | ||
8 | Switching input | Switching capacity - High and low software configurable, 12V pull-up | ||
9 | Instrument wake up output | Connect the module to wake up the input | ||
10 | Instrument wake signal | Meter wake up - low effectiveness | ||
11 | Instrument wake signal | Meter wake up - low effectiveness | ||
12 | Instrument wake signal | IGN Awaken -- Highly effective | ||
13 | Instrument wake signal | ACC Awaken -- Highly effective | ||
14 | Switching input | Switching capacity - High and low software configurable, 12V pull-up | ||
15 | Switching input | Switching capacity - High and low software configurable, 12V pull-up | ||
16 | Switching input | Switching capacity - High and low software configurable, 12V pull-up | ||
C | tyco 174047-2 | 1 | CAN1-L-R | CAN network: CAN1-L-R is connected with CAN1-L, and the internal matching resistor is effective |
2 | CAN1-H | |||
3 | CAN1-L | |||
4 | Camera ADAPTS to 12V power output | Camera sensor power supply | ||
5 | ECU Light | Engine status indicator light | ||
6 | ECU Light | Engine status indicator light | ||
7 | ECU Light | Engine status indicator light | ||
8 | ECU Light | Engine status indicator light | ||
9 | ECU Light | Engine status indicator light | ||
10 | ECU Light | Engine status indicator light | ||
11 | CAN2-L-R | CAN network: CAN2-L-R is connected with CAN2-L, and the internal matching resistor is effective | ||
12 | CAN2-H | |||
13 | CAN2-L | |||
14 | Camera signal input | Camera video signal input | ||
15 | Camera signal GND | Camera signal -- Ground (and shielding layer) | ||
16 | ECU Light | Engine status indicator light | ||
17 | ECU Light | Engine status indicator light | ||
18 | Switching input | Low input efficiency | ||
19 | Excitation output | Exciter generator Exciter generator
Exciter generator | ||
20 | Excitation output | Exciter generator |
