Operating voltage 9 to 32V DC(reverse polarity protected)
Operating temperature -40℃ to +85℃(-40°F to +185°F)
Vibration resistance Random：10~500Hz

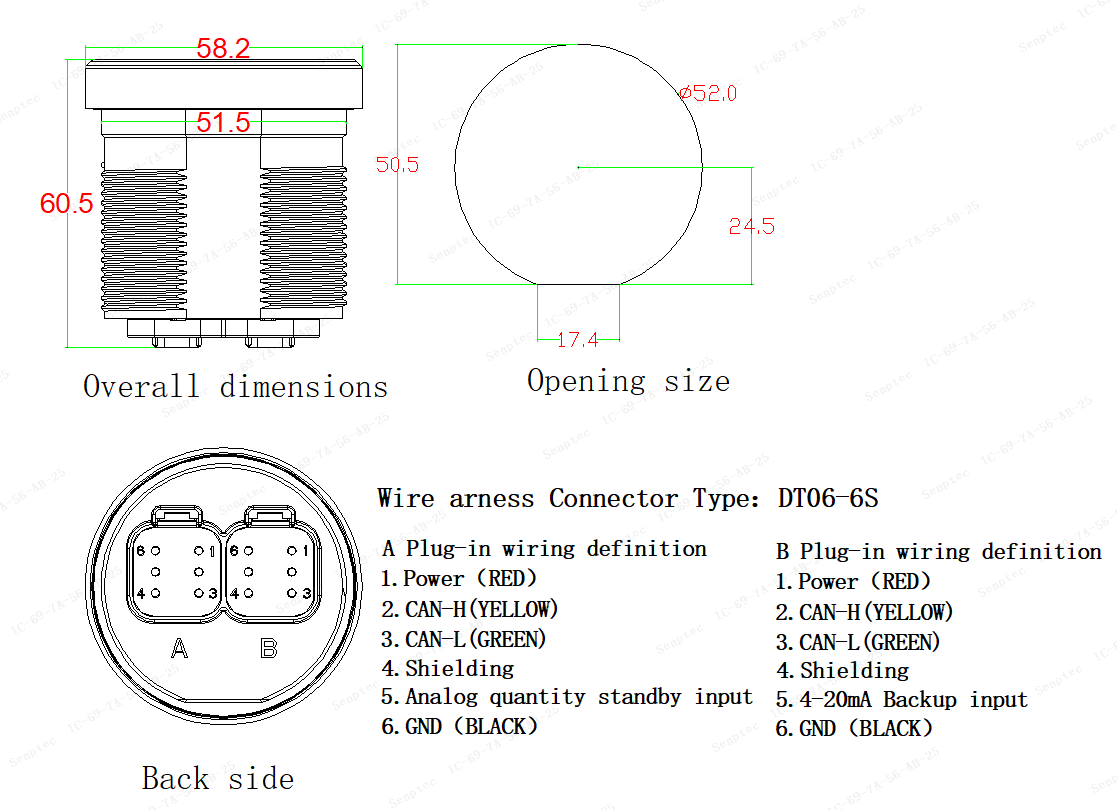

Overall dimensions See below
Viewing Angle 170°
According to the effect Clearly visible in the sunlight
Protection grade IP67

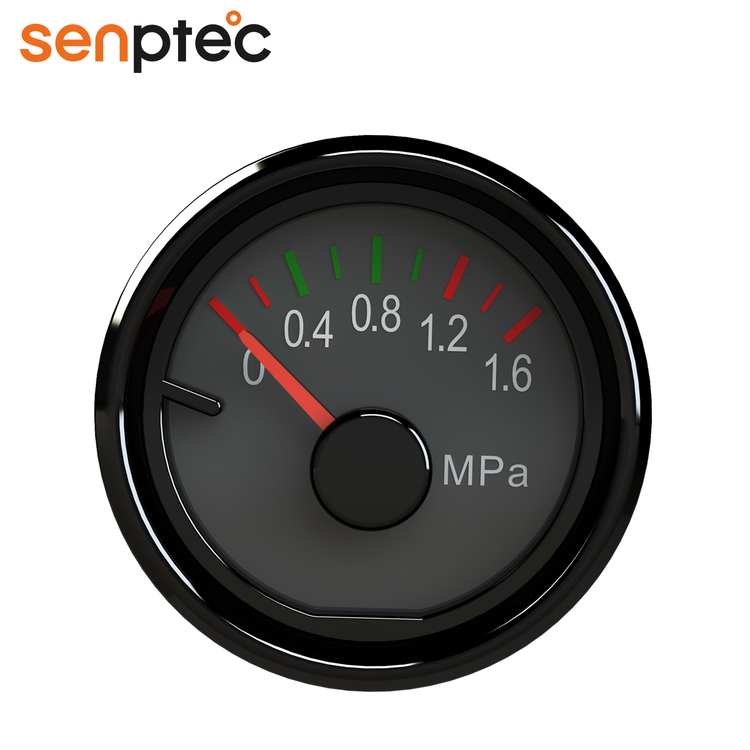

Functional Features
With 1 CAN communication interface, 2 analog input；
Signal comes from a pressure sensor.
Conform to the J1939，Suitable for Cummins, Weichai and other domestic and foreign engines；
Independent research and development, professional automotive components quality assurance.
Typical Applications
Engineering Machinery, Special Vehicles, Sanitation Equipment, Generator Set, etc.
Road and Bridge, Ship, Petroleum(oil), Mining Equipment Industry and Fire Industry, etc.

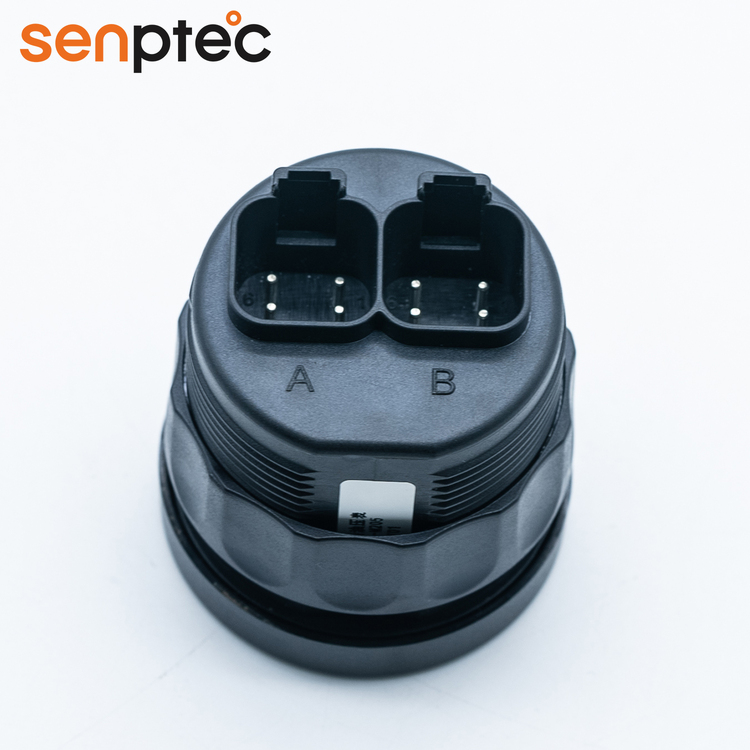

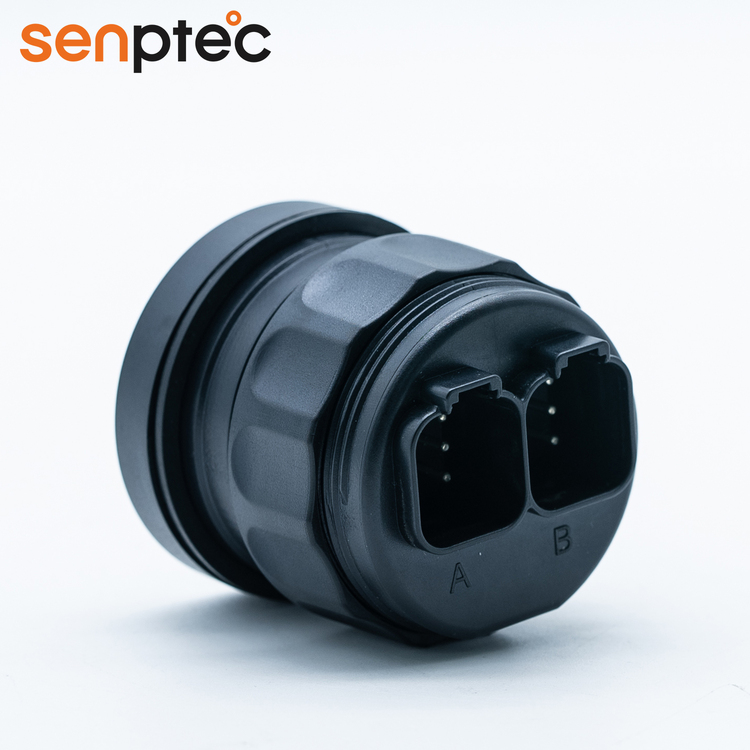

Wiring definition:
pin 1 is the power cord, which needs to be connected to the battery constant fire or the main switch fire of the power supply;
pin 2,3 ,4 are CAN communication line, which is connected to engine ECU after twisted-pair; When the engine is not electronically controlled, the three wires are not connected;
pin 5 is the standby analog input, supporting resistance type, voltage type, 4-20mA sensor and frequency input;
Plug end model: Deutsch DT06-6S;
pin 6 is ground wire, which needs to be connected with wire.
2、Signal Source:
The instrument works preferentially from CAN signal, if there is no CAN signal, it works according to sensor signal, but the customer needs to provide sensor parameters.
