Working voltage DC9~32V
Working temperature -40℃~85℃
Vibration resistance In line with 10 ~ 500Hz sweep vibration standards
Overall dimensions See below
Viewing Angle 170°
According to the effect Clearly visible in the sunlight
Protection grade IP67
Circuit protection With positive and negative polarity connection and reverse protection

Get A Quote
Contact Us

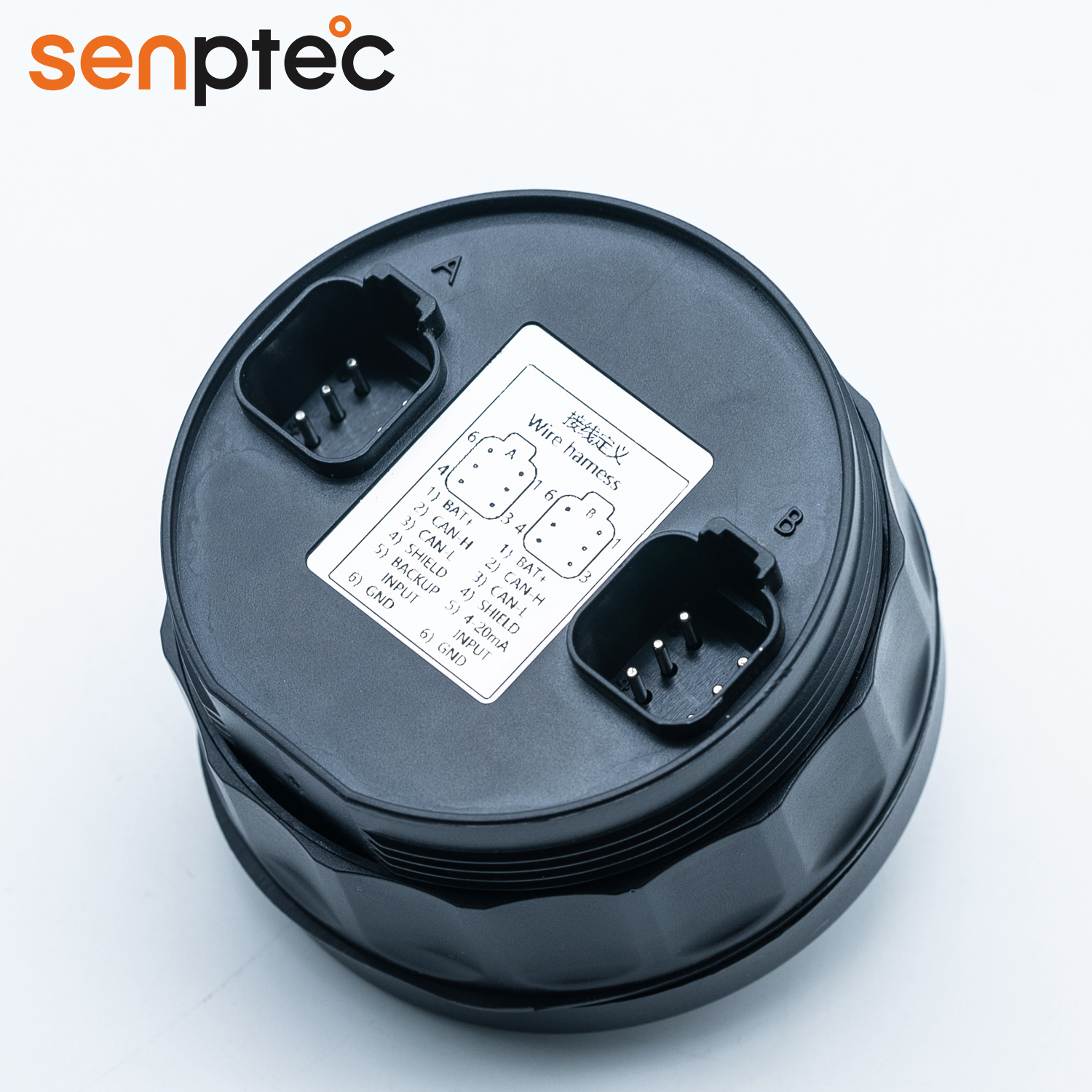

1、Wiring Instructions:
 pin 1 is the power cord, which needs to be connected to ACC or ON switch;
 pin 2,3 are CAN communication line, which is connected to engine ECU after twisted-pair; When the engine is not electronically controlled, the three wires are not connected;
 pin 4 is the shield line of CAN line;
 pin 5 is analog/frequency input;
 Plug end model:Deutsch DT06-6S;
 pin 6 is ground wire, which needs to be connected with wire.
2、Signal Source:
The instrument works preferentially from CAN signal, if there is no CAN signal, it works according to sensor signal, but the customer needs to provide sensor parameters.

Functional Features

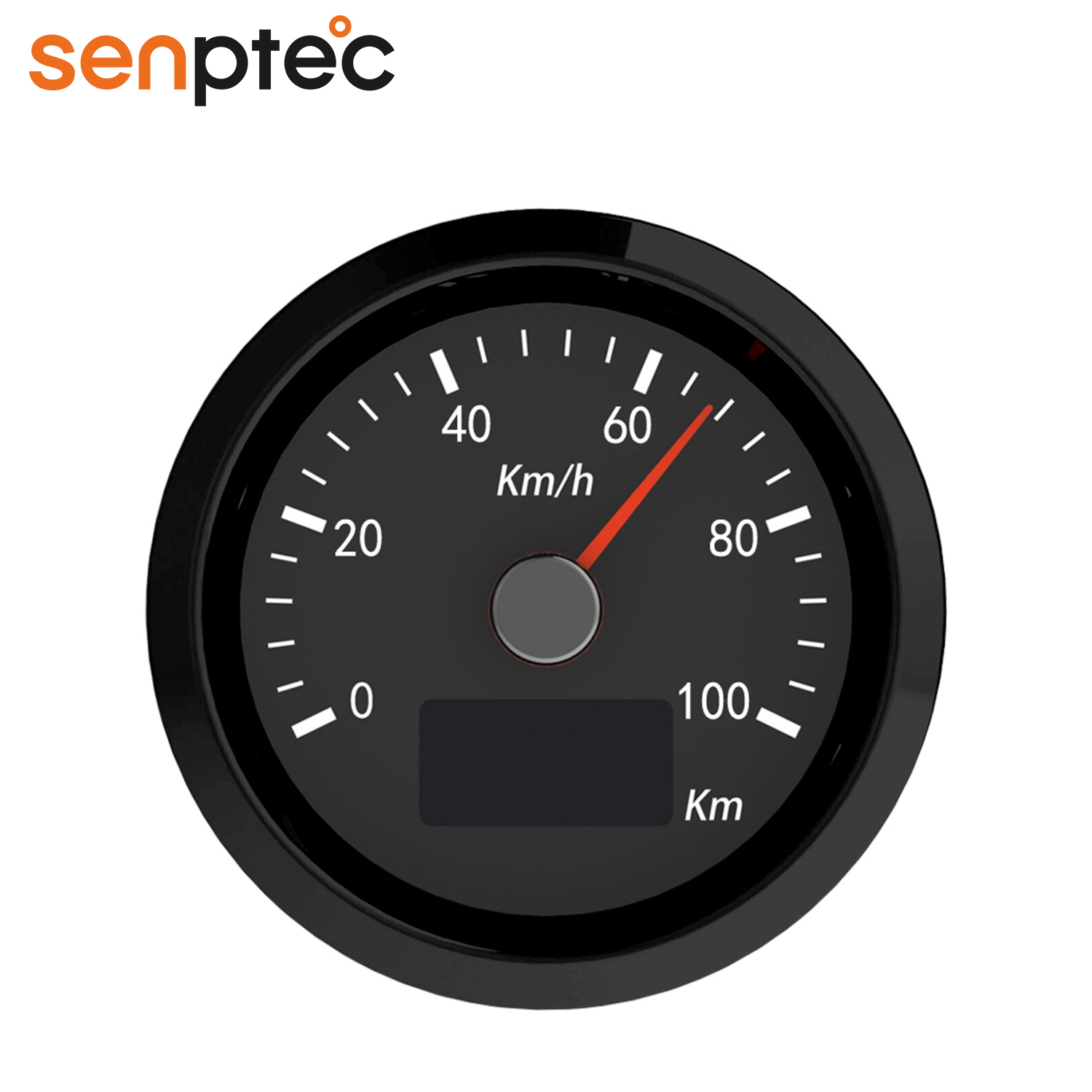

 With 1 CAN communication interface, 2 analog input;
 LCD display mileage, range and speed ratio can be customized according to customer requirements;
 Signal comes from engine CAN message or speed sensor, CAN message is preferred;
 Conform to the J1939,Suitable for Cummins, Weichai and other domestic and foreign engines;
 Independent research and development, professional automotive components quality assurance.
Typical Applications
 Engineering Machinery, Special Vehicles, Sanitation Equipment, Generator Set, ETC.
 Road and Bridge, Ship, Petroleum(oil), Mining Equipment Industry and Fire Industry, ETC.
