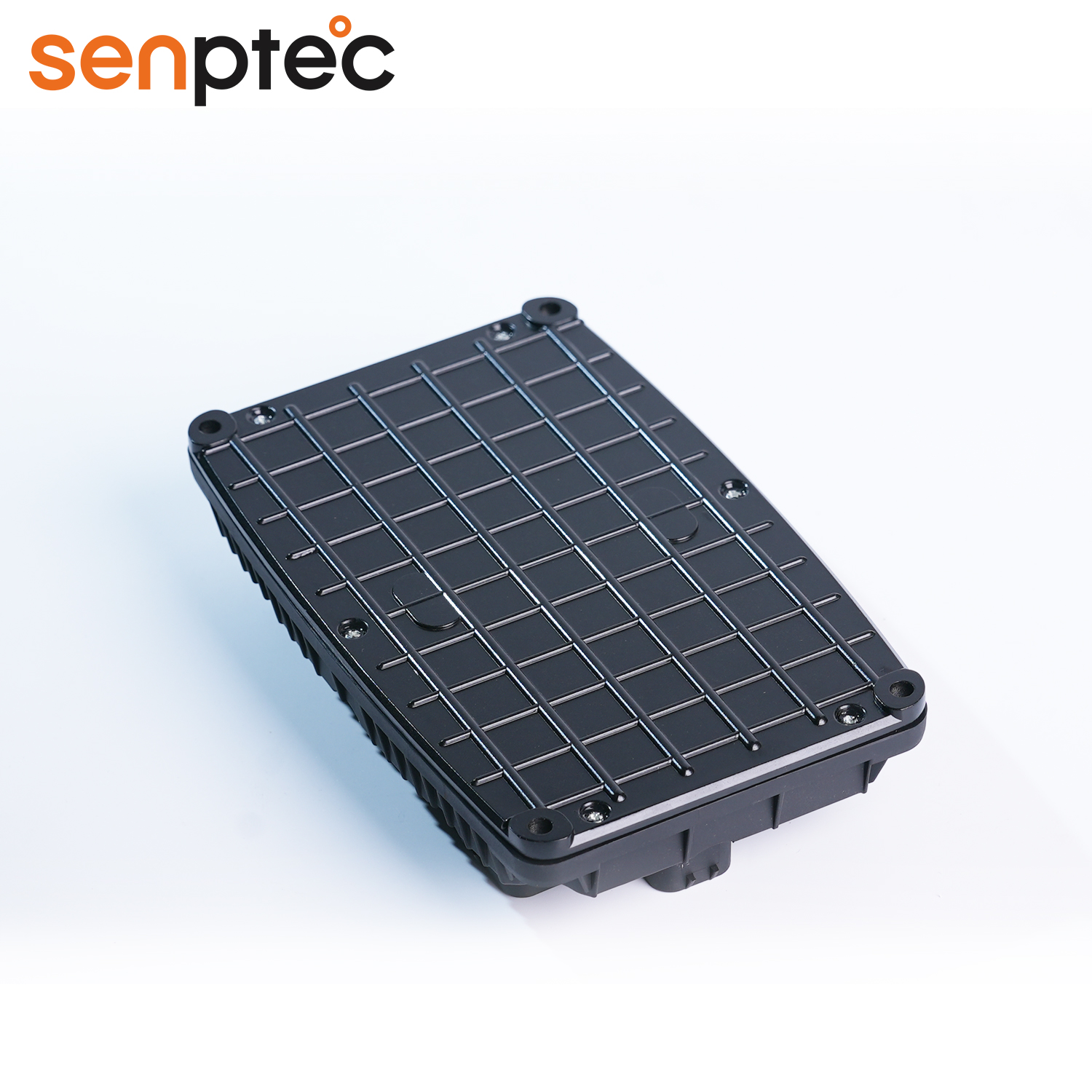

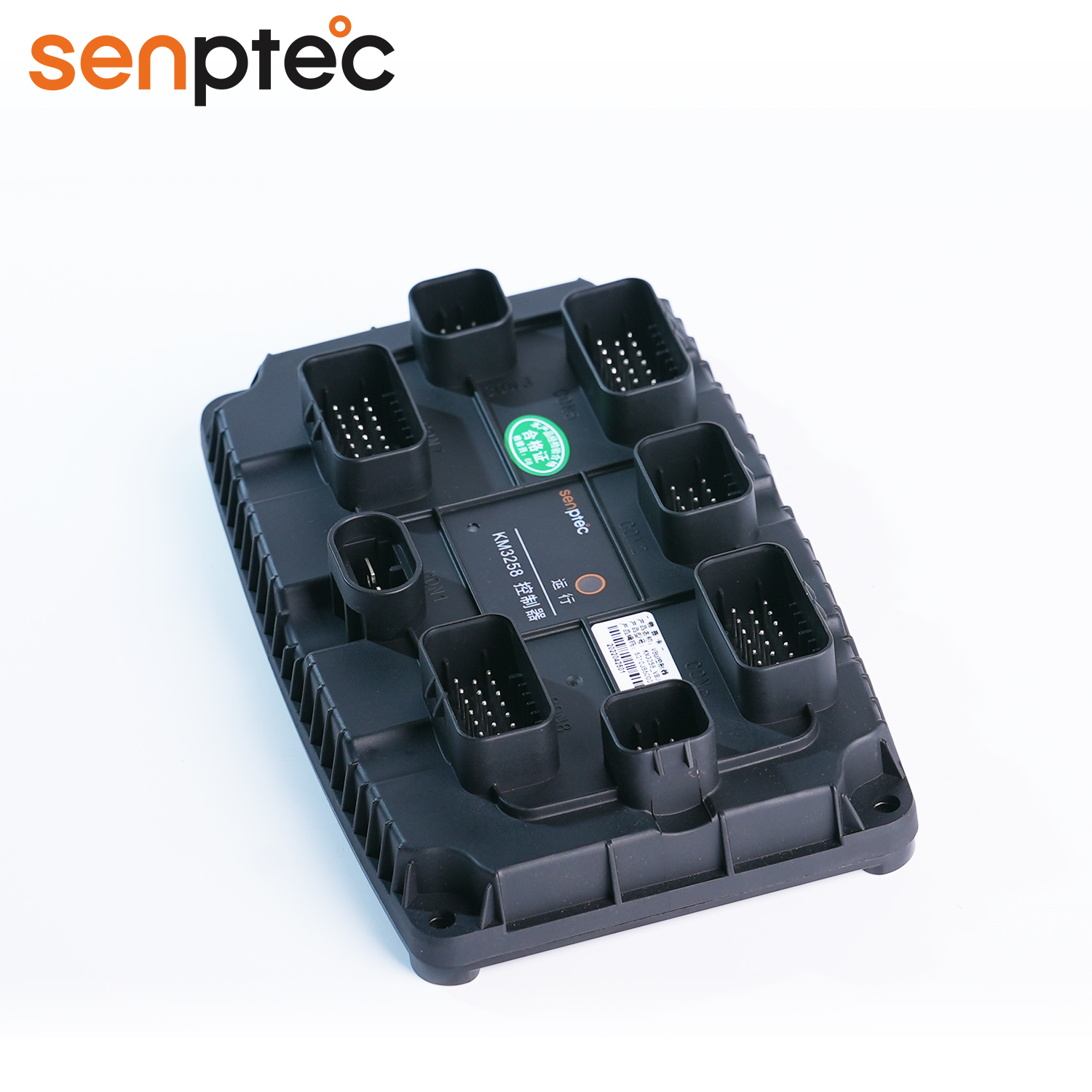

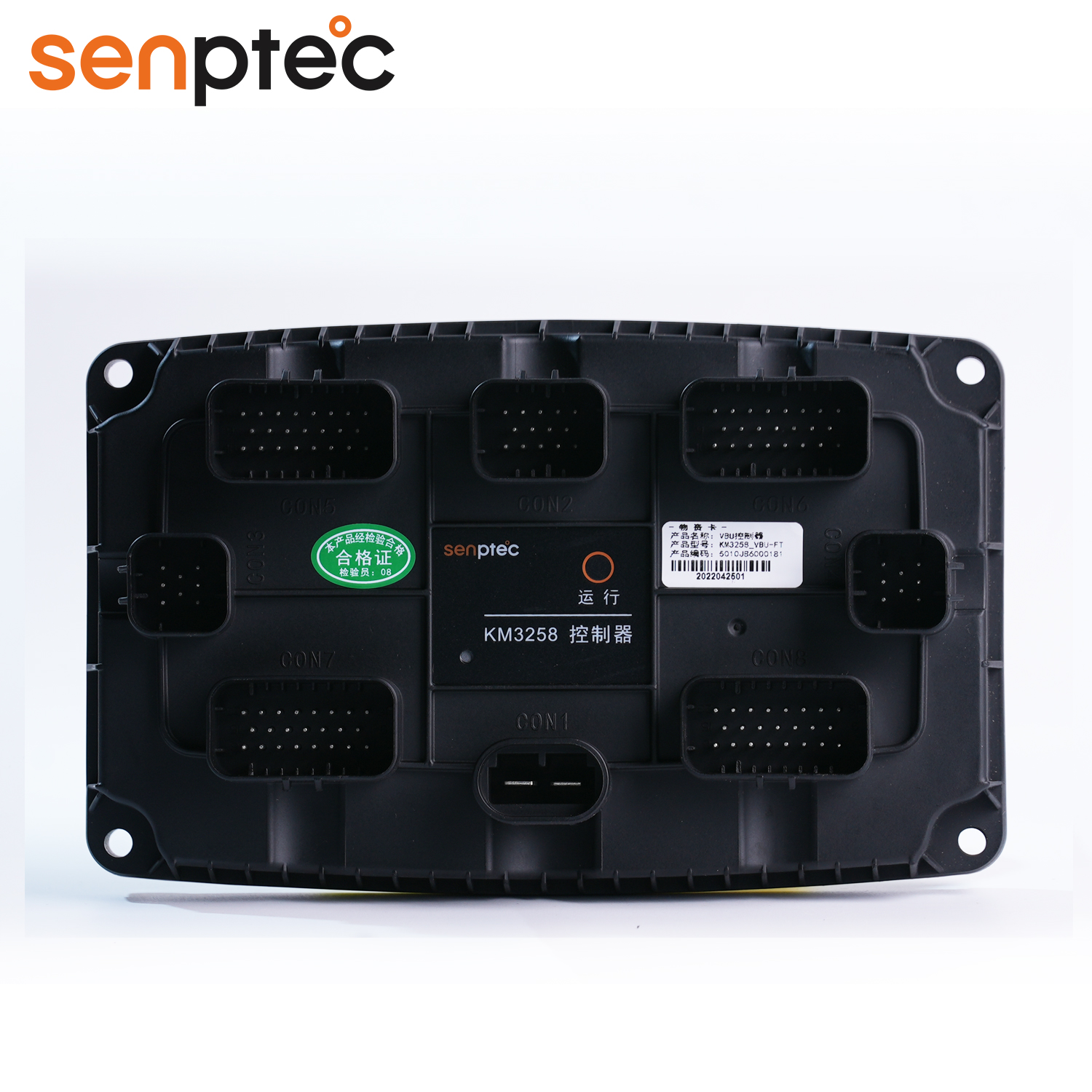

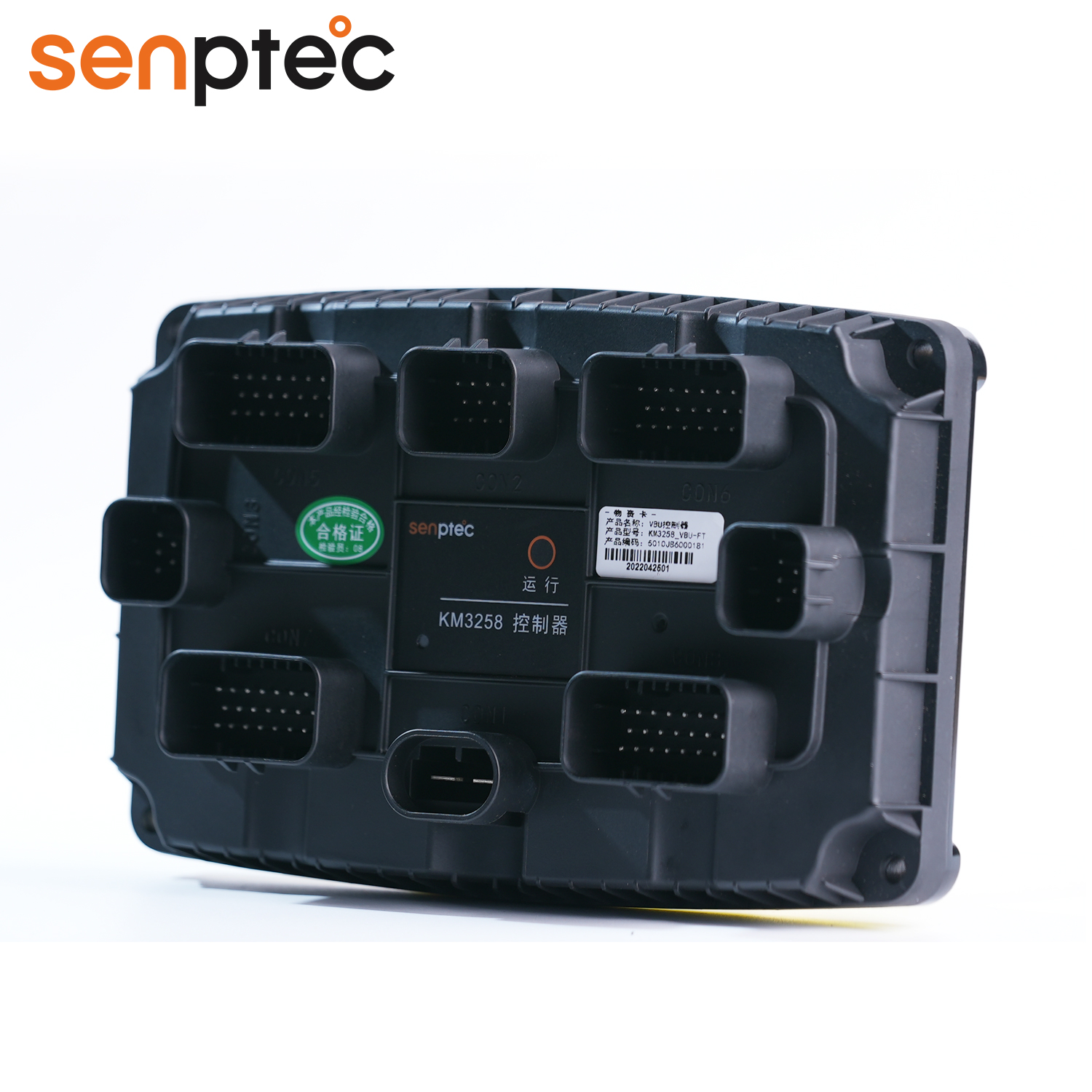

Senptec SPDU KM3258

KM3258 is a smart power distribution unit



Be different from classic Power Distribution Unit, KM3258 is definitely upgraded by adopting semiconductor chips instead of classic fuse and relays for power supply management and body control, it realized digital management of low-voltage wiring, which can be transmitted to the cloud and background in real time data delivery.

Application Senarios: For 12V and 24V low-voltage power distribution system.

Get A Quote
Contact Us

Advantages

1. Compliant with 12V & 24V applications

2. Multiple I/O interfaces that can easily be adapted to vehicle architectures

3. Improved on-board diagnostic functionality using reliable, over current and short circuit detection,

along with thermal overload detection.

4. New load switching technology with precise control of current, dedicated to wide range of loads such

as electrical motors, wipers, bulb/xenon/LED lamps, sensors, etc.

5. E-MARK R10 approved

Parameters

Dimensions210L*132W*46H mm
Supply VoltageDC 932V
Operating temperature-40~85
Static Current3mA
Digital input58 channels
Output
15A4 channels
10A12 channels
5A16 channels
CAN interface3 channels

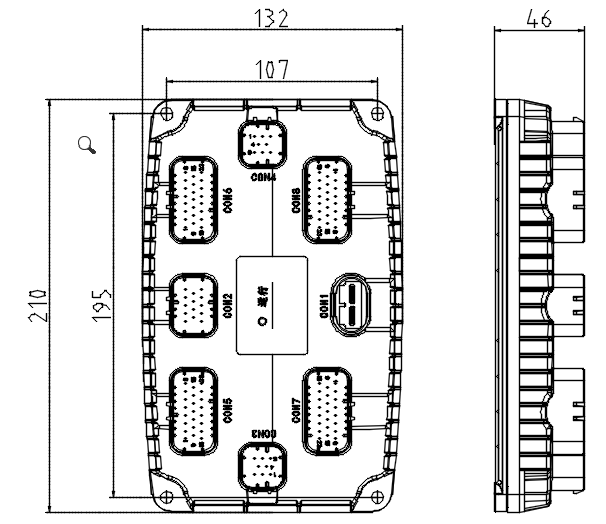

Dimensions

Smart Power Distribution Unit KM3258
Smart Power Distribution Unit KM3258
