Senptec Instrument Panel YB0704

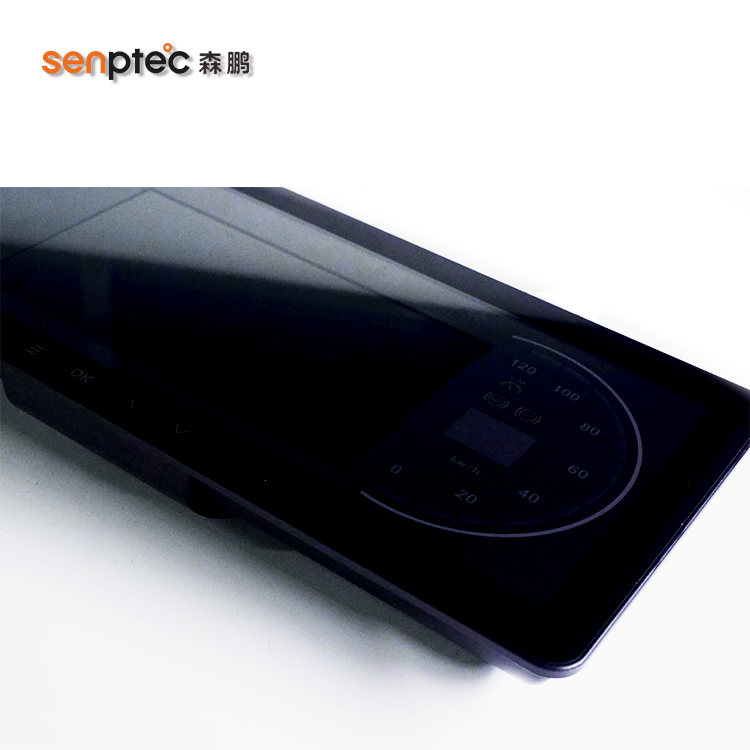

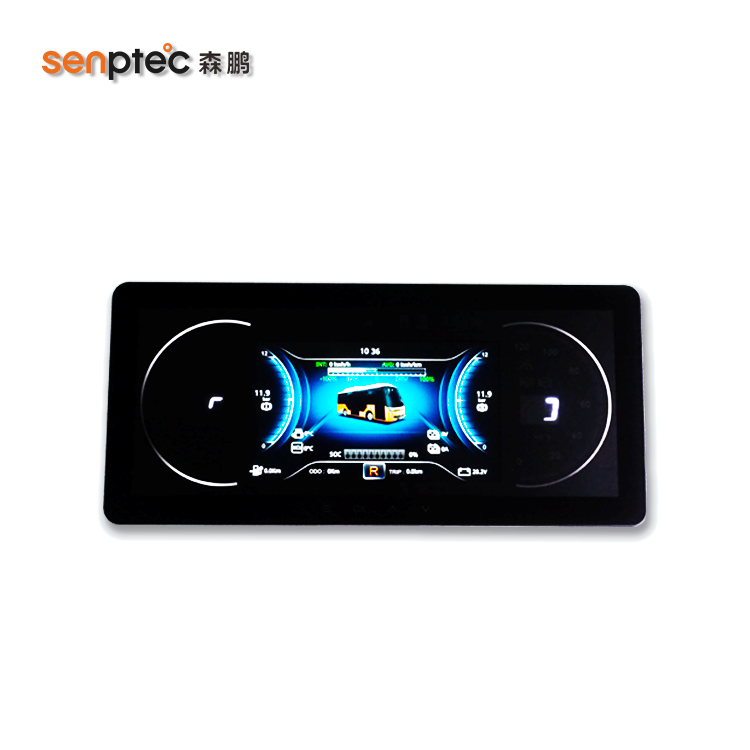

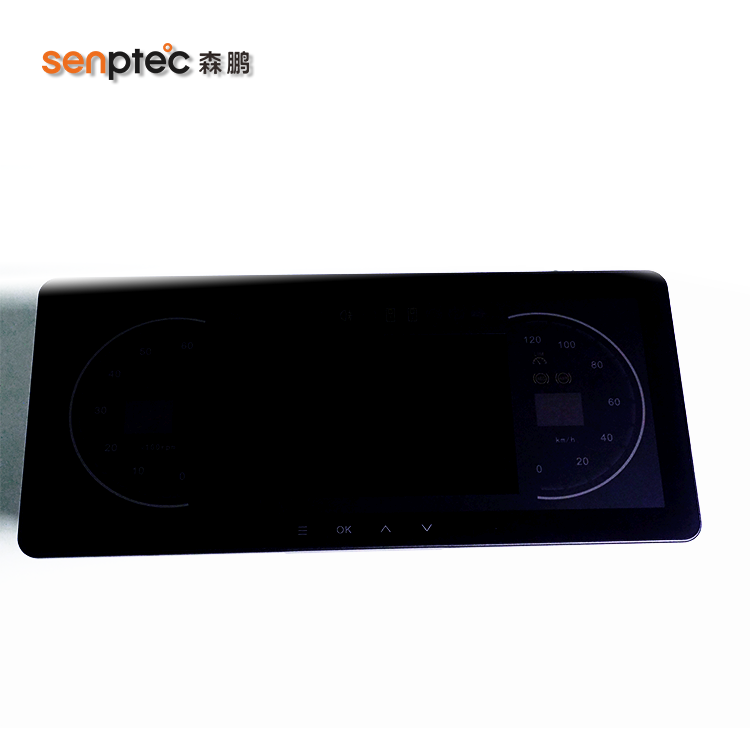

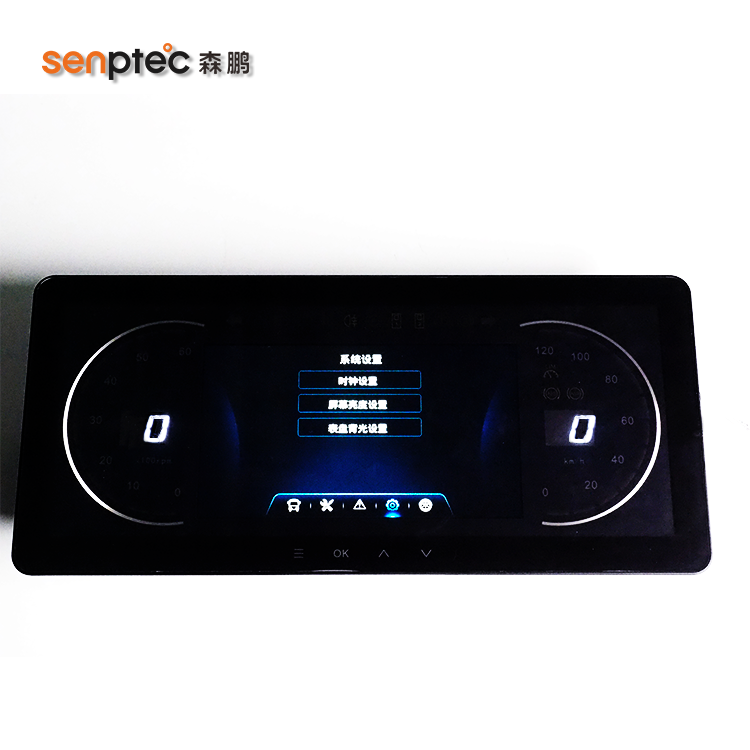

YB0704 instrument dashboard



Senptec provides a complete line of human-machine interface solutions that eliminate the need to rely on inaccurate and outdated mechanical and electrical gauges. By using analog and digital technology, Senptec’s instruments provide more functionality, flexibility, and ease of installation than any other existing solutions on the market.

Application scenario: Public transportation, coaches and buses, construction vehicles, varies road and off-road vehicles.

Get A Quote
Contact Us

Advantages

7 inch TFT

Highly customized platform (include but not limited UI design, icons, dial face, number of gauges…)

Dedicated graphics processor with animation display

Up to 54 Virtual Alarm Light

12 fixed LED indicators

Compliant with SAE J1939

Parameters

Dimensions 330.5L*150.5W*38H mm
Supply Voltage DC16~32V
Operating temperature -30~75
Resolution ratio 1024*600
Static Current 2mA
OS RTOS
Input digital 28 , analog 4
Output 2 channels@1A
CAN interface 3 channels
Wake up 5 digital inputs

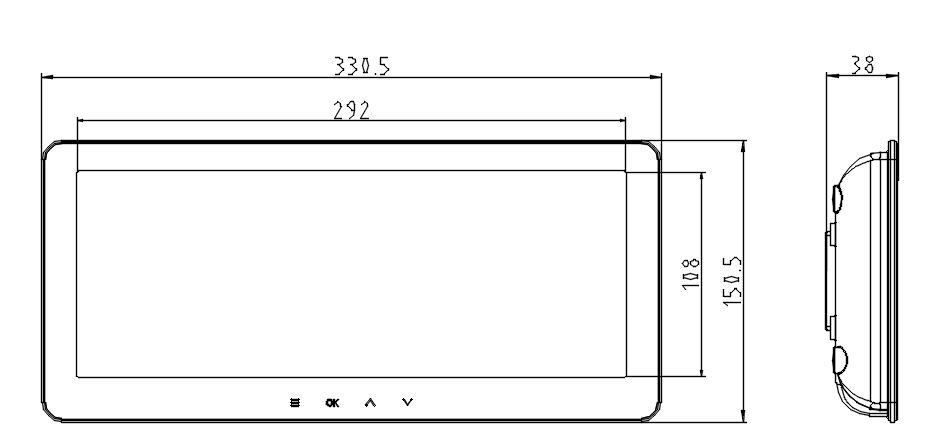

Dimensions

7’inch LCD instrument YB0704
7’inch LCD instrument YB0704
