Advantages:
With CAN communication interface;

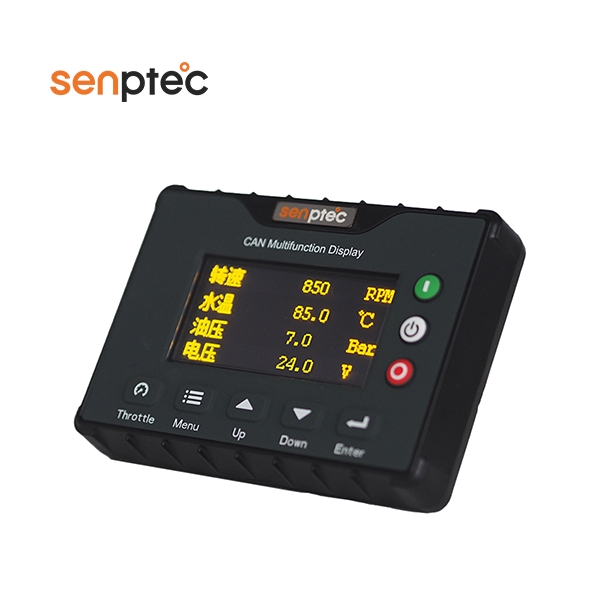

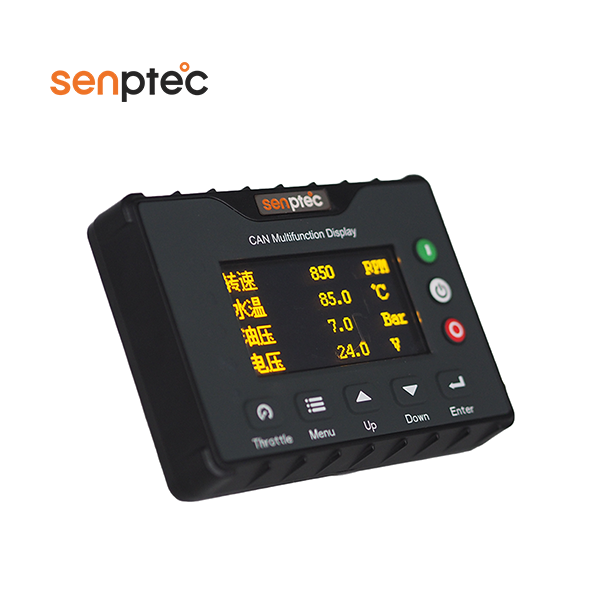

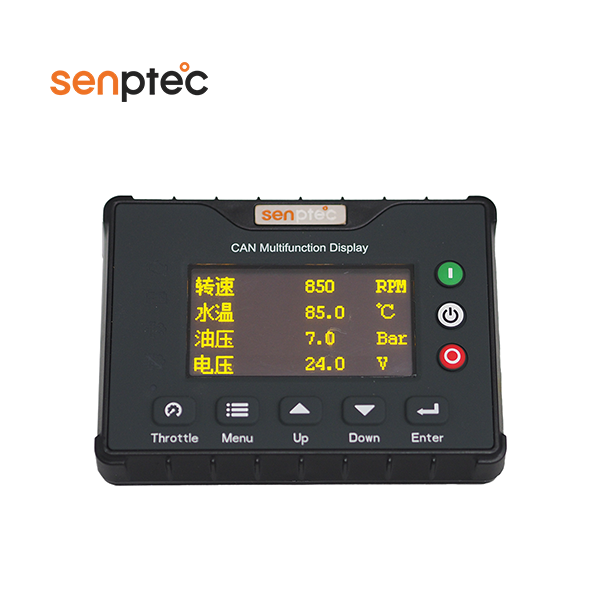

Display engine speed, water temperature, oil pressure, voltage, cumulative time, fuel level, and engine diagnostic, function displayed is customizable;
3 channels of analog input, 3 channels of high-level output;
lntegrated indicator lights, start, stop, and throttle functions,which can be controlled by buttons to increase or decreasespeed;
Compliant with SAE J1939, for electronic controlled engines with Euro Tire lll or above;
Wide temperature range OLED LCD display, be able to working at-45C
Parameters:
| Operating Voltage | DC9~32V |
| Viewing Angle | 170° |
| Operating Temperature | -35℃~80℃ |
| Display Effect | Clear Visibility In Sunlight |
| Dimensions | 118L*85W*51Hmm |
| Protection Level | Front IP66 |
| Vibration Resistance | 10-500Hz |
| Circuit Protection | Reverse Polarity Protection |
Dimensions:
