Die-cast aluminum housing with a high waterproof rating of up to IP67
Built-in CAN communication interface for remote monitoring of all data
Power supply and DC-DC input in parallel with reverse power protection function
High-current terminal blocks with temperature detection and protection against overheating and overload
Current and temperature detection functions, as well as overload protection, for all input channels
Imported high-power chips that are highly responsive, accurate in current limiting, and reliable with a long lifespan
Programmable settings for protection current, protection time, and control logic for all channels, offering flexible control options.
Multiple input & output capabilities
Built in diagnostic & protection capabilities
Available for 24 V and 12 V
E-MARK R10

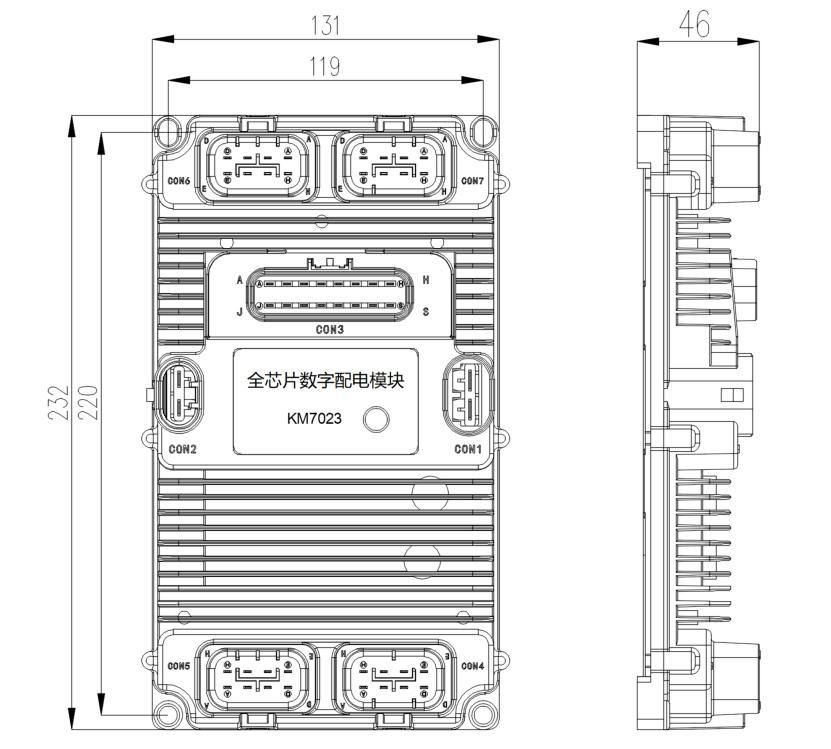

| Dimensions | 232*131*46mm |
| Supply Voltage | DC18～32V |
| Operating temperature | -30℃~85℃ |
| Static Current | ＜3mA |
| Protection degree | IP66 |
| Digital input | 15 channels |
| Output | 23 channels |
| CAN interface | 2 channels |
