Advantages
1. Compliant with 12V & 24V applications
2. Multiple I/O interfaces that can easily be adapted to vehicle architectures
3. Improved on-board diagnostic functionality using reliable, over current and short circuit detection,
along with thermal overload detection.
4. New load switching technology with precise control of current, dedicated to wide range of loads such
as electrical motors, wipers, bulb/xenon/LED lamps, sensors, etc.
5. E-MARK R10 approved
Parameters
| Dimensions | 317L*251W*48H mm |
| Supply Voltage | DC 9～32V |
| Operating temperature | -40℃~85℃ |
| Static Current | ＜3mA |
| Digital input | 10 channels |
| Output | |
| 150A | 1 channels |
| 50A | 8 channels |
| 15A | 34 channel |

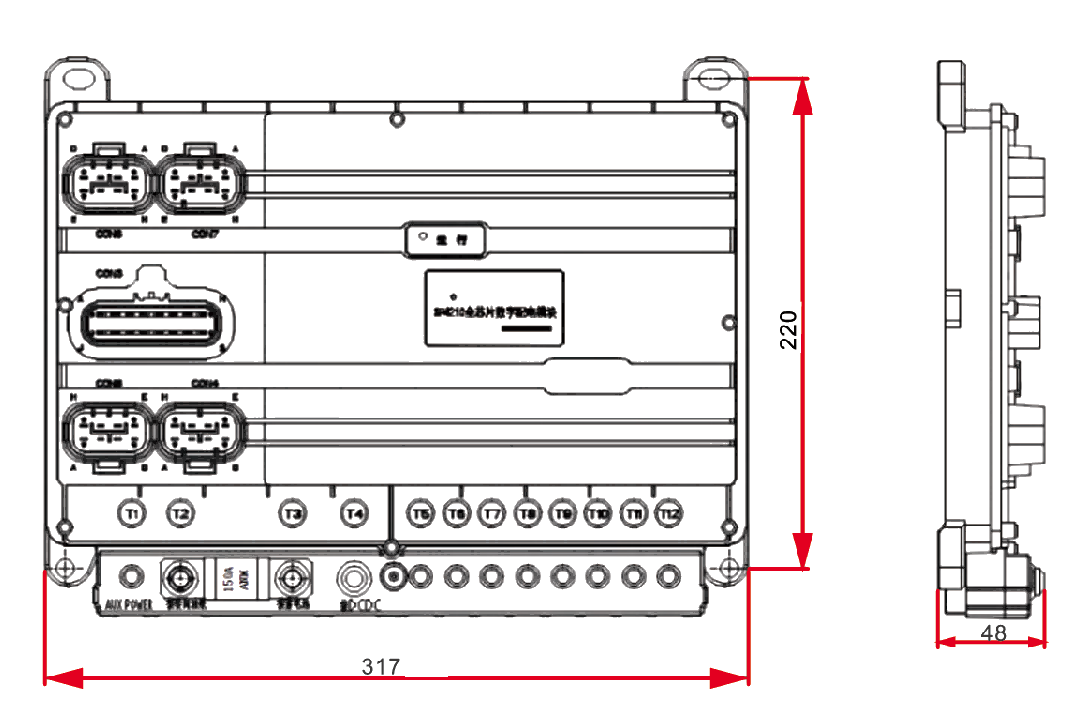

Dimensions
