Advantages

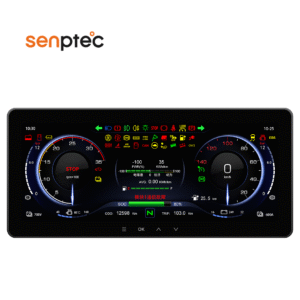

12.3 inch automotive-grade LCD screen, resolution ratio 1920*720
6-channel CAN,1-channel LIN,2-channel video input,10-channelwake-up input(6 channels high,4 channels low),28-channeldigital input(6 channels configurable,18 channels active low,4channels active high),4-channel analog input(voltage/resistor),1-channel frequency input,1-channel 5V sensor output,1-channel12V sensor output,1-channel frequency output,1-channel modulewake-up output,2-channel excitation output,2-channel power output
Display instrumentation parameters of the engine or electricvehicle with animation and text.Integrate various indicator lights.switches and alarm information of the vehicle
Brightness automatically adjustable
Self-developed SenpGraphix graphical tool, enabling no-codeindependent programming of instruments
Comply with the E-Mark EU certification
Parameters
| Dimensions | 394.6L*207.8W*73.8H mm |
| Supply Voltage | DC16~32V |
| Operating temperature | -30℃~85℃ |
| Resolution ratio | 1920*720 |
| Static Current | ＜5mA |
| OS | RTOS |
| Weight | ≤2.2kg |
| Product Level | Front IP54 |
| CAN interface | 6 channels |
| LIN interface | 1 channels |
Dimensions
